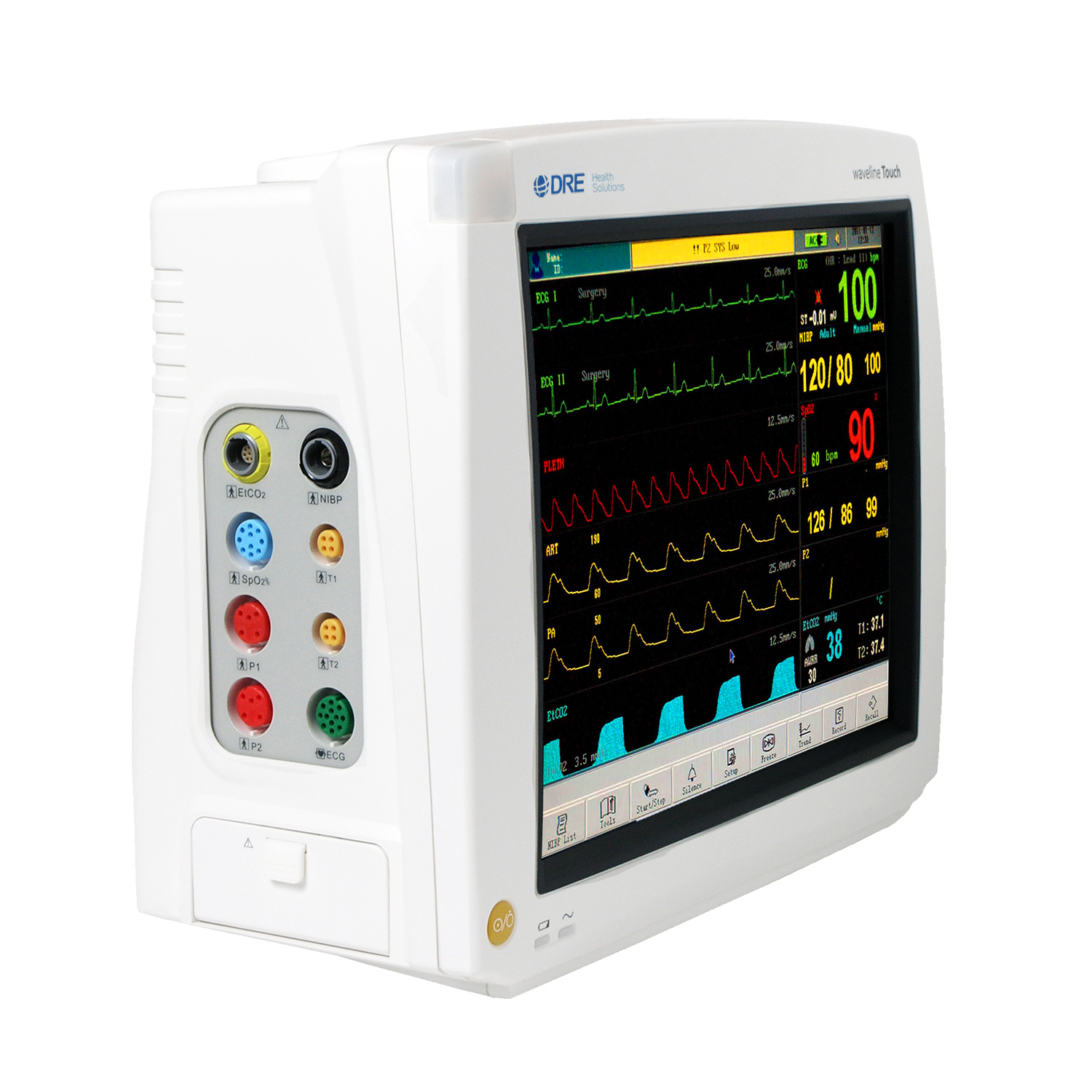

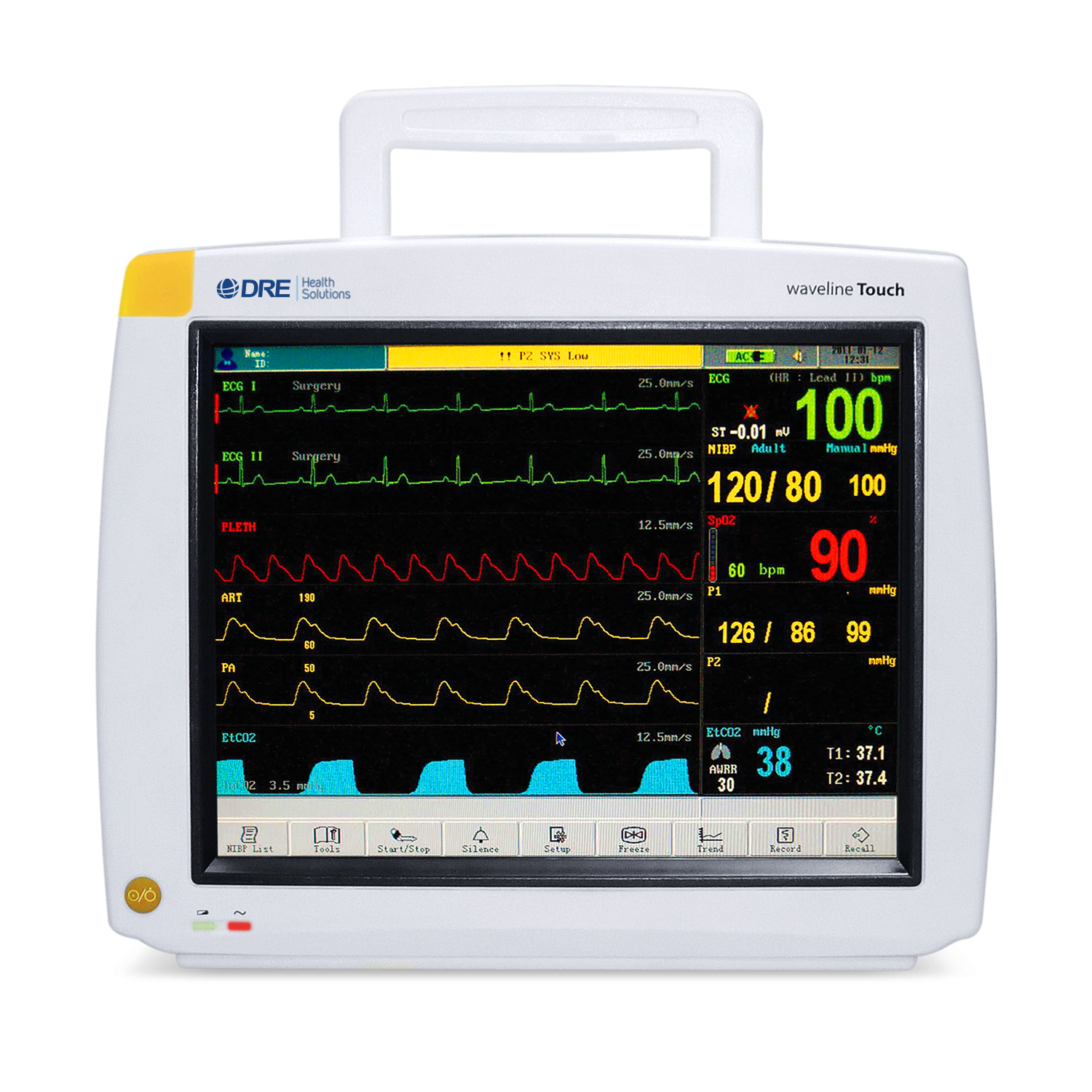

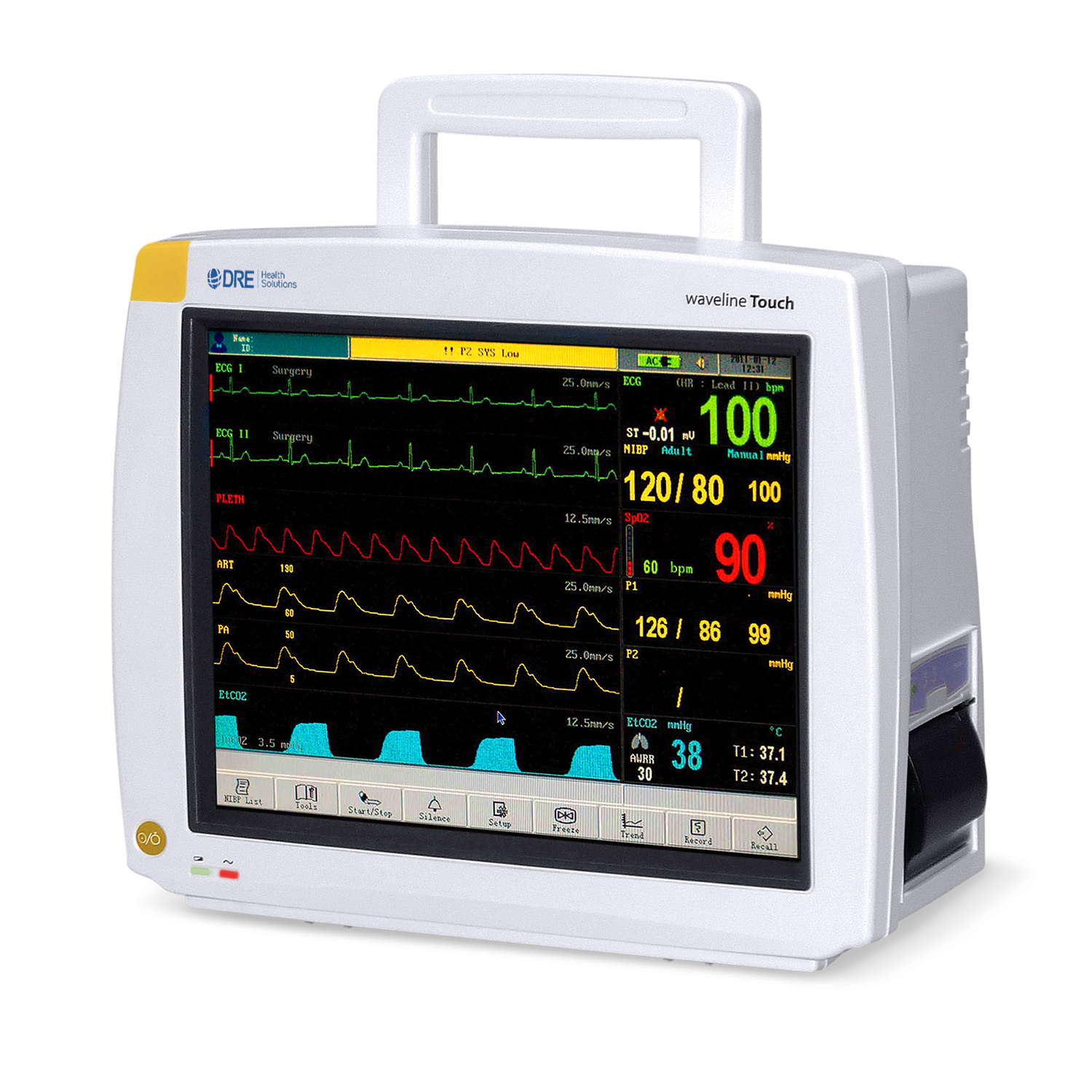

DRE Waveline Touch Patient Monitor with Touch-Screen
The Waveline Touch gives you 72 hours of trend data analysis and ST segment monitoring on a 12.1-inch touch display that actually responds when you need it to.
Quality Management
Facility & Processes
Biomedical Technicians
About the DRE Waveline Touch Patient Monitor with Touch-Screen
The Waveline Touch gives you 72 hours of trend data analysis and ST segment monitoring on a 12.1-inch touch display that actually responds when you need it to. Unlike basic bedside monitors, it handles multi-lead ECG with real-time ST analysis while storing three full days of patient data for pattern recognition.
Built-in thermal recording means you won’t hunt for a separate printer when documentation matters. The short version: it networks wirelessly or wired to your central station, calculates drug doses on-screen, and runs on battery backup when transport’s required. Optional dual IBP and EtCO2 modules expand monitoring without adding another device to the room.
Key Features
- 12.1″ color TFT touch-screen display
- Multi-lead ECG monitoring with ST segment analysis
- 72 hours trend data analysis
- Built-in thermal recorder
- Networkable via wired or wireless connection
- Configurable waveform colors and adjustable volume/sounds
- Optional dual IBP and EtCO2 modules
- Battery operation with built-in rechargeable battery
- OxyCRG dynamic view display
- Drug dose calculation capability
- Multi-lingual settings
Specifications for DRE Waveline Touch Patient Monitor with Touch-Screen
Contents
- Recorder: Built-in thermal array, 2 channels
- ECG Input: 3-lead ECG cable and standard AAMI line (optional 5-lead)
Capacity
- Recorder Paper Width: 50 mm
- Recorder Record Width: 48 mm
- Recorder Speed: 25 mm/s, 50 mm/s
Materials
- Chassis Material: Stainless Steel
Compatibility
- Network: Wired or wireless central monitoring system
Intended Use
- Patient Types: Neonatal, Pediatric, Adult
Illumination
- Display: 12.1″ color TFT, Touch Screen, Resolution 800 × 600 pixels
Performance
- Trace: 4, 6 or 8 waveforms
- ECG Leads Available: I, II, III, aVR, aVL, aVF, V1-V6
- HR Display Range: 30-300 bpm
- HR Accuracy: ±1% or ±1 bpm
- Trend Time: 72 hours
NIBP
- Technology: Automatic oscillometric (Suntech)
- Cuff Inflating Range: 0-300 mmHg
- Measuring Period (AVE): <40 s
- Modes: Manual, Auto, STAT
- Measuring Interval in Auto Mode: 2 min – 4 hrs
- Pulse Rate Range: 30-250 bpm
- Measuring Range (Adult/Pediatric): SYS 40-250 mmHg, DIA 15-200 mmHg
- Measuring Range (Neonate): SYS 40-135 mmHg, DIA 15-100 mmHg
- Accuracy: Pressure Maximum Mean Error ±5 mmHg; SD up to 8 mmHg
- Overpressure Protection: Adult 280 mmHg; Neonatal 150 mmHg
SpO2
- Technology: Masimo SET
- Measuring Range: SpO2 1-100%, PR 25-240 bpm
- SpO2 Accuracy (Adult/Pediatric, non-motion): 70-100% ±2%
- SpO2 Accuracy (Neonate, non-motion): 70-100% ±3%
- PR Accuracy (non-motion): 25-240 bpm ±3 bpm
- Modes: Averaging 2,4,8,10,12,14,16 s; Sensitivity Normal/APOD/Maximum
TEMP
- Range: 25°-50° C
- Accuracy: ±0.2° C (25.0°-34.9° C), ±0.1° C (35.0°-39.9° C), ±0.2° C (40.0°-44.9° C), 0.3° C (45.0°-50.0° C)
- Resolution: 0.1° C
- Channels: 2
RESP
- Method: RA-LL impedance
- Range: 0-120 rpm
- Accuracy: ±3 rpm
- Sweep Speeds: 12.5 and 25 mm/s
IBP (Optional)
- Channels: 2
- Measurement Range: -10 to 300 mmHg
- Resolution: 1 mmHg
- Accuracy: ±1 mmHg or ±2%, whichever is greater
- Transducer Sites: ART, PA, CVP, RAP, LAP, ICP
EtCO2 (Optional)
- Sampling Mode: Sidestream
- Technology: NDIR single beam, dual wavelength
- CO2 Range: 0-150 mmHg
- CO2 Resolution: 0.1 mmHg (0-69 mmHg); 0.25 mmHg (70-150 mmHg)
- CO2 Accuracy: 0-40 mmHg ±2 mmHg; 41-70 mmHg ±5% of reading
- Respiration Rate Range: 2-150 bpm; Accuracy ±1 breath
- Response Time: <3 seconds
Power & Environment
- AC Power: 100-240 VAC, 50/60 Hz, <150 VA
- Battery: Rechargeable Lead-Acid; Operating time ~1 hour under normal condition; ~10 minutes after first low-battery alarm
- Operating Temperature: 5°-40° C
- Storage Temperature: -20° C
Sizes & Weight
- Weight: 5 kg
- Height: ~11 inches
- Depth: ~6-1/5 inches
- Width: ~12 3/5 inches
