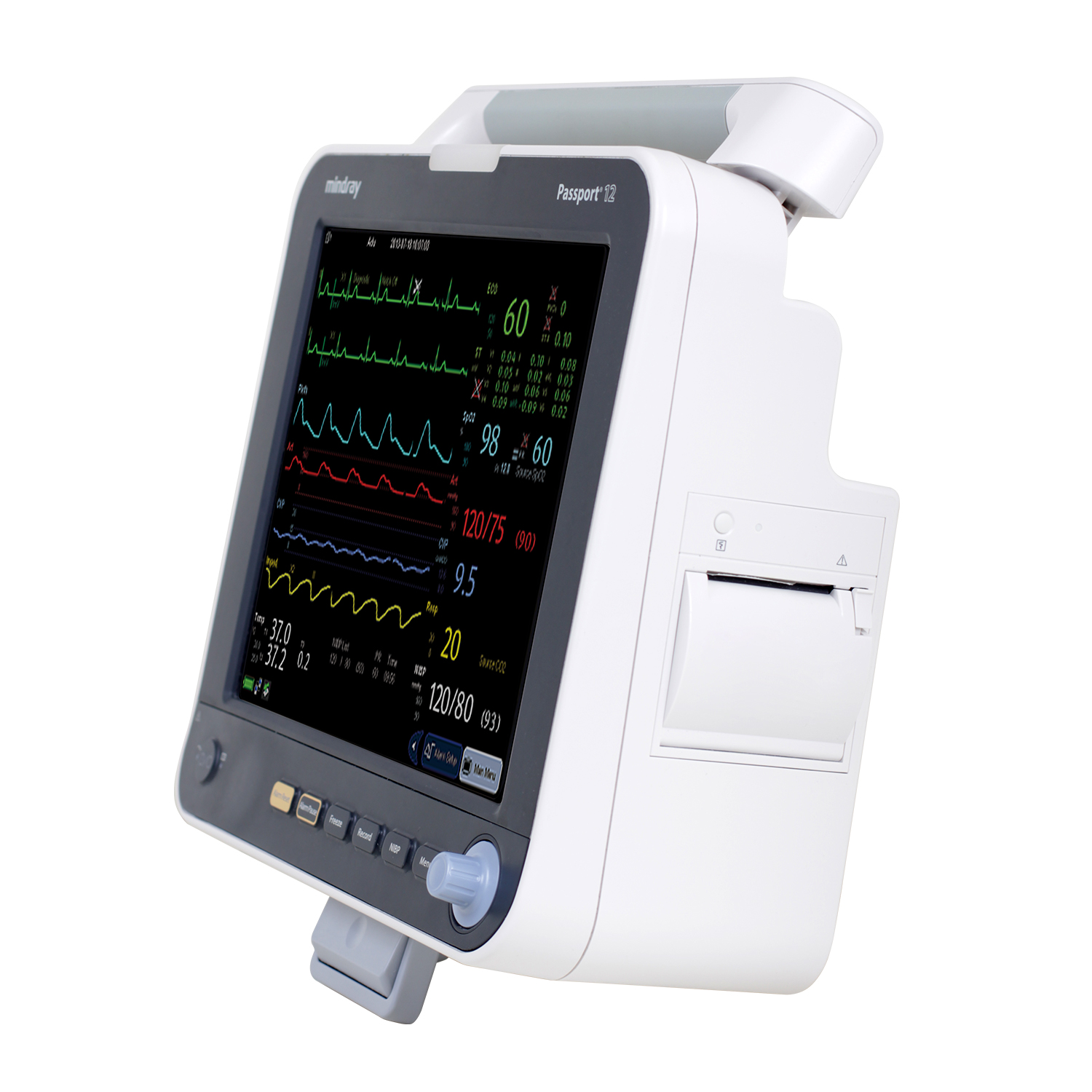

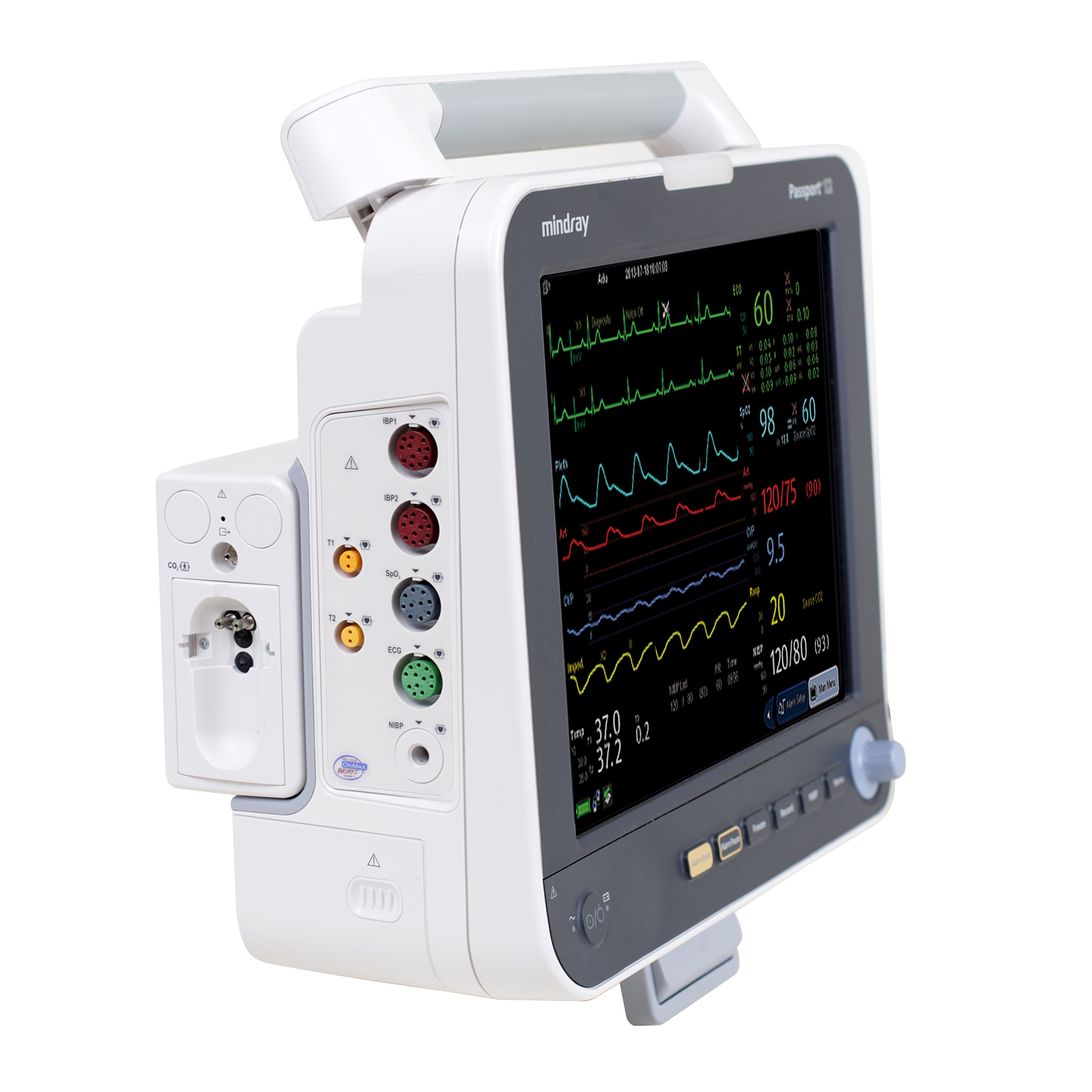

Mindray Passport 12 Patient Monitor
The Mindray Passport 12 gives you full multi-parameter monitoring in a package that actually moves with your workflow.
Quality Management
Facility & Processes
Biomedical Technicians
About the Mindray Passport 12 Patient Monitor
The Mindray Passport 12 gives you full multi-parameter monitoring in a package that actually moves with your workflow. Unlike fixed bedside units, this portable system maintains continuous physiological data whether you’re transporting between units or working at bedside.
You get comprehensive monitoring with 3- or 5-lead ECG, Masimo SET SpO2, dual IBP channels, NIBP, respiration, and temperature in one compact unit. The integrated recorder captures critical events and waveforms without external devices, while BeneVision Central Station connectivity keeps your data flowing to existing hospital networks. Worth noting: the optional wireless capability eliminates cable management during transport.
At 10 pounds with dual lithium batteries, it’s built for actual portability. The ergonomic handle and multiple mounting options work whether you’re rolling it on a cart or carrying it to emergency situations.
Key Features
- 12-inch high-resolution color touchscreen with up to 8 simultaneous waveforms
- Integrated recorder for event and waveform documentation
- BeneVision Central Station connectivity with EMR integration via eGateway
- Defibrillator synchronization capability
- Optional Nellcor OxiMax SpO2 and wireless connectivity
- Modular parameter expansion for future needs
Specifications for Mindray Passport 12 Patient Monitor
Contents
- Standard Parameters: 3- or 5-lead ECG; Masimo SET SpO2; 2 IBP; NIBP; RESP; TEMP; Integrated recorder
Sizes
- Monitor Size: 10.9 H x 5.4 D x 12.7 W in
Weight
- Weight: 10 lb (standard parameters configuration, including 2 lithium batteries and a recorder)
Electrical Ratings
- Power Supply: AC power, battery
- AC Power: 100 to 240 VAC (±10%)
- Current: 1.3 to 0.5 A
- AC Power Input Frequency: 50/60 Hz (±3Hz)
Environmental Conditions
- Operating Temperature Range: 10°C to 40°C
- Operating Humidity Range: 15% to 95%, non-condensing
- Operating Altitude Range: -1,000 to 9,841 feet ASL | 1,074 hPa to 700 hPa | 806 mmHg to 394 mmHg
- Storage Temperature Range: -20°C to 60°C
- Storage Humidity Range: 10% to 95%, non-condensing
- Storage Altitude Range: -1,000 to 15,000 feet ASL | 1,074 hPa to 700 hPa | 806 mmHg to 394 mmHg
Compatibility
- Central Station: Connects to BeneVision Central Station
- Network: Optional Wireless 2.4 GHz (802.11b/g/n)
Intended Use
- Settings: Hospital and ambulatory clinical environments (transport and bedside monitoring)
