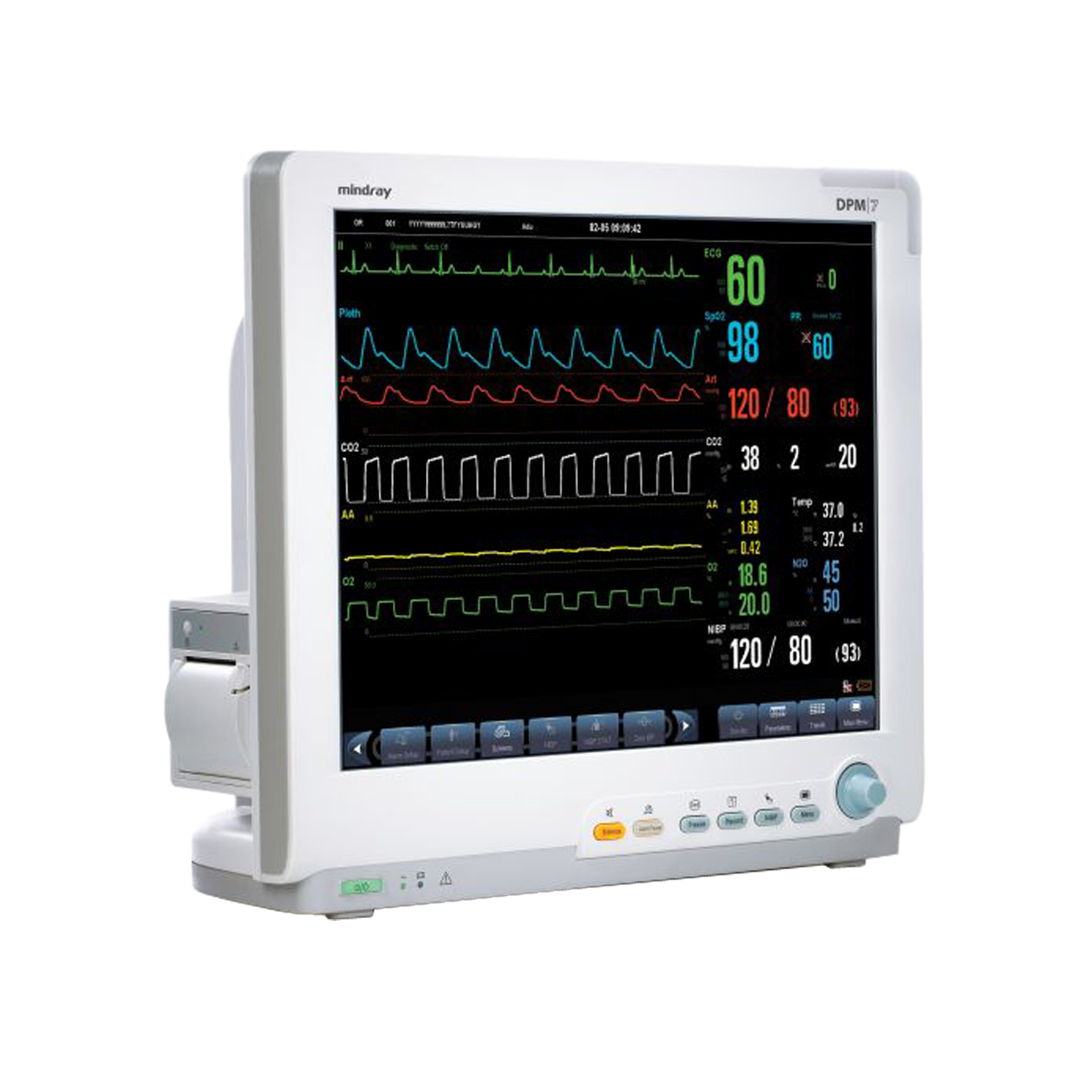

About the Mindray DPM7 Patient Monitor
The DPM7 handles multi-gas analysis alongside full hemodynamic monitoring in a single platform, which means fewer devices cluttering your OR or ICU workspace. You get CO/CCO/SvO2 monitoring, comprehensive ECG analysis, and gas monitoring without juggling separate systems.
The 17-inch touchscreen gives you room to actually see waveforms and trends clearly, even from across the room. Worth noting: the split-screen ECG feature lets you keep 5-lead monitoring visible while viewing other parameters, so you don’t lose critical rhythm data during procedures. The system stores 120 hours of trends and 48 hours of full waveform data, which helps when you’re reviewing events or preparing case documentation.
Five module slots support up to eight invasive pressures, and the wireless networking connects to your existing infrastructure without additional cabling runs.
Key Features
- 17-inch high-resolution color touchscreen display
- Multi-parameter monitoring including ECG, RESP, NIBP, CO/CCO/SvO2 and multi-gas analysis
- Multi-vector arrhythmia monitoring with 3-, 5- and 12-lead ECG capability
- ECG split-screen feature to view 5-lead ECG while maintaining other real-time data
- Customizable touchscreen quick-action keys
- Large numerics display mode for increased visibility
- Wireless networking capable
- Records up to 120 hours of graphs and trends and retains 48 hours of full disclosure waveform review
- Five built-in module slots and support for up to eight invasive blood pressures
Specifications for Mindray DPM7 Patient Monitor
Display
- Display: 17″ (432 mm) high-resolution touchscreen
Dimensions
- Dimensions: 14.6” (370 mm) H x 15.7” (400 mm) W x 7.6” (193 mm) D
Weight
- Weight: > 31.9 lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
Power
- Power Input Voltage: 100 to 240 VAC
- Current: 2.8 to 1.6 A
- Frequency: 50/60 Hz
- Power Supply: 1 AC power connector
Connectivity
- Network: 2 RJ45 network connectors, 100 BASE-TX
- Video: 1 DVI-D video interface connector
- Auxiliary Output: 1 BNC connector
- Equipotentiality: 1 equipotential grounding connector
- Wireless: IEEE 802.11g WiFi compatible
Monitoring Capabilities
- Parameters: 3-, 5- and 12-lead ECG; multi-vector arrhythmia and ST analysis; RESP; NIBP; Pulse Rate; CO; CCO/SvO2; CO2; up to 8 invasive blood pressures; 5-agent multi-gas analysis with auto-ID and data storage
- Modules: 5 built-in module slots
- Optional Modules: Conventional or Microstream EtCO2; Masimo SET or Nellcor OxiMax SpO2; Sidestream or Microstream CO2
Data Storage
- Trend/Graphs: Records up to 120 hours of graphs and trends
- Waveform Review: Retains 48 hours of full disclosure waveform review
Environmental Operating
- Operating Atmospheric Pressure: 425 – 809 mmHg; 430 – 795 mmHg (Microstream CO2 module); 428 – 790 mmHg (Sidestream CO2 module); 525 – 900 mmHg (AG module)
- Operating Temperature: 41° – 104°F (5° to 40°C); 32° – 104°F (0°C to 40°C) Microstream CO2 module; 41° – 95°F (5°C to 35°C) Sidestream CO2 module; 50° – 104°F (10°C to 40°C) AG Module
- Operating Humidity: 15% to 95%, non-condensing
Environmental Storage
- Storage Atmospheric Pressure: 120 – 809 mmHg; 430 – 795 mmHg (Microstream CO2 module); 428 – 790 mmHg (Sidestream CO2 module); 525 – 900 mmHg (AG module)
Intended Use
- Applications: High-acuity clinical environments including ICU and operating room
