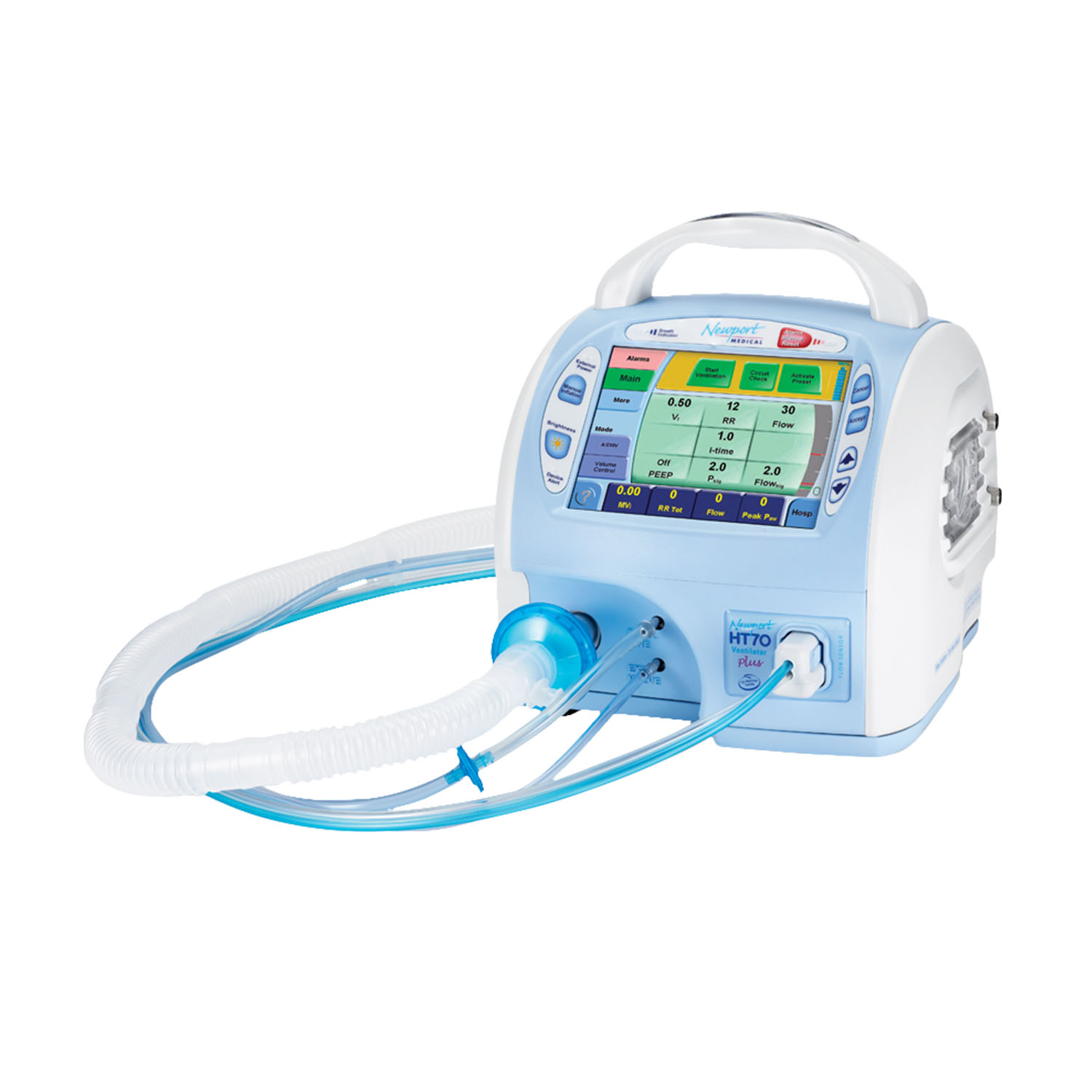

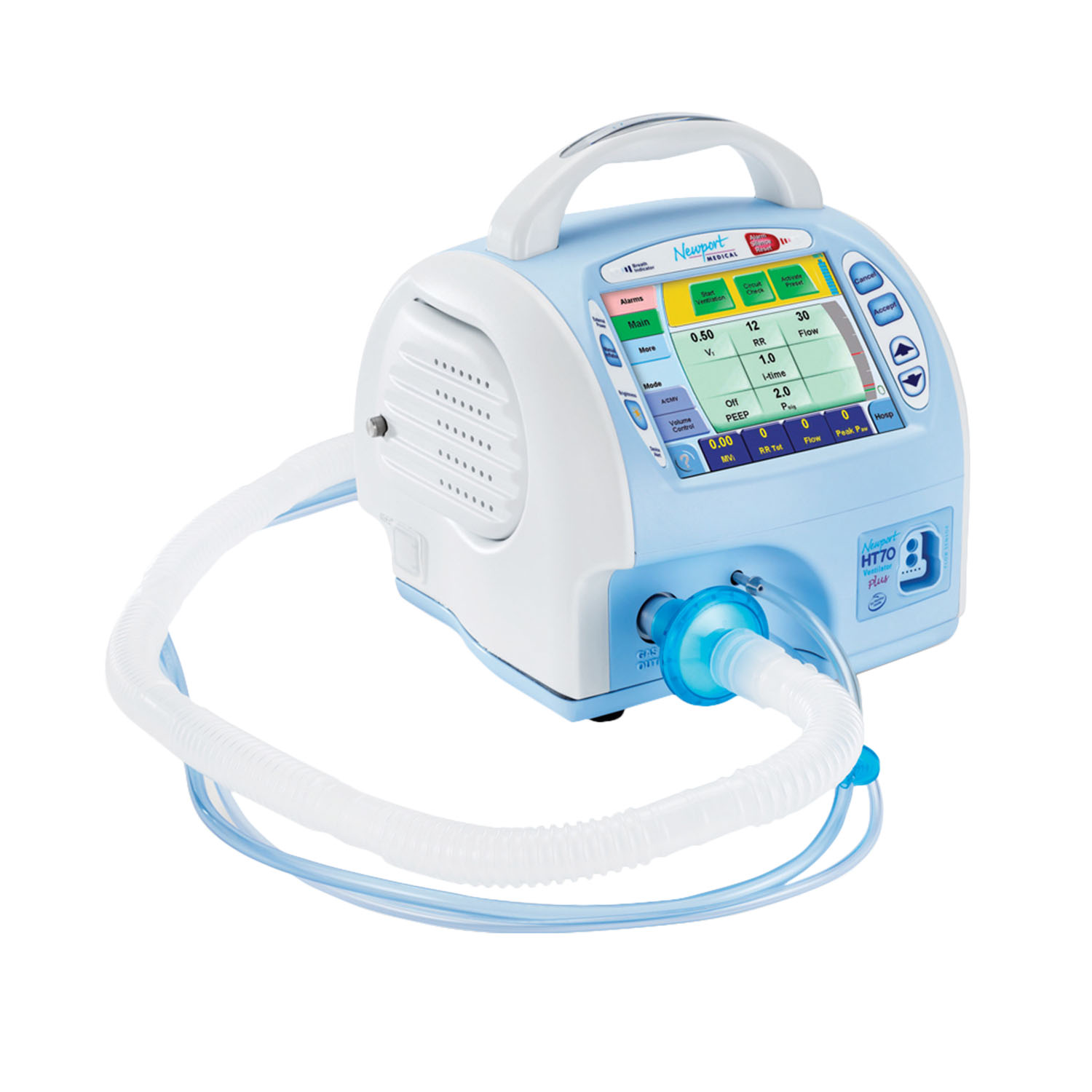

About the Covidien Newport HT70 Plus Ventilator
The Newport HT70 Plus handles patient ventilation from 5 kg pediatric cases through adults using a micro-piston pump that works across transport, acute care, and long-term settings. Unlike traditional bellows systems, it delivers consistent flow regardless of altitude or gas supply fluctuations.
The full-color touchscreen adapts its interface based on your setting – basic transport mode strips away complexity while hospital mode gives you full parameter control. Built-in oxygen monitoring tracks cylinder time remaining and triggers alarms before you run low. Worth noting: the hot-swappable dual battery system means you won’t interrupt ventilation during power changes, with up to 10 hours of operation per charge.
The 360-degree alarm lamps in the handle let you spot issues from any angle, while color-coded screen alerts speed up troubleshooting. An on-airway flow sensor handles both invasive and noninvasive monitoring without sensor swaps.
Key Features
- Micro-piston pump ventilation for 5 kg pediatric through adult patients
- Customizable touchscreen with domain-specific interfaces (basic, transport, hospital)
- Hot-swappable dual lithium-ion batteries providing up to 10 hours operation
- Built-in oxygen monitoring with cylinder time calculator and low O2 alarms
- On-airway flow sensor for invasive and noninvasive use
- 360-degree handle alarm lights with color-coded screen alerts
- Flow or pressure triggering with linkable backup ventilation alarms
Specifications for Covidien Newport HT70 Plus Ventilator
Intended Use
- Patient Range: Infant/Pediatric (≥5 kg) – Adult
Controls/Settings
- Modes: Pressure or volume
- Ventilation Modes: A/CMV, SIMV, SPONT
- Parameters: VT (Tidal Volume): 50 to 2,200 mL; RR (Respiratory Rate): 1 to 99 b/min; Inspiratory Time: 0.1 to 3.0 sec; PEEP/CPAP: 0 to 30 cm H2O/0 to 30 mbar; PS (Pressure Support): 0 to 60 cm H2O/0 to 60 mbar; Flow: 6 to 100 L/min; I:E Ratio: 1:99 to 3:1; Ptrig (Sensitivity): -9.9 to 0 cm H2O/-9.9 to 0 mbar; Flow Trigger: 0.0 to 10.0 L/min, Off
- Oxygen Concentration: 21% to 100%
- Bias Flow: NIV off: 7 L/min w/PEEP; NIV on: 3 to 30 L/min w/PEEP
- PS Max i time: 3 sec maximum
- PS % Exp. Threshold: 5% to 85%
- Flow Wave Pattern: Square or descending
Monitored Parameters
- Parameters: Paw (Peak, Mean, Base); MVI/MVE (insp./exp. min volume); RR tot (total respiratory rate); O2 Concentration; O2 Cylinder Time; VTI/VTE (insp./exp. tidal volume); Peak insp. flow; I:E Ratio; Battery Time
Alarms
- Alarms: High/Low Airway Pressure; High/Low Baseline Pressure; High Resp. Rate; High/Low Minute Volume; Apnea; High/Low O2; Low Battery Alarm; Silence/Reset Device Alert; High Tidal Volume; Backup Ventilation Alert; Airway Flow Sensor Disconnect
Power
- AC Power: 100-240 VAC, max. 2A, 50/60 Hz
- DC Power: 12-24 VDC, max. 5A
- Nominal Current: 0.1A at nominal setting
Batteries
- Primary Internal Power Pac Battery: Lithium ion – provides up to 10 hours of operation
- Secondary Internal Backup Battery: Lithium ion – minimum of 30 minutes of operation
Dimensions & Weight
- Width: 9.75 in. (24.74 cm)
- Depth: 11 in. (27.94 cm)
- Height (includes handle): 10.25 in. (26.04 cm)
- Weight: 15.4 lbs (6.9 kg)
- Touchscreen Size: 5.2 in. x 3.9 in. nominal, 7 in. diagonal (17.78 cm)
Contents
- Specialty Screens/Functions: Events (records up to 1,000 events with parameter settings); Trends (displays trend graphs for last 72 hr); Waveform Graphics (flow/pressure/tidal volume); Help (on-screen tutorial); Domains (Basic, Transport, Hospital); Patient Presets (customized or default); Backup Ventilation (customizable)
Compatibility
- Central Monitoring/Remote Alarm: Compatible
