Accu-Scope TCS Pro 500 Digital Microscopy Camera and Tablet

Accu-Scope TCS Pro 500 Digital Microscopy Camera and Tablet - Image 2

Accu-Scope TCS Pro 500 Digital Microscopy Camera and Tablet

Integrated 5MP microscopy camera and 9.7″ tablet system with VMS3.6 software for real-time imaging, annotation, and wireless documentation at the scope.

New List Price $1.00

Your Savings

DRE Price $1.00

Select Condition

Clear

New

Refurbished

Add to quote

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

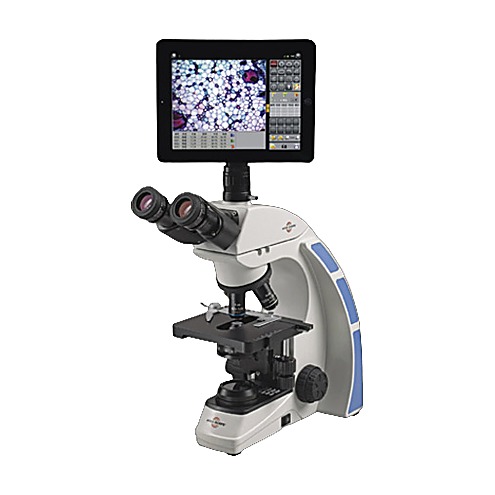

The TCS Pro 500 combines a 5MP camera with a 9.7″ tablet for microscopy imaging and documentation at the scope. No separate PC workstations or external monitors needed. Pathologists and lab technicians can capture, annotate, and share results without switching between eyepieces and remote screens.

VMS3.6 software handles live 720p preview, measurement tools, and report generation. Wireless connectivity lets you export findings directly to Word, Excel, or PDF formats. This system fits into clinical workflows rather than disrupting them.

Multi-touch gestures work naturally for annotation and measurement. The tablet adjusts to 90 degrees for comfortable viewing angles. Live imaging runs at 30fps full resolution during procedures.

Key Features

5 megapixel CMOS camera with integrated 9.7″ HD touch tablet eliminates separate workstations
VMS3.6 software provides complete image capture, annotation, measurement and export capabilities
720p live video preview at 30fps for real-time viewing during procedures
Wi-Fi and Bluetooth connectivity for wireless file sharing and network integration
Direct export to Word, Excel and PDF formats for immediate reporting
Adjustable 90-degree tablet incline with responsive multi-touch interface

Camera

Sensor: 1/2″ CMOS
Resolution: 5 megapixel (2592 × 1936)
Frame Rate: Image Preview: 30 fps at full resolution; Video: 720/15 fps
Pixel Array: 2.2µm × 2.2µm
White Balance: Manual / Automatic / Preset
Controls: Programmable Gain, Frame Rate, Frame Size, Exposure
Shutter Type: Global Reset Release (GRR)
Color Filter Array: RGB Bayer Pattern
Dynamic Range: 71 dB
SNRMAX: 40.5 dB

Tablet

Display: 9.7″ HD LED backlit screen (1024 × 678), multi-point touch, G-sensor
Processor: 1.2 GHz ARM Cortex A8
Memory: 1 GB DDR3 RAM
Storage: 8 GB internal (optional 16 GB)
Operating System: Android 2.3

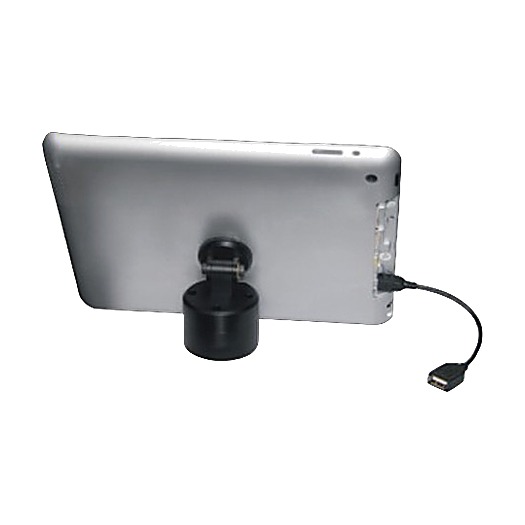

Incline: Adjustable 90°

Interfaces & Connectivity

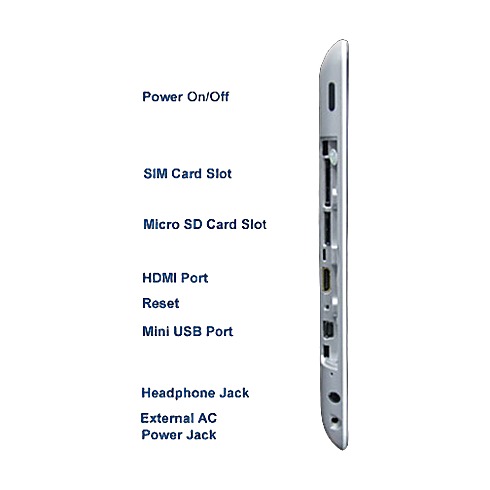

Interfaces: Mini USB 2.0, HDMI, Micro SD card slot (up to 32 GB), SIM card slot, Headphone jack
Wireless: Wireless LAN 802.11 b/g/n
Bluetooth: V2.1 + EDR
3G: Optional 3G module / external 3G card slot; Supports WCDMA / EVDO / TDSCDMA

Audio & Media

Audio: Built-in Class-D digital stereo speaker; built-in microphone
Video Formats: MPEG-2, H.264, VC1, RV, MPEG-4/Xvid, DivX, H.263, MJPEG
Video Encode: H.264, H.263, MPEG-4, MPEG-2, MJPEG
Audio Formats: MP3, AAC, ADTS, M4A, WMA
Photo Formats: JPG, GIF, BMP, PNG

Power & Environmental

Power Adapter: AC 110V~220V; Output DC 5V 3A
Battery: 3.7V 6400 mAh rechargeable Li-Polymer; ~3 hours
Ambient Operating Temperature: 30°C to +70°C

Software & Applications

Included Software: VMS3.6 for capture, annotation, measurement and export
Preinstalled Apps: Email, Google Search, Calendar, Quick Office Pro
Language Support: English, German, Spanish, French, Italian, Russian, Czech, Danish, Dutch, Norwegian, Swedish, Polish, Portuguese, Greek, Turkish, Korean, Japanese, Chinese

Accessories

Included: USB cable, User manuals
