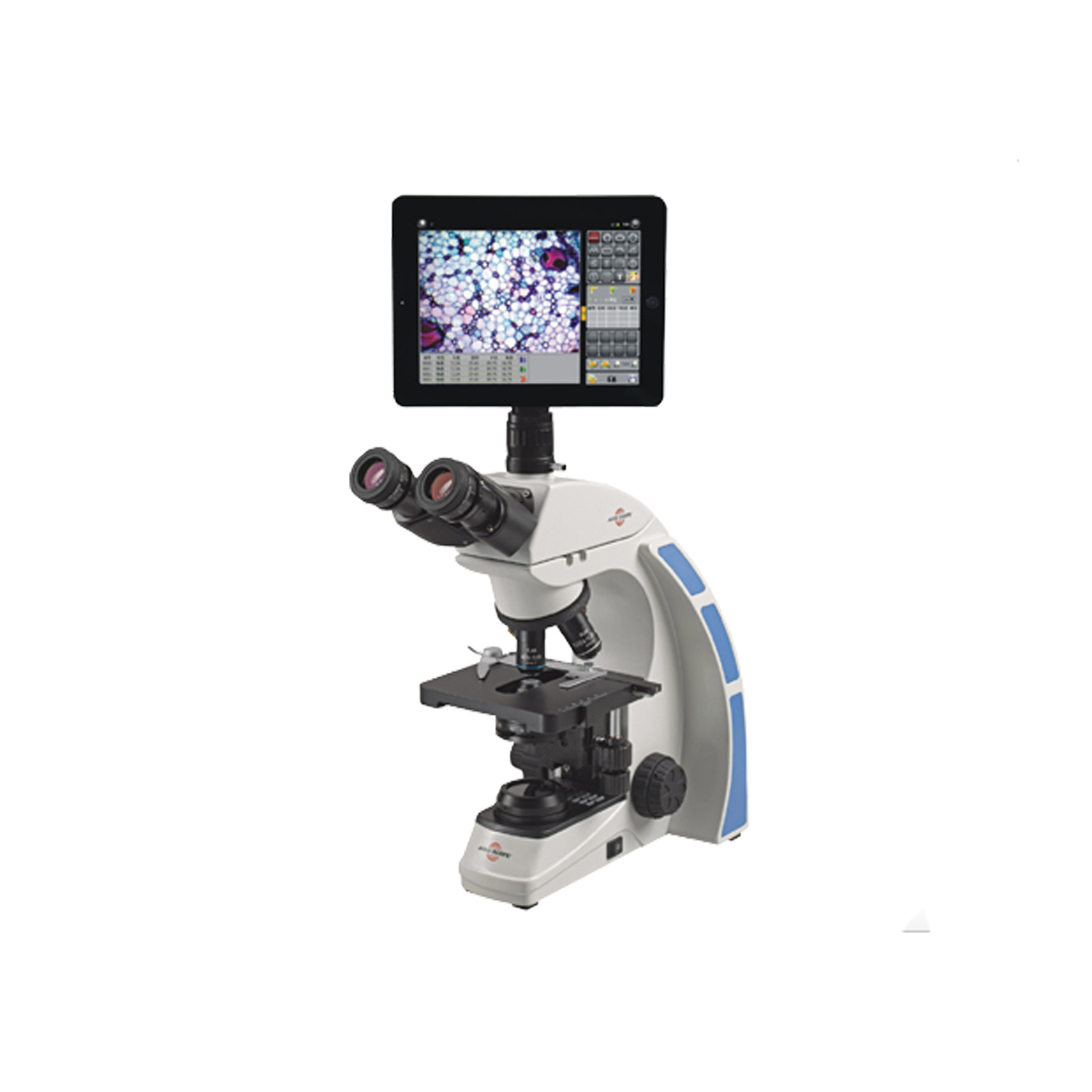

Accu-Scope 3000-LED Microscope Series
The Accu-Scope 3000-LED delivers lab-grade optics with a 3-watt LED illuminator that produces consistent, high-contrast imaging without the heat buildup and.
Quality Management
Facility & Processes
Biomedical Technicians
About the Accu-Scope 3000-LED Microscope Series
The Accu-Scope 3000-LED delivers lab-grade optics with a 3-watt LED illuminator that produces consistent, high-contrast imaging without the heat buildup and frequent bulb changes of traditional halogen systems. The infinity plan optical system maintains sharp focus across the entire 20mm field of view, which matters when you’re training residents or need multiple people reviewing the same specimen.
In practice, the coaxial focusing with adjustable tension and upper limit stop prevents costly slide damage during routine use. The rear-facing quadruple nosepiece with positive click stops speeds objective changes and reduces the fumbling you get with side-mounted turrets. Worth noting: the 360° rotatable Siedentopf head lets multiple users share the scope without constantly readjusting the base position.
Key Features
- 3-watt LED illumination eliminates heat buildup and bulb replacement
- Infinity plan objectives in achromat and phase contrast configurations
- 20mm wide field eyepieces for expanded viewing area
- Coaxial focusing with slide protection and adjustable tension
- 360° rotatable head with 30° viewing angle
- Rear-facing quadruple nosepiece with positive click stops
Specifications for Accu-Scope 3000-LED Microscope Series
Optical System
- Type: Infinity Optical System
- Focal Length: f = 180mm
Viewing Head
- Type: Siedentopf type, inclined 30°
- Interpupillary Adjustment: 48–75 mm
- Rotation: 360° rotatable
- Configurations: Binocular or Trinocular
Eyepieces
- Model: HWF Plan 10x
- Field Of View: 20 mm
- Diopter: Built-in diopter adjustment
- Reticle: Accepts ø20.5 mm reticle; pointer standard in one eyepiece
Objectives
- Standard Configuration: Infinity Plan achromat 4x, 10x, 40xR*, 100xR oil* (*spring-loaded)
Nosepiece
- Type: Rear-facing quadruple, ball bearing with positive click stops
Condenser
- Type: Abbe condenser
- Numerical Aperture: N.A. 1.25
- Features: Slot for sliders, iris diaphragm, glass lens protecting diaphragm
Stage
- Size: 140 mm × 132 mm
- X-Y Travel: 76 mm × 50 mm
Stand
- Material: Cast alloy aluminum
Illumination
- Light Source: 3 watt LED
- Control: Variable intensity
- Rated Life: LED bulb rated for over 25,000 hours
Focusing System
- Type: Coaxial focusing
- Features: Adjustable tension control, upper limit stop, all metal gears, brass fine focus gear
Accessories
- Included: Dust cover, immersion oil, instruction manual, universal power supply 110 V–240 V
Physical
- Dimensions (L×W×H): 387 mm × 196 mm × 391 mm
- Weight: 16 lbs
Shipping
- Dimensions: 19″ × 11″ × 19″
- Weight: 21 lbs
