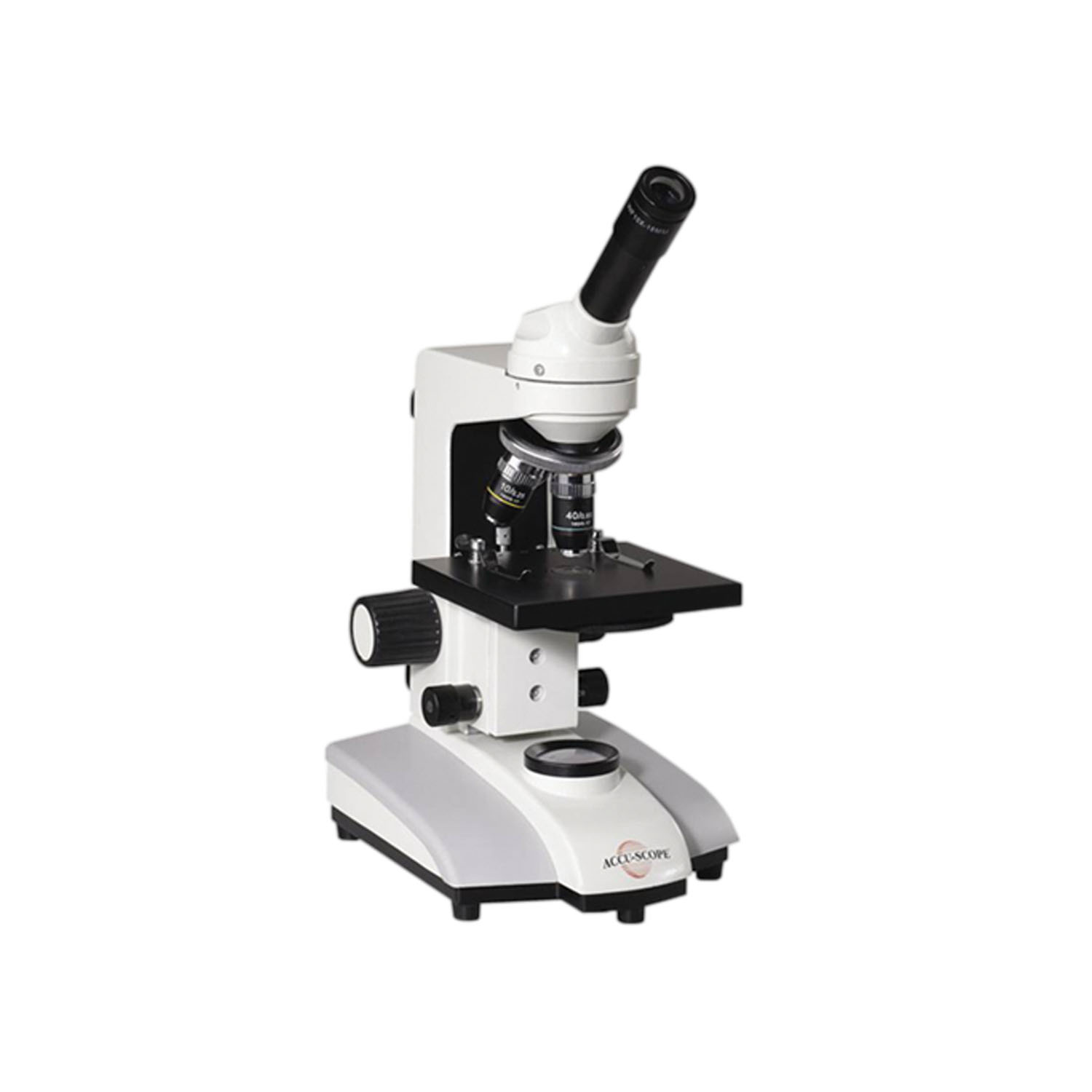

Accu-Scope 3080 Microscope Series
The Accu-Scope 3080 handles continuous classroom rotation and sharing without the constant readjustments that slow down teaching sessions.
Quality Management
Facility & Processes
Biomedical Technicians
About the Accu-Scope 3080 Microscope Series
The Accu-Scope 3080 handles continuous classroom rotation and sharing without the constant readjustments that slow down teaching sessions. The 360° rotatable viewing body with built-in finger grips lets students pass the microscope around easily, while the locked-in eyepiece prevents the tampering that typically disrupts lab workflows.
Unlike basic educational microscopes, the 3080 series maintains optical alignment through heavy use thanks to its ball-bearing nosepiece with positive click stops. The 10,000-hour fluorescent bulb means you won’t be replacing illumination mid-semester. Worth noting: the separate coarse and fine focus controls sit in ergonomic positions that reduce hand strain during extended observation periods.
Key Features
- WF10x eyepiece with pointer and locked-in design prevents tampering
- 360° rotatable viewing body with finger grips for easy student sharing
- Ball-bearing nosepiece with positive click stops maintains alignment
- 10,000-hour fluorescent illumination reduces maintenance interruptions
- Available in monocular and teaching-head configurations
- Choice of mechanical stage or stage clips depending on application needs
Specifications for Accu-Scope 3080 Microscope Series
Contents
- Models: 3080, 3080-T, 3080-MS, 3080-TMS, 3081-MS, 3081-TMS
Optical Components
- Eyepiece: WF10x with pointer; Field of View: 18mm
- Objectives Included: 4x, 10x, 40xR* (3081 models also include 100xR*)
Head
- Types: Monocular or Teaching (teaching head)
- Viewing Body: Inclined 45°, rotatable 360°
Stage
- Size: 123 × 129mm
- Options: Stage clips or double-plate mechanical stage with low-position controls
Condenser
- 3080 models: N.A. 0.65 condenser with five-aperture disc diaphragm
- 3080-MS and 3081 models: N.A. 1.25 Abbe condenser with iris diaphragm in spiral mount
Illumination
- Type: Built-in 7 watt fluorescent with collector lens and ON/OFF switch
- Bulb Life: 10,000-hour rated
Stand and Construction
- Stand: Full-size with cast alloy aluminum construction and acid-resistant almond finish
- Focus Controls: Separate coarse and fine adjustment
- Power: Grounded 3-wire line cord with cord hanger
Optional Accessories
- Eyepieces: WF15x (15mm F.O.V.), WF20x (11mm F.O.V.)
- Additional Objectives: 20x, 60xR*
- Carry Case: Available
