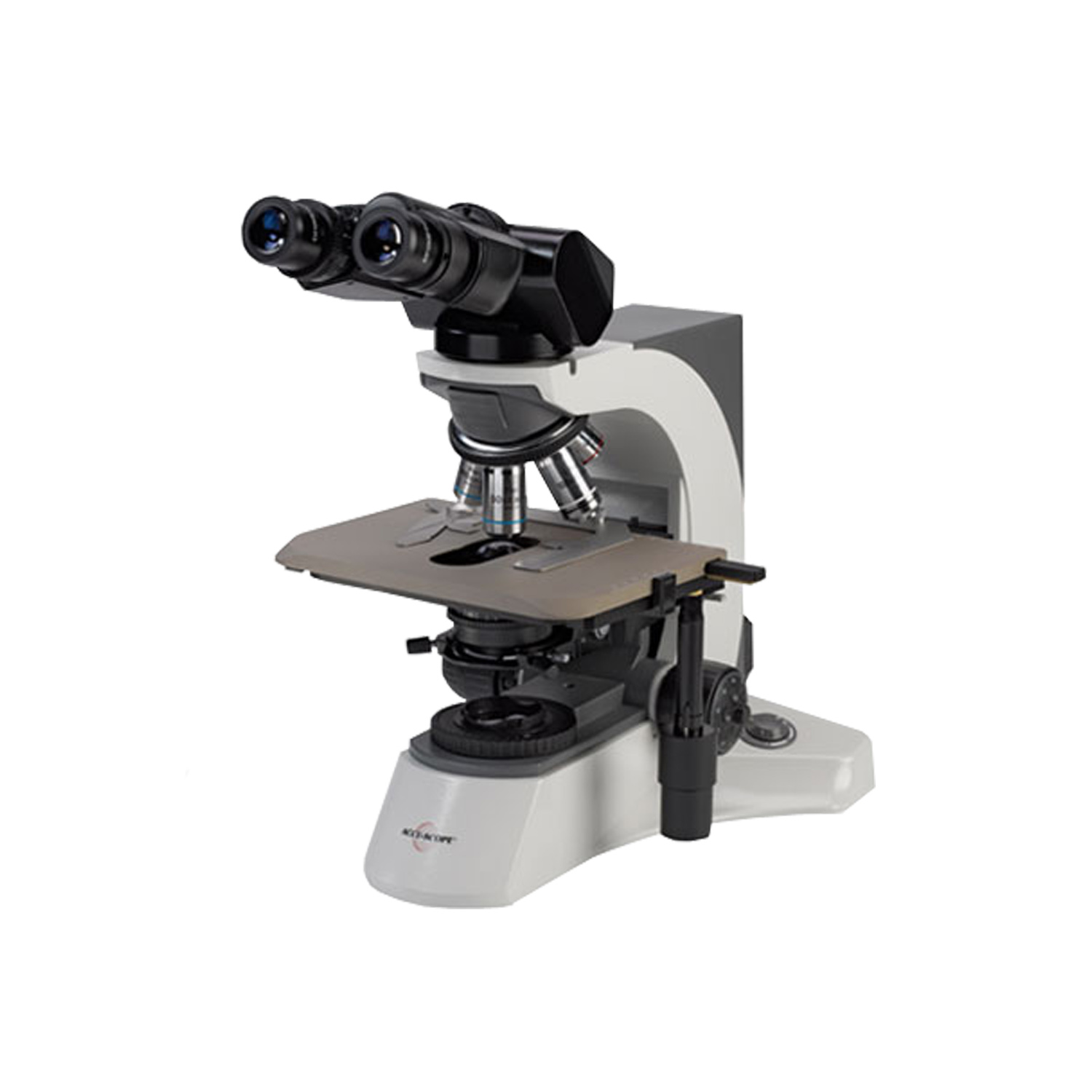

About the Accu-Scope 3025 Microscope Series
This microscope uses infinity optics with a 180mm tube length to eliminate the chromatic aberration problems you get with older finite tube systems. The coaxial focusing has adjustable tension for precise control during slide examination. A rear-facing quintuple nosepiece with ball-bearing construction keeps objective changes smooth and eliminates vibration.
You can configure it for basic brightfield work or add fluorescence and multi-viewing capabilities later. The modular approach lets you expand as lab requirements change. Trinocular models include beam splitter integration for digital documentation while maintaining normal examination workflow.
Multiple users can work comfortably thanks to the Siedentopf head that adjusts from 5° to 35°. No constant readjustment needed. Focusable eyepieces compensate for vision differences between operators, and the roll-down eyeguards accommodate users with or without glasses.
Key Features
- Infinity optical system with 180mm tube length eliminates chromatic aberration
- Coaxial focusing with adjustable tension and upper limit stop
- Rear-facing quintuple nosepiece with ball-bearing construction
- Siedentopf binocular head adjustable 5° to 35° with 360° rotation
- Focusable EWF 10x eyepieces with 22mm field of view
- Trinocular and fluorescence configuration options available
Specifications for Accu-Scope 3025 Microscope Series
General
- Optical System: Infinity Optical System, f = 180mm, Anti-Mold
- Status: New
Viewing Head
- Type: Siedentopf ergonomic tilting binocular (5° – 35°) or Siedentopf trinocular
- Interpupillary Distance: 48-75mm
- Rotation: 360° rotatable
Eyepieces
- Model: EWF Plan 10x focusable
- Field Of View: 22 mm
Objectives
- Standard Configuration: Infinity Plan achromat 4x, 10x, 40xR, 100xR oil
Nosepiece
- Type: Rear-facing quintuple, ball bearing with positive click stops
Stage
- Material/Type: Ceramic stage
- Size: 218 mm × 150 mm
- X-Y Movement: 76 mm × 35 mm
Condenser
- Type: Abbe condenser
- Numerical Aperture: 1.25
- Adjustment: Rack and pinion with iris diaphragm
Illumination
- Standard: Koehler 6 V 30 W variable halogen
- Multi-Viewing Units: Koehler 24 V 100 W halogen
- LED Option: LED illumination noted as available (per product content)
Focusing
- System: Coaxial focusing with adjustable tension control and upper limit stop
- Gearing: All metal gears, brass fine focus gear
Accessories / Contents
- Included: Dust cover, immersion oil, instruction manual, universal power supply 110 V – 240 V

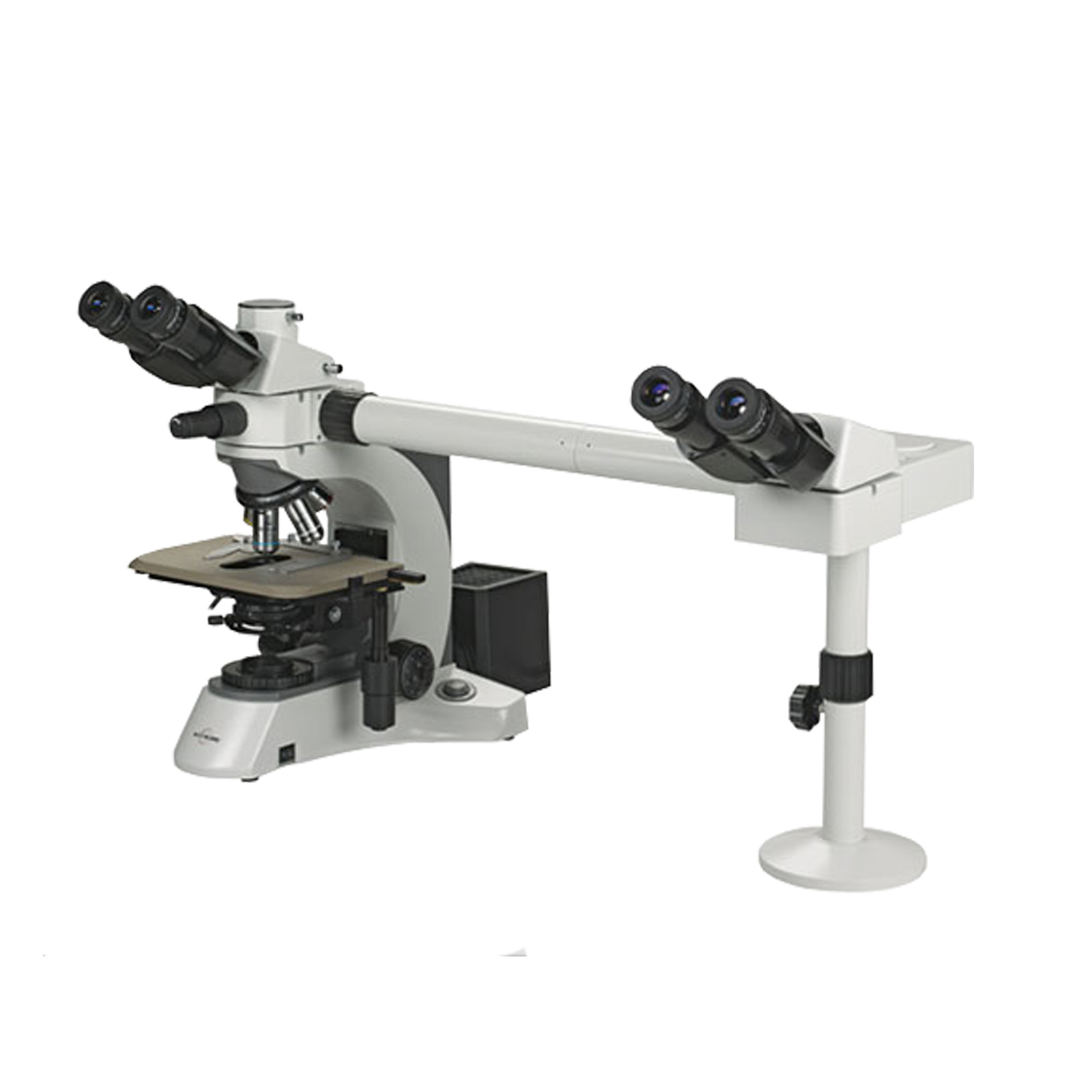

- Optional Accessories: Digital cameras, HD video cameras, trinocular viewing head, multi-viewing configurations, beam splitter, fluorescence attachments and illumination sources, phase contrast turret, darkfield condensers, reticles, polarizer/analyzer
Physical
- Dimensions (L×W×H): 387 mm × 196 mm × 391 mm
- Weight: 22 lbs
Stand
- Material: Cast alloy aluminum
