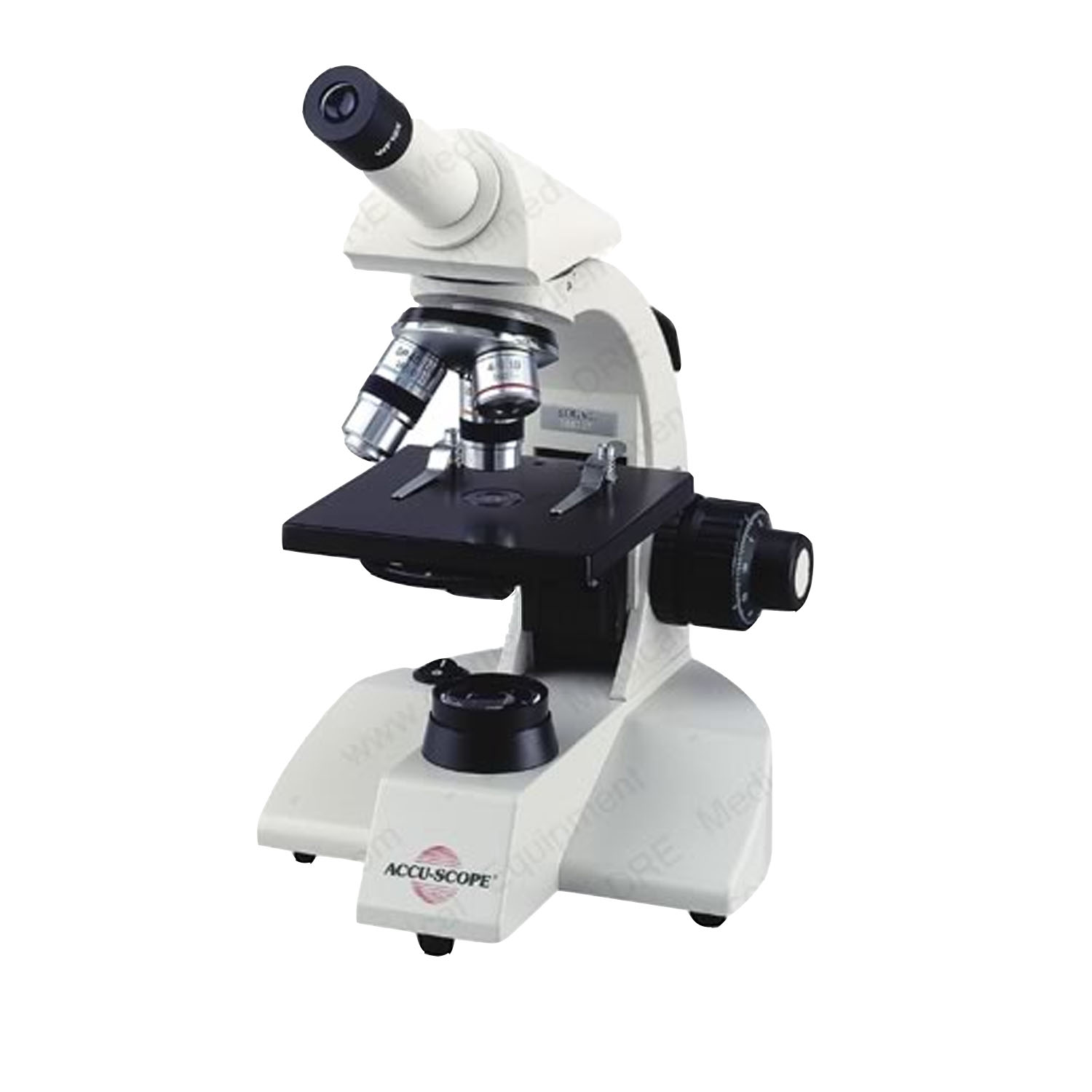

Accu-Scope 3079 Microscope Series
The Accu-Scope 3079 delivers consistent clinical imaging with locked-in eyepieces that can’t be tampered with in teaching environments.
Quality Management
Facility & Processes
Biomedical Technicians
About the Accu-Scope 3079 Microscope Series
The Accu-Scope 3079 delivers consistent clinical imaging with locked-in eyepieces that can’t be tampered with in teaching environments. The built-in focus stop prevents costly objective damage from over-focusing, while the 5-watt fluorescent system provides 10,000 hours of reliable illumination.
In practice, the low-position coaxial controls reduce operator fatigue during extended use sessions. The triple ball-bearing nosepiece maintains objective alignment through thousands of rotations, and the 360° rotatable head lets multiple users view specimens without moving the entire unit.
Key Features
- Locked WF10x eyepiece with pointer prevents classroom tampering
- Built-in focus stop protects specimens and objectives from damage
- Low-position coaxial focusing with adjustable tension control
- Triple ball-bearing nosepiece with positive click stops
- 5-watt fluorescent illumination with 10,000-hour bulb life
Specifications for Accu-Scope 3079 Microscope Series
Available Models
- Models: 3070, 3071, 3079
Eyepieces
- Eyepiece: WF10x with pointer, 18 mm field of view
- Optional Eyepieces: WF15x (15 mm F.O.V.), WF20x (11 mm F.O.V.)
Head
- Viewing Body: Monocular, inclined 30°, rotatable 360°
Stand
- Finish: Acid resistant lustrous almond
- Focus Controls: Low-position coaxial coarse and fine focusing; adjustable tension
- Fixed Focus Stop: Yes
Nosepiece
- Type: Triple revolving ball-bearing nosepiece with positive click stops
Substage / Condenser
- Condenser Options: N.A. 0.65 condenser with five-aperture disc diaphragm or N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
Illumination
- In-Base Illuminator: 5 watt fluorescent with collector lens and ON/OFF switch
- Fluorescent Bulb Life: 10,000-hour rated life
Objectives (factory configurations)
- 3070 Objectives: 4x, 10x, Semi-Plan 40xR*
- 3071 Objectives: 10x, Semi-Plan 40xR*, 100xR*
- 3079 Objectives: 4x, 10x, Semi-Plan 40xR*
Optional Accessories
- Accessories: 20x and 60xR* objectives, attachable mechanical stage, 19 mm micrometers, microscope carry case
