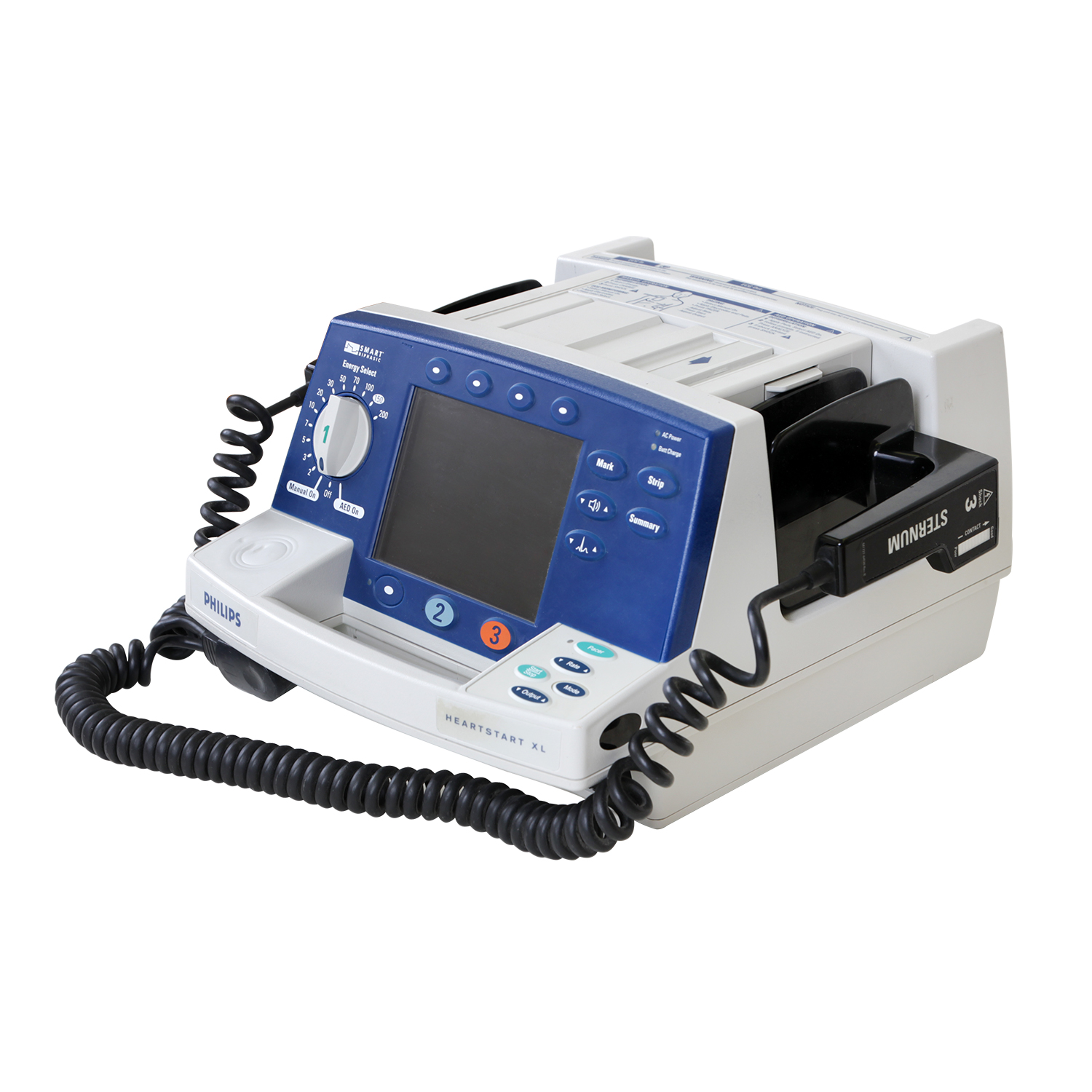

About the Philips Heartstart XL Biphasic Defibrillator
The HeartStart XL switches between full manual control and automated AED operation without changing pads or position. Your team gets the flexibility to operate in manual mode during procedures, then flip to AED mode for quick response situations where less-experienced staff might be first on scene.
The SMART Biphasic waveform automatically adjusts energy delivery based on patient impedance, while continuous ECG monitoring works through the same pads for defibrillation. Built-in strip chart printing captures events in real-time, and internal memory stores data for review later. The short version: one device handles both planned cardioversion and emergency response.
At under 14 pounds, it’s light enough for rapid transport between units. The electroluminescent display stays readable in varying light conditions, and selectable energy from 2 to 200 Joules covers pediatric through adult patients with optional pad configurations.
Key Features
- Dual manual/AED operation with single pad set
- SMART Biphasic waveform with automatic impedance compensation
- Voice prompts and text guidance in AED mode
- 2-200 Joule energy range with pediatric capability
- Continuous ECG monitoring through defibrillation pads
- Integrated 50mm strip chart printer
- Under 14 pounds for easy transport
- Internal event storage and optional data card
Specifications for Philips Heartstart XL Biphasic Defibrillator
Contents
- Included Components: Defibrillator unit, internal memory; optional data card (per description)
Capacity
- Energy Range: 2 to 200 Joules
- Pre-set AED Energy: 150 Joules non-escalating (AED mode)
Illumination
- Display Type: Electroluminescent display
Compatibility
- Monitoring Inputs: Pads or electrodes for ECG monitoring
- Accessories: Optional paddles; optional data card; optional SpO2 and non-invasive pacing modules
Sizes
- Weight: Less than 14 pounds (6.35 kg)
Data Management
- Data Storage: Continuous ECG and event storage in internal memory and optional data card
Intended Use
- Settings: Hospital and emergency care environments including ACLS and BLS providers
Standards
- Waveform Technology: SMART Biphasic waveform
