About the Oakworks Ultrasound Table

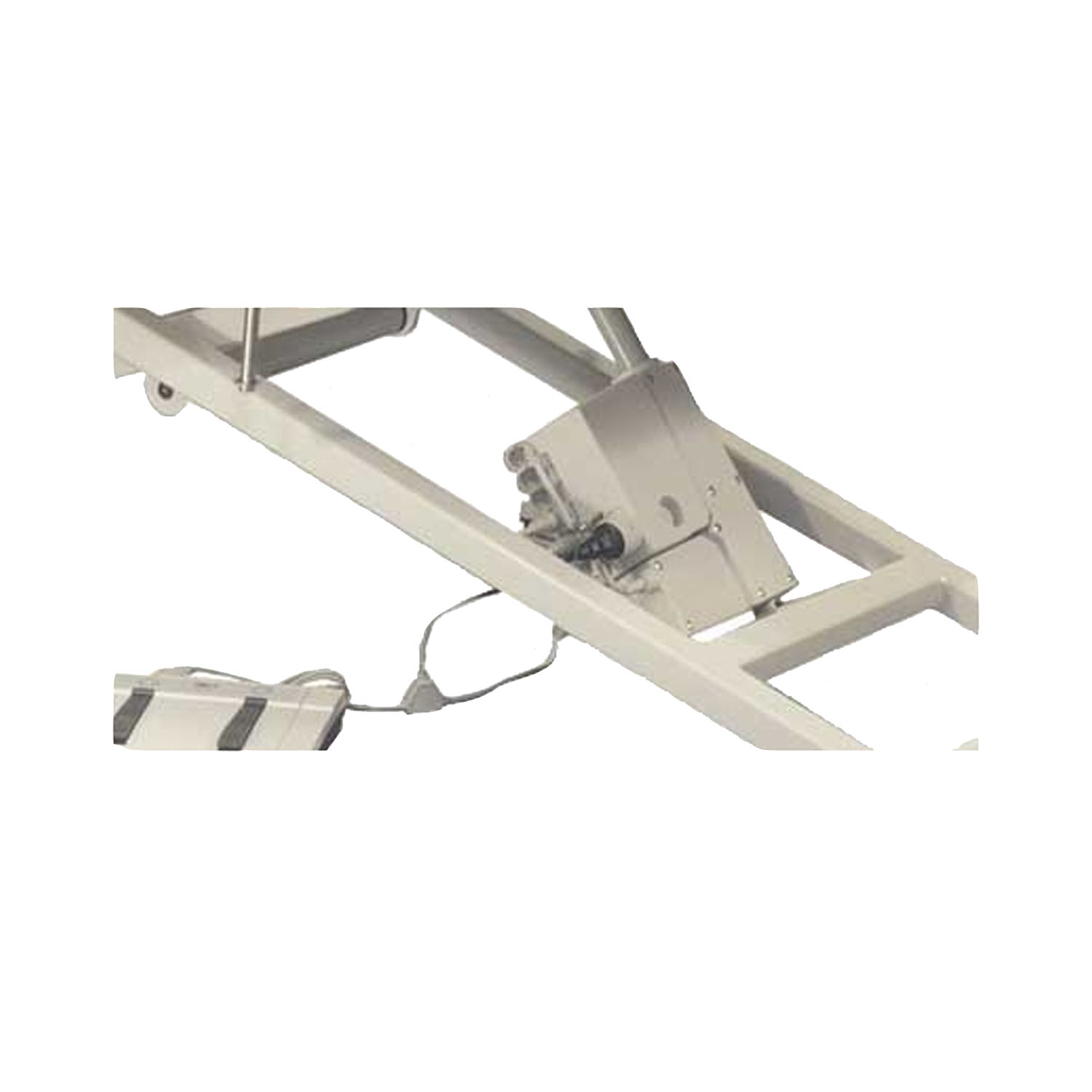

The dual-controlled lift system gives you powered height adjustment from two separate foot controls, so techs can position patients without breaking sterile field or reaching across the table. The super-quiet motor handles up to 550 lbs while the removable cardio and GYN drop-out panels provide direct access for imaging without patient repositioning.
Worth noting: the casters automatically lock when the table reaches working position, eliminating the step of manually engaging wheel locks during procedures. The steel frame construction handles bariatric patients while maintaining the 17-35 inch height range needed for both wheelchair transfers and standing operator comfort.
Key Features
- Dual foot controls for hands-free height adjustment

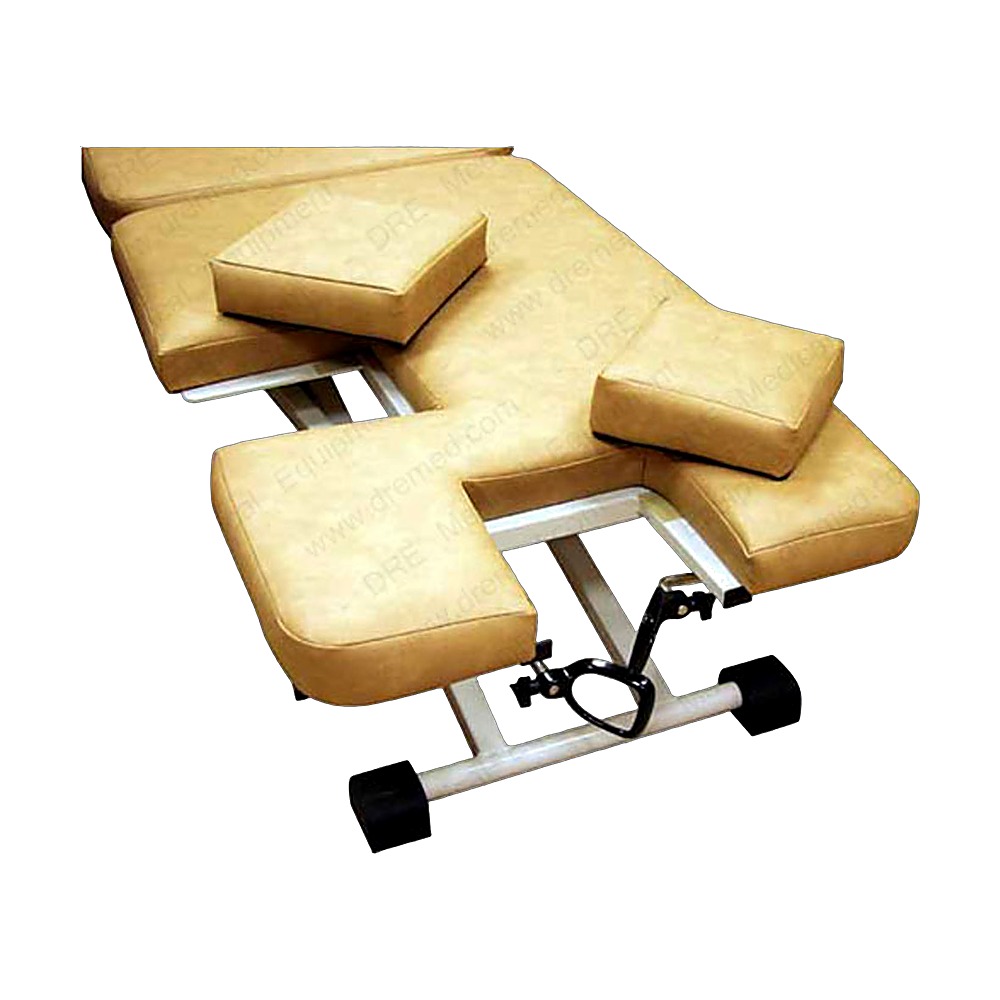

- Removable cardio and GYN drop-out panels for direct imaging access
- 550 lb capacity with super-quiet motor operation
- Auto-locking casters in working position
- Optional tuck-away stirrups and side arm rails
Specifications for Oakworks Ultrasound Table
Capacity
- Lifting Capacity: 550 lbs.
Sizes
- Width: 31″
- Length: 80″
- Height Range: 17″ × 35″
Materials
- Upholstery: Medical Grade Upholstery
- Frame Material: Stainless Steel
Electronics
- Motor: Single 110-volt motor
Options
- Options: International electrical configuration; Extra hand control; Stirrups; Side rails
Weight
- Weight: 175 lbs.
Intended Use
- Settings: Imaging; Cardiac; Gynecology; OB/GYN; Diagnostic Imaging; Radiology; Women’s Health
