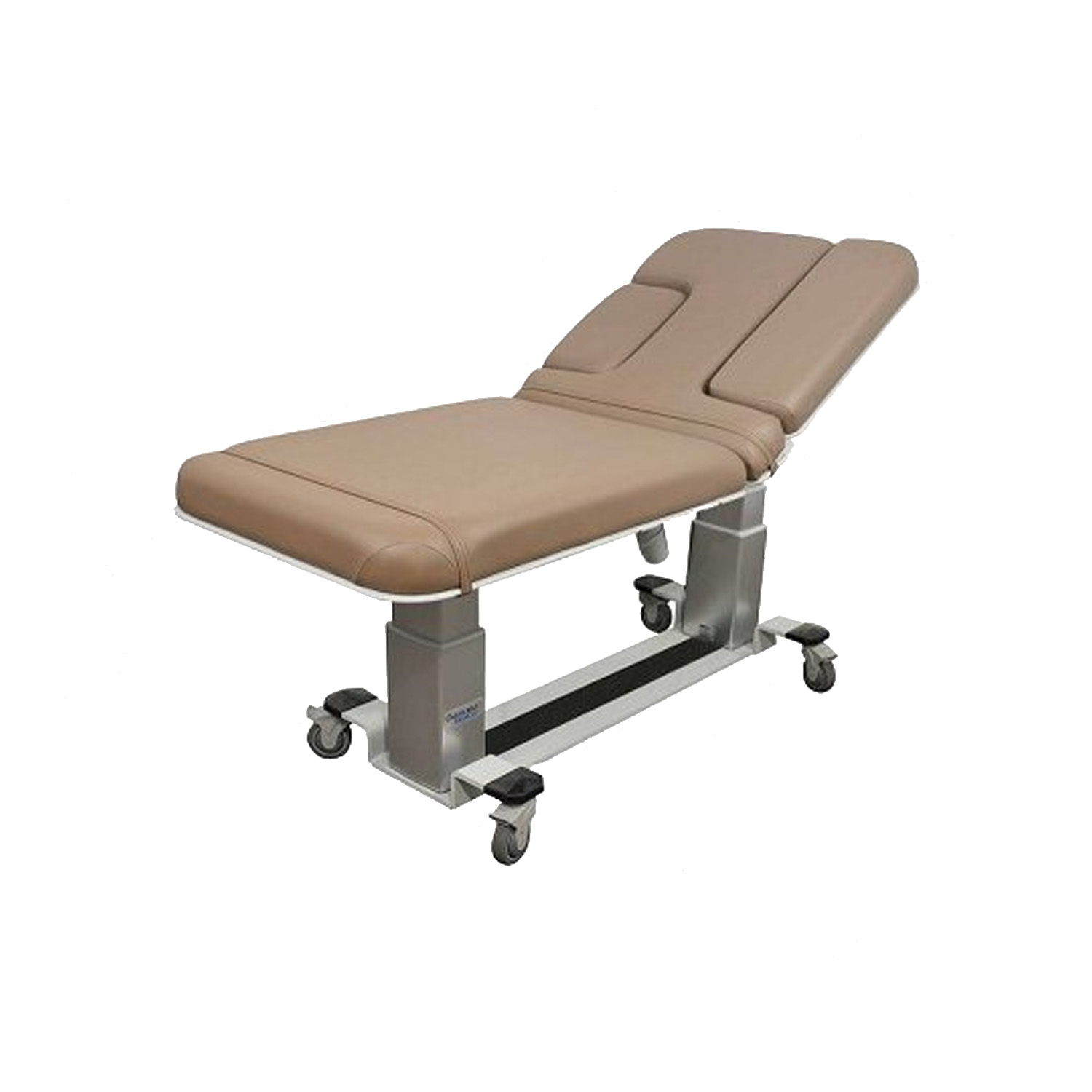

Oakworks Echocardiography Ultrasound Table
The sliding cardio panel opens up to 15 inches, giving you unrestricted transducer access for comprehensive cardiac imaging without patient repositioning.
Quality Management
Facility & Processes
Biomedical Technicians
About the Oakworks Echocardiography Ultrasound Table
The sliding cardio panel opens up to 15 inches, giving you unrestricted transducer access for comprehensive cardiac imaging without patient repositioning. Unlike fixed-aperture tables, this adjustable opening adapts to different body types and imaging angles while maintaining proper patient support.
The extender accommodates patients up to seven feet tall, while the 22 to 38-inch height range handles wheelchair transfers and stress echo protocols in the same workspace. Electric Fowler positioning and dual tower stability mean you won’t fight the table during lengthy procedures.
Worth noting: the 600-pound capacity handles bariatric patients, and the dual tower design eliminates the wobble you get with single-column tables during patient movement.
Key Features
- Sliding cardio panel with 15-inch opening adjustment (electric or manual)
- Table extender extends length to 84 inches for tall patients
- Height adjusts 22 to 38 inches for wheelchair access and stress testing
- 600-pound lift capacity with dual tower stability
- Electric Fowler positioning with multiple control options
- Optional accessories: side rails, arm board, QuickLock head rest
Specifications for Oakworks Echocardiography Ultrasound Table
Dimensions
- Overall Length: 72 inches
- Overall Width: 30 inches
- Extender Length: 12 inches (adds to table length to make 84 inches)
Capacity
- Lift/Load Capacity: 600 lb
Motion and Range
- Height Range: 22″ to 38″
- Trendelenburg/Reverse Tilt: +154″
Controls
- Hand Controls: H, T, F (standard); H, T, F, C (with electric cardio)
- Foot Control Options: H, F, T and H, F, T, C
Contents
- Paper Roll Holder: Included
Standards
- Listings: FDA listed, cETL approved, CE marked
Materials
- Frame/Components: Stainless Steel
