Clinton Multi-Use Ultrasound Table – 80069
The Clinton Multi-Use Ultrasound Table 80069 positions patients for ultrasound and basic imaging with a three-piece padded top that adjusts pneumatically.
Quality Management
Facility & Processes
Biomedical Technicians
About the Clinton Multi-Use Ultrasound Table – 80069

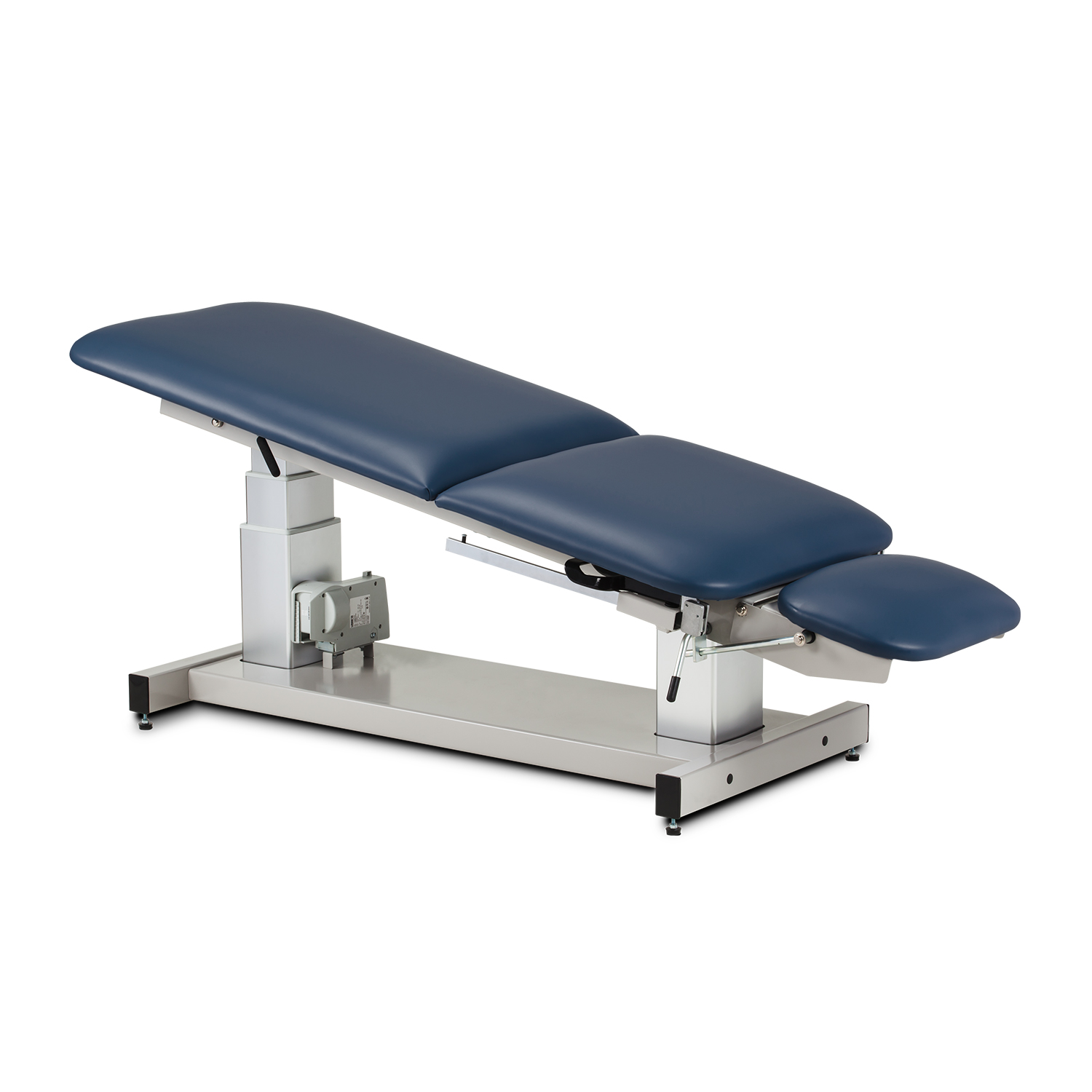

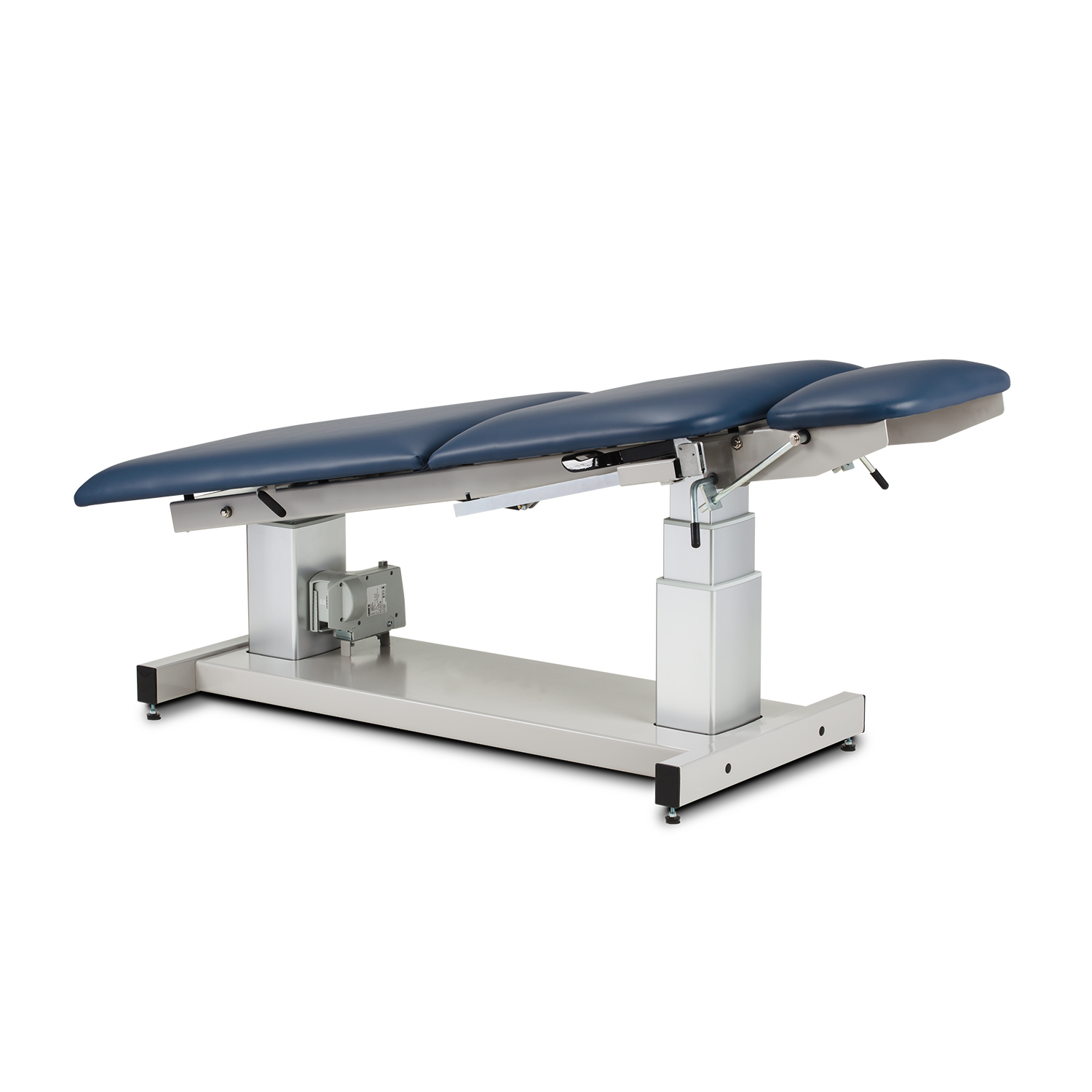

The Clinton Multi-Use Ultrasound Table 80069 positions patients for ultrasound and basic imaging with a three-piece padded top that adjusts pneumatically. The open base design gives sonographers unobstructed access from all angles, while the handheld remote controls height and Trendelenberg positioning without interrupting the exam workflow.
The dual-column lift system handles up to 550 pounds and maintains stability during patient transfers and positioning changes. Height adjusts from 21.5 to 37.5 inches via remote control. The footrest adjusts manually from either side and raises up to 30 degrees for procedures requiring leg elevation.
Worth noting: the unobstructed base eliminates the typical center pedestal that gets in the way during imaging. The pneumatic backrest and stirrup adjustments happen independently, so you can position patients without affecting other table sections.
Key Features
- Three-piece padded top with pneumatic backrest and stirrup adjustment
- Handheld remote for height and Trendelenberg positioning
- Open base design for 360-degree patient access
- Manual footrest adjustable from both sides, raises to 30 degrees
- Dual-column lift system with 550-pound capacity
- Includes paper dispenser, compatible with optional accessories
Specifications for Clinton Multi-Use Ultrasound Table – 80069
Capacity
- Weight Capacity: 550-pound under normal use
Sizes
- Overall Length: 76 in
- Backrest Length: 38 in
- Footrest Length: 12 in
- Overall Width: 27 in
- Backrest Width: 27 in
- Footrest Width: 18.5 in
Intended Use
- Applications: Ultrasound and basic imaging procedures
Height
- Height Adjustment Range: 21.5 in – 37.5 in
Motion
- Trendelenburg/Reverse Trendelenburg: ±15 degrees
Materials
- Base/Frame: All-welded base
- Upholstery: Premium mattress upholstery
- Other Materials: Stainless Steel
