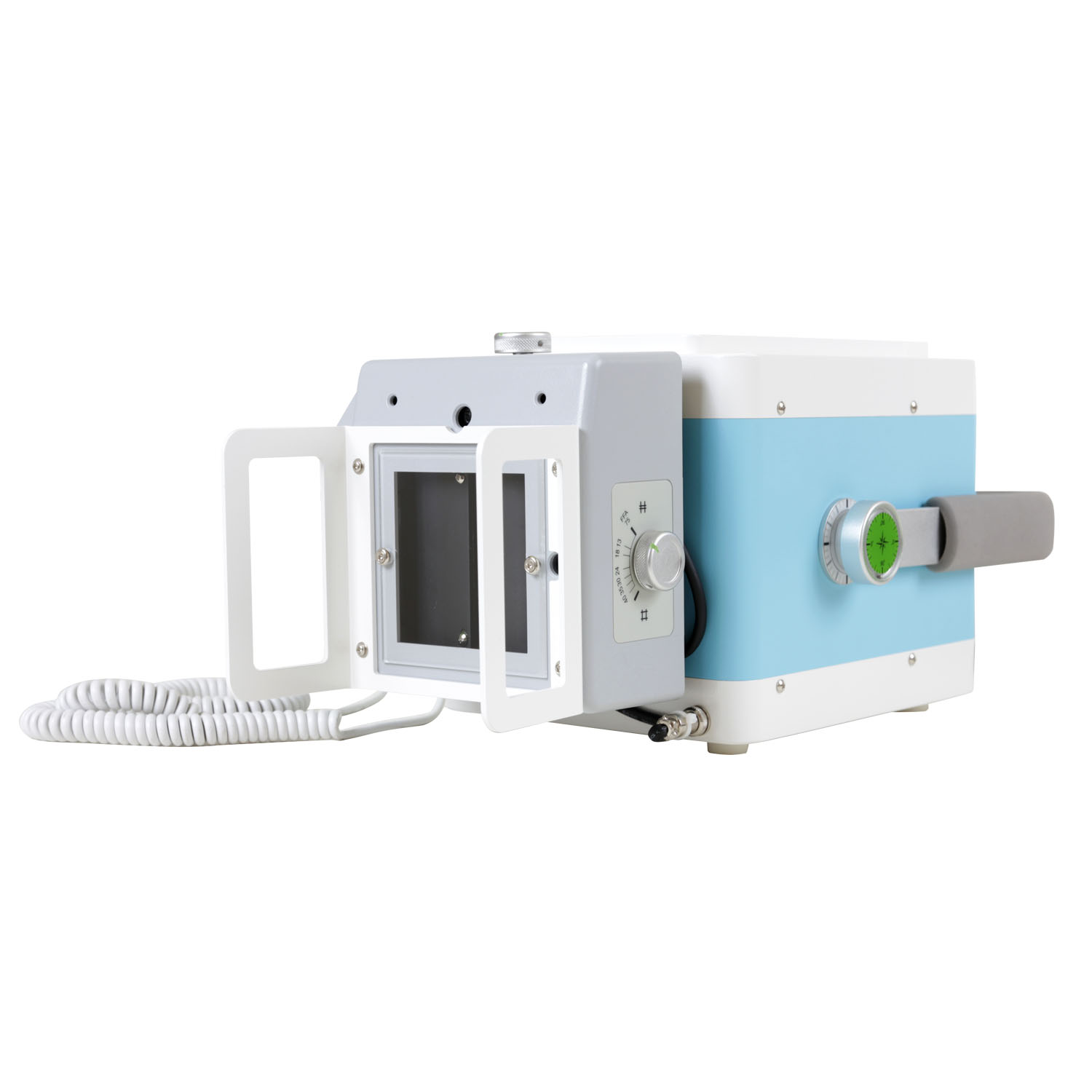

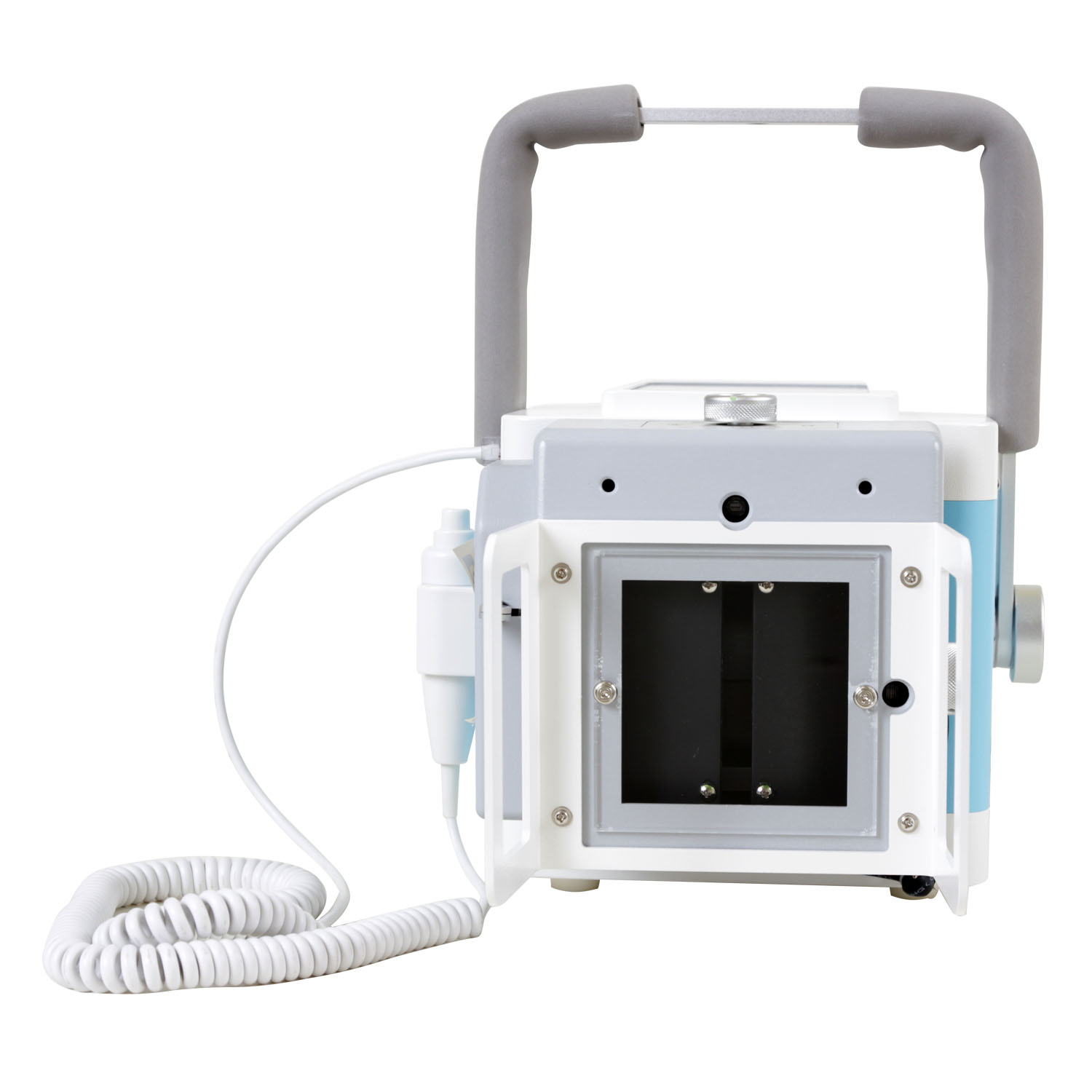

About the Mini Digital X-Ray Generator
This portable generator delivers clinical-grade imaging with 100 kHz high-frequency operation that cuts exposure time and improves image clarity compared to standard 60 Hz units. The rapid kV rise minimizes patient dose while maintaining diagnostic quality across the full 40-90 kV range.

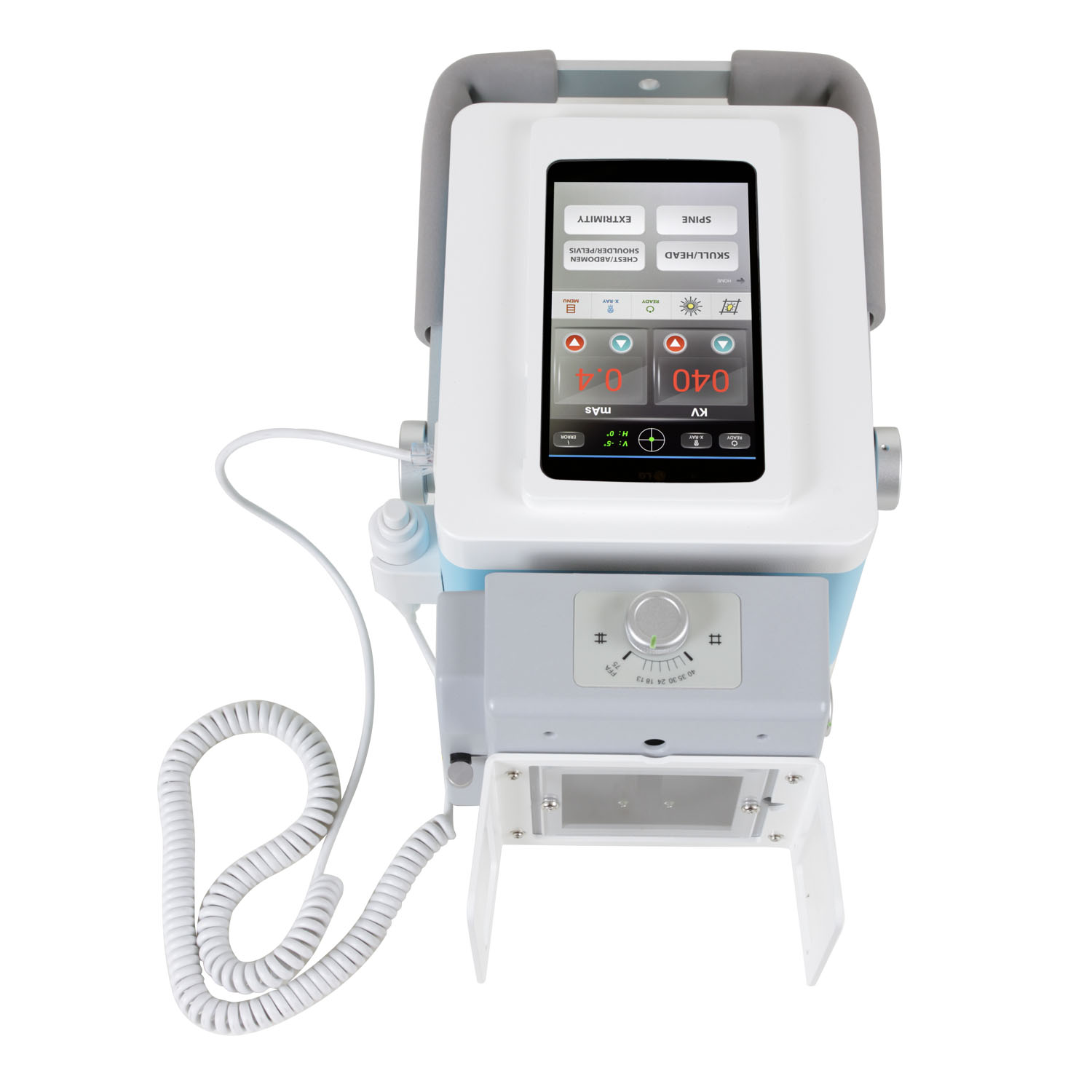

The built-in color touchscreen displays real-time exposure parameters and includes automatic DAP (dose area product) calculations for radiation monitoring compliance. Worth noting: the automatic calibration function reduces daily QA time and keeps your imaging consistent without manual adjustments.
At just over 13 inches long, it fits through standard doorways on the included mobile stand. The solid-body construction handles transport between departments without the fragility issues you’d see with tube-head designs.
Key Features
- Ultra-lightweight portable design with 1.6 kW maximum output power
- Built-in color touchscreen for exposure control and diagnostic data display
- 100 kHz high-frequency operation for rapid kV rise and minimal patient dose
- Automatic calibration and DAP display for radiation safety compliance
- Durable solid-body construction for reliable transport
- Complete system includes x-ray unit, two-step hand switch, and mobile stand
Specifications for Mini Digital X-Ray Generator
General
- Max Output Power: 1.6 kW
- Generator Frequency: 100 kHz
- kV Range: 40 ~ 90 kV
- mA Range: 12 ~ 30 mA
- mAs Range: 0.4 ~ 100 mAs
- Focal Spot: 1.2 mm x 1.2 mm
- Target Angle: 19°
- Anode Heat Storage: 10 kHU
- Input Voltage: 110 V / 220 V
- Phase / Frequency: Single / 50 ~ 60 Hz
- Dimensions: 13.2 in x 6 in x 6.7 in
- Packing Size: 20.5 in x 15.8 in x 13 in
- Net Weight: 15 lb
- Gross Weight: 44 lb
Hand Switch
- Type: Two-step x-ray exposure hand switch
- Working Voltage (AC/DC): 125 V / 30 V
- Working Current (AC/DC): 1 A / 2 A
Mobile Stand
- Arm Angle: 0° ~ 150°
- Max Arm Vertical: 4.6 ft
- Maximum Load Capacity: 66.1 lb
- Wheel Size: 50Ø, 0.9 in
- Weight: 25.6 lb
Materials
- Components: Stainless Steel
Intended Use
- Settings: Imaging and diagnostic radiography
