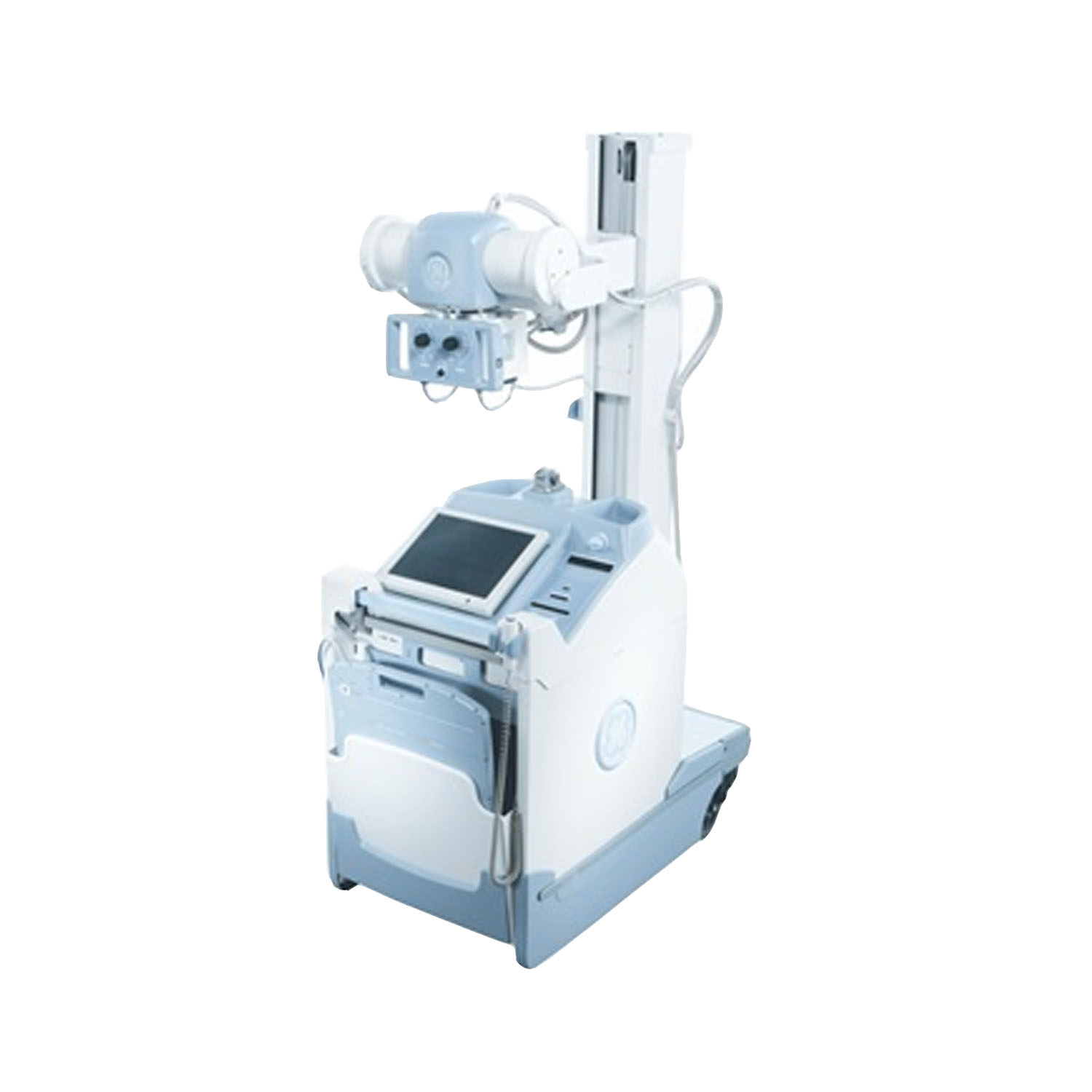

GE Definium AMX 700 X-Ray System
The GE Definium AMX 700 brings cesium iodide flat-panel imaging directly to bedside without the positioning limitations of older mobile C-arms.
Quality Management
Facility & Processes
Biomedical Technicians
About the GE Definium AMX 700 X-Ray System
The GE Definium AMX 700 brings cesium iodide flat-panel imaging directly to bedside without the positioning limitations of older mobile C-arms. You’ll get processed images in seconds rather than waiting for cassette transport and external processing.
The dose area product meter gives you real-time exposure data, while onboard storage handles over 2,000 images before requiring transfer. The 15-inch touchscreen handles technique selection right at the unit, and wireless networking means images reach PACS without physical connections.
The telescoping arm provides 270° column flexibility for tight spaces, and the rechargeable battery pack eliminates cord management in patient areas. Worth noting: the self-stopping bumper system protects both the unit and surrounding equipment during transport.
Key Features
- Portable flat-panel DR detector with cesium iodide technology
- Telescoping arm with 270° column flexibility for maneuvering and tube positioning
- Rechargeable battery pack operation for mobile use
- Images processed within seconds with onboard storage of over 2,000 images
- 15-inch touch screen monitor with touch-activated technique selection
- Dose area product meter included
- Wireless networking option
- Self-stopping bumper for impact protection
Specifications for GE Definium AMX 700 X-Ray System
Contents
- Included Components: Portable DR detector, grid, hand switch, external CD drive, rechargeable battery pack
Materials
- Detector Technology: Cesium Iodide
Sizes
- Image Size: 2022 x 2022 pixels / 40.4 x 40.4 cm (15.9 x 15.9 in)
- Detector Thickness: 2.7 cm (1.1 in)
- Detector Width: 46.5 cm (18.3 in)
- Detector Height: 58.5 cm (23 in)
Tube Positioning
- Maximum Focal Spot Distance: 201.2 cm (79.2 in)
- Minimum Focal Spot Distance: 62.4 cm (24.6 in)
- Vertical Travel: 138.4 cm (54.5 in)
- Horizontal Travel: 40.6 cm (16.4 in)
- Maximum Horizontal Reach: 107.6 cm (42.4 in)
- Minimum Horizontal Reach: 67.0 cm (26.4 in)
X-Ray Source
- Focal Spot: 0.8 mm
- Target Angle: 14°
- Rotating Anode: 3 in; 3,000 rpm
- Tube Model: GE model D2651P
Dimensions
- Overall Width (including front bumper): 64.8 cm (25.5 in)
- Overall Height: 193 cm (76 in)
- Overall Length (including handle): 115.6 cm (45.5 in)
- Width at Midpoint: 64.1 cm (25.25 in)
- Tube Height: 142.2 cm (56 in)
- Base Length: 111.1 cm (43.75 in)
- Full Horizontal Length: 213.4 cm (84 in)
Weight
- Detector Weight: 6 kg (13.2 lbs)
- Unit Weight Without Batteries: 468 kg (980 lbs)
- Shipping Weight With Battery: 559 kg (1,230 lbs)
Capacity
- Image Storage: Can store over 2,000 images
Intended Use
- Applications: Portable/mobile radiographic imaging at point of care
