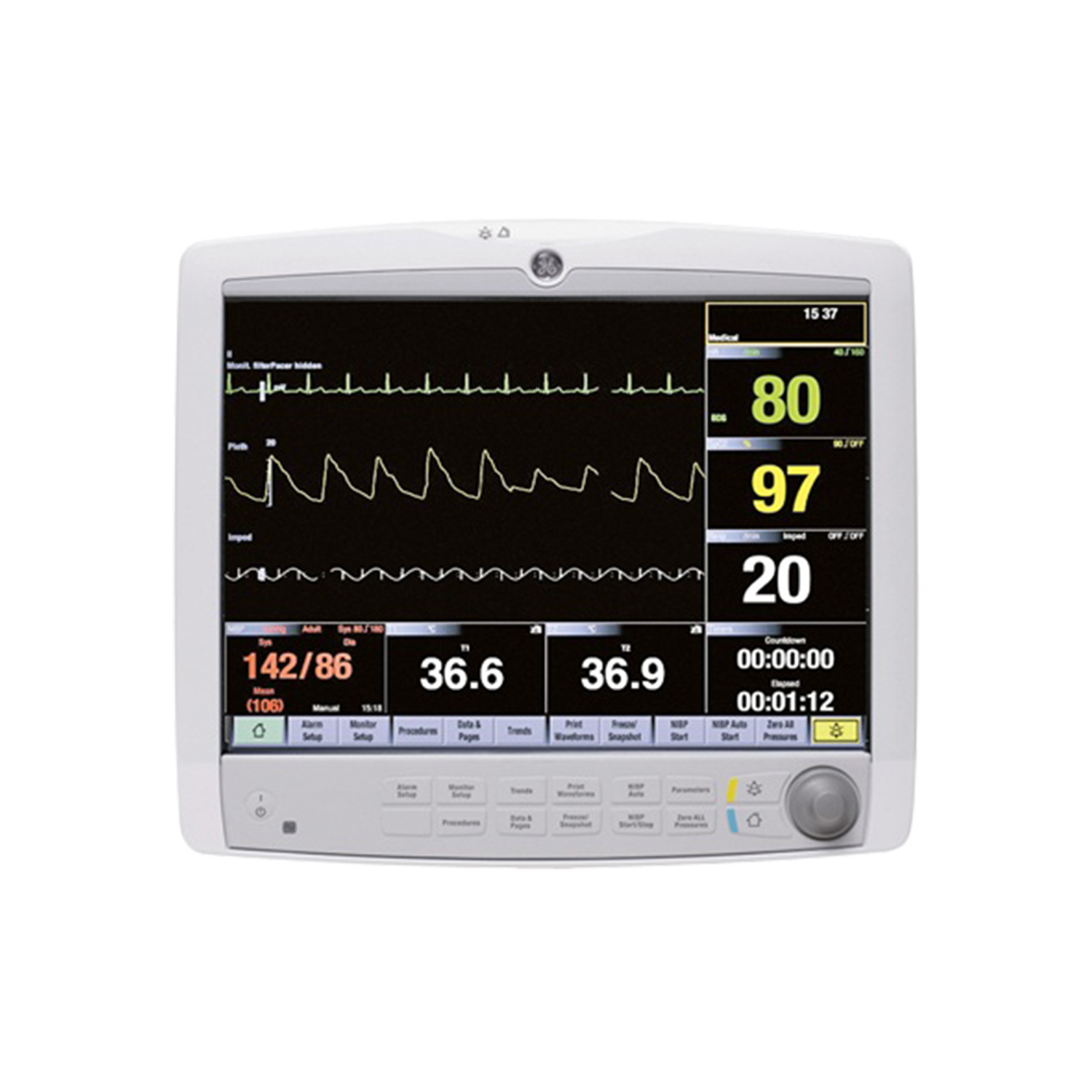

About the GE CARESCAPE B850 Patient Monitor
The GE CARESCAPE B850 Patient Monitor delivers real-time hemodynamic and respiratory monitoring with enterprise-grade connectivity that puts lab results, imaging, and EMR data directly at the bedside. Unlike basic vital signs monitors, the B850 integrates airway modules for gas exchange measurement and maintains continuous trend data during patient transport.
The monitor’s Auto View on Alarm feature automatically shares high-priority alerts across your care unit, while GE’s clinical algorithms including EK-Pro arrhythmia detection and DINAMAP NIBP provide reliable diagnostic data. Worth noting: the patient data module transfers seamlessly between departments, so you won’t lose monitoring continuity during intra-hospital moves.
Care-area specific software packages adapt the interface for OR, PACU, CCU, NICU, and ED workflows. The HD display shows configurable waveforms with beat-to-beat trending, and integrated USB ports accept keyboards, barcode readers, and other workflow tools without adapter cables.
Key Features
- Airway modules with gas exchange measurement for respiratory monitoring
- Enterprise connectivity with HL7 integration for labs, imaging, and EMR access
- Patient data module maintains trend data during transport
- GE EK-Pro algorithms with 12SL diagnostic ECG and MUSE communication
- Auto View on Alarm shares high-priority alerts across care units
- HD visualization with configurable waveform displays and trending
- Care-area specific software for OR, PACU, CCU, NICU, and ED workflows
- Integrated USB ports and optional hard-key controls
Specifications for GE CARESCAPE B850 Patient Monitor
Size
- Dimensions: 3.6 in H x 15.8 in W x 13.4 in D (9.1 cm H x 40.1 cm W x 34 cm D)
Weight
- Weight: 16.5 lbs (7.5 kg)
Power
- Power Consumption: 300 Watts (max)
- Power Requirements: 100 to 240 VAC, 50 – 60 Hz
- Heat Dissipation: 1024 BTU/hour (max)
Processor
- Processor: Intel 423 embedded
Protection
- Degree Of Protection Against Ingress Of Water: IPX1
I/O Connectors
- Ethernet: 2 RJ45 for CARESCAPE Network MC and CARESCAPE Network IXE
- Port/Tram-Net: 2 DB9F for CARESCAPE Patient Data Module, Frame or Tram-Rac
- Serial Port: 2 DB9M
- Video: 1 DVI-I, 1 DVI-D (optional third video with additional card)
- USB: 4 USB 2.0
- M-Port: 4 RJ45
Networking
- Compatibility: CARESCAPE Network
- Features: Peer-to-peer communication with AVOA functionality, centralized viewing and remote alarm management
- Network Type: LAN
Software
- Main Software: Care-area specific software versions (OR, PACU, CCU, ED, NICU)
- Other Software Options: Extended software options specific to each main package
- Upgradeability: CARESCAPE Life Upgrade Program
Environmental
- Operating Temperature: 50 to 95°F (10 to 35°C)
- Storage/Transport Temperature: -4 to 140°F (-20 to 60°C)
- Operating Humidity: 15 to 90% (non-condensing)
- Storage Humidity: 10 to 90% (non-condensing)
- Operating Altitude: 700 to 1060 hPa; 3011 to -382 meters
- Storage/Transport Altitude: 500 hPa to 1060 hPa; 5,572 to -382 meters
Illumination
- Illumination: conventional; fiber optic
Materials
- Components: stainless steel
