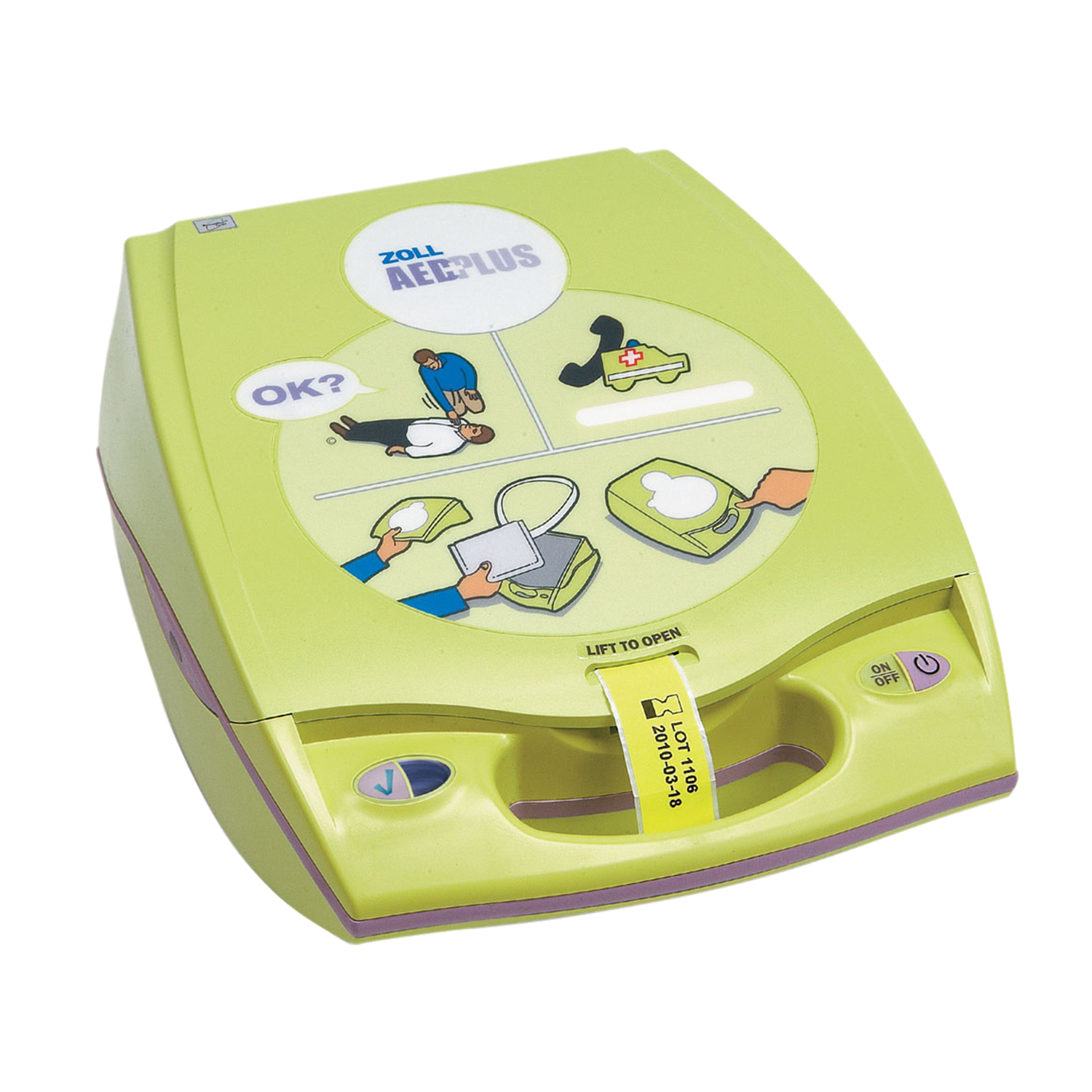

Zoll AED Plus Defibrillator

Defibrillator

• Waveform: Rectilinear Biphasic
• Energy Selection: Automatic preprogrammed selection (120J, 150J, 200J)
• Charge Hold Time: 30 seconds
• Charge Time: Less than 10 seconds with new batteries
• Patient Safety: All patient connections are electrically isolated

CPR

• Metronome Rate: Variable 60 to 100 CPM
• Compression Depth: 1/2 to 3 inches (1.3 to 7.8 cm)
• Defibrillation Advisory: Evaluates electrode connection and patient ECG to determine if defibrillation is required
• Shockable Rhythms: Ventricular fibrillation with average amplitude >100 microvolts and wide complex ventricular tachycardia with rates greater than 150 BPM

Electrodes

• Types: ZOLL CPR-D padz or stat padz II
• CPR-D Padz Shelf Life: 4 years
• Conductive Gel: Polymer Hydrogel
• Conductive Element: Tin
• Impedance Class: Low
• Cable Length: 36 in (91 cm)
• Sternum Conductive Gel Area: 12.3 sq in (79.0 sq cm)
• Apex Conductive Gel Area: 12.3 sq in (79.0 sq cm)
• Complete Assembly Folded Size: 7.6 × 7.0 × 1.5 in (19.4 × 17.8 × 3.8 cm)

Display

• Format: Optional LCD with Moving Bar
• Size: 2.6 × 1.3 inches (6.6 × 3.3 cm)
• Viewing Time: 2.6 seconds
• Sweep Speed: 25 mm/sec

Battery & Power

• Battery Type: User replaceable (10 × Type 123A Photo Flash lithium manganese dioxide)
• Battery Capacity: Typical new (20°C) = 5 years (300 shocks) or 1.5 hours continuous monitoring/defibrillation
• End of Life Indication: Red X (typical remaining shocks = 100, 0.5 hours continuous)

Physical

• Device Size: 5.25 (H) × 9.50 (W) × 11.50 (D) inches (13.3 × 24.1 × 29.2 cm)
• Weight: 6.7 lbs. (3.1 kg)

Performance & Measurement

• Patient Impedance Measurement Range: 0 to 300 ohms

Environmental

• Operating Temperature: PS Model: 32° to 122°F (0 to 50°C); PA Model: 50° to 104°F (10 to 40°C)
• Storage Temperature: PS Model: -22° to 158°F (-30 to 70°C); PA Model: 32° to 122°F (0 to 50°C)
• Humidity: 10 to 95% relative humidity, non-condensing
• Vibration: MIL Std. 810F, Min. Helicopter Test
• Shock: PS Model IEC 68-2-27; 100G; PA Model IEC 68-2-27; 50G
• Altitude: PS Model -300 to 15,000 ft (-91m to 4573m); PA Model -300 to 7,500 ft (-91m to 2287m)
• Ingress Protection: IP-55

Standards & Classification

• Device Classification: Class II and internally powered per EN60601-1
• Design Standards: Meets applicable requirements of UL 2601, AAMI DF-39, IEC 601-2-4, EN60601-1, IEC60601-1-2, ANSI/AAMI/ISO DF-39-1993

Computer Configuration

• PC Requirements: Windows 98/2000/NT/XP, IBM-compatible PII with 16550 UART, 64MB RAM, VGA monitor, CD-ROM drive, IrDA port, 2MB disk space
