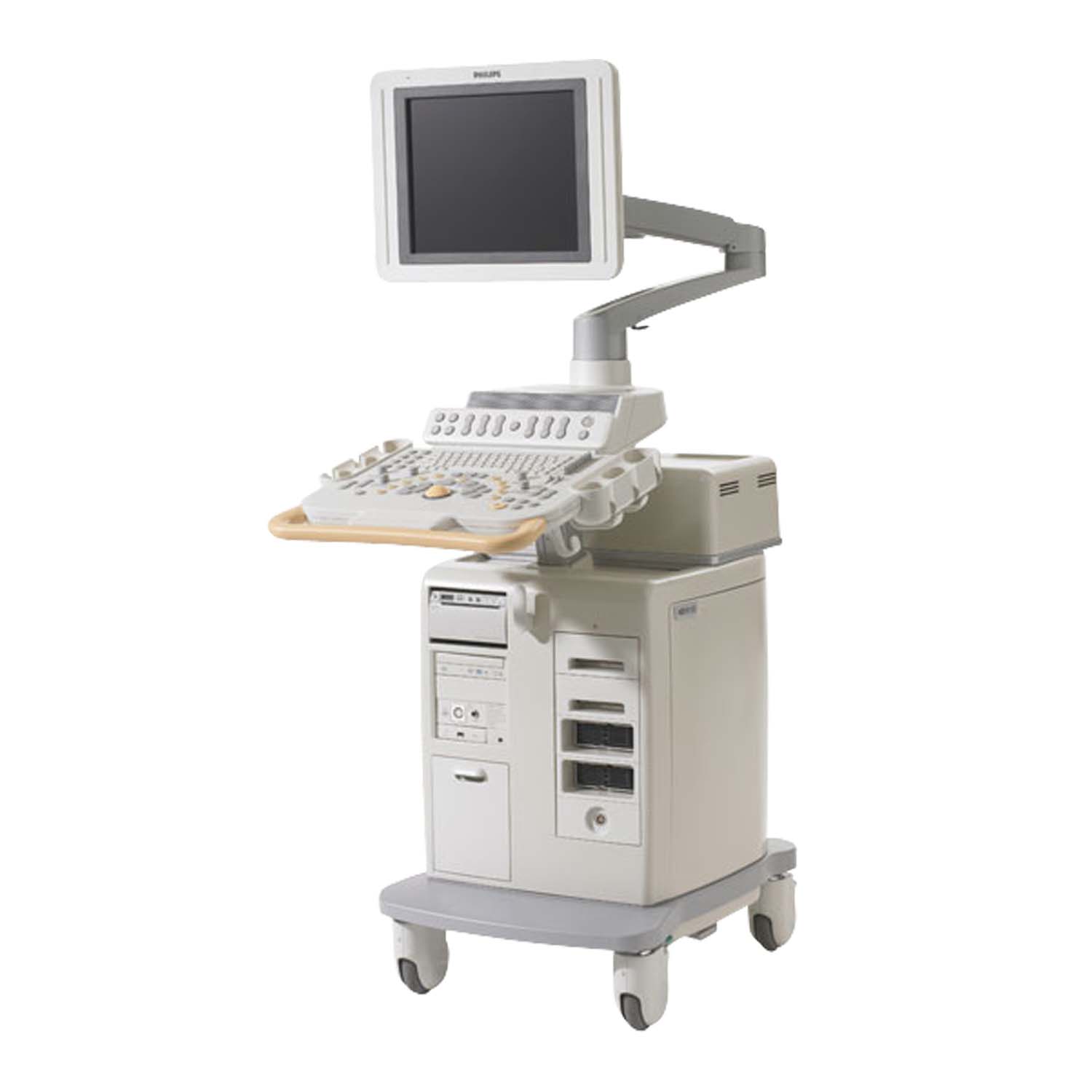

Philips HD-7XE Ultrasound
The Philips HD-7XE handles multi-specialty imaging from cardiac to abdominal studies with iSCAN Intelligent Optimization that automatically adjusts settings.
Quality Management
Facility & Processes
Biomedical Technicians
About the Philips HD-7XE Ultrasound
The Philips HD-7XE handles multi-specialty imaging from cardiac to abdominal studies with iSCAN Intelligent Optimization that automatically adjusts settings based on exam type and patient anatomy. You’ll get consistent image quality without the manual tweaking that slows down busy departments.
Four transducer ports mean you can keep your most- probes connected and ready, while dual USB ports and integrated CD-R/RW drive give you multiple backup options for patient data. The short version: fewer cable swaps and faster turnaround between patients.
The control panel adjusts for height and swivel, and there’s an integrated footrest that actually makes long scanning sessions more comfortable. Four-way swivel wheels move smoothly across different floor surfaces without the jerky rolling you get with cheaper casters.
Key Features
- iSCAN Intelligent Optimization for automatic image adjustment
- Four transducer ports for multi-probe readiness
- Dual USB ports and CD-R/RW drive for data management
- Adjustable control panel with height and swivel positioning
- Four-way swivel wheels for smooth mobility
- Integrated footrest for operator comfort
Specifications for Philips HD-7XE Ultrasound
Intended Use
- Applications: Abdominal; Small parts and superficial; Pediatric; Musculoskeletal; Neonatal; Urology; Obstetrical; Gynecological and fertility; Prostate; Vascular; Transcranial Doppler; Cardiac
Image Presentation
- Orientation: Up or down; Left or right
- Duplex Formats: Multiple duplex image formats (1/3-2/3, 1/2-1/2, 2/3-1/3)
- Depth: Up to 30 cm (exam and transducer specific)
Imaging Modes
- Modes: 2D Mode; Microfine 2D Focusing
- Features: Frame rate selection; Eight-level digital reconstructed zoom with pan; Variable level high-definition zoom; Image orientation marker; Cineloop image review (up to 1,000 B/W frames); Persistence adjustable in real time and Cineloop review; Selectable compression curves; Sector size and steering control
Connectivity
- Ports: Two USB ports; Four transducer ports
- Storage: 80 GB hard drive space; Standard CD-R/RW; Direct digital storage of system configuration backup to USB or DVD/CD; Direct digital storage of single frame color and B/W images to internal hard disk, USB flash and compact disk
Dimensions
- Depth: 40.3 in / 102.4 cm
- Height (adjustable): 51.8 – 58.4 in / 131.5 – 148.3 cm
- Control Panel Height (adjustable): 32.3 – 38.8 in / 82 – 98.6 cm
- Width: 21.6 in / 55 cm
- Weight: 165 lbs / 75 kg (no peripherals)
Power Requirements
- Power: 1150 VA
- Power Consumed: 600 VA
- Frequency: 50 to 60 Hz
- Voltage: 100 to 240 VAC
Materials
- Components: Stainless Steel
Illumination
- Type: Conventional; Fiber Optic
