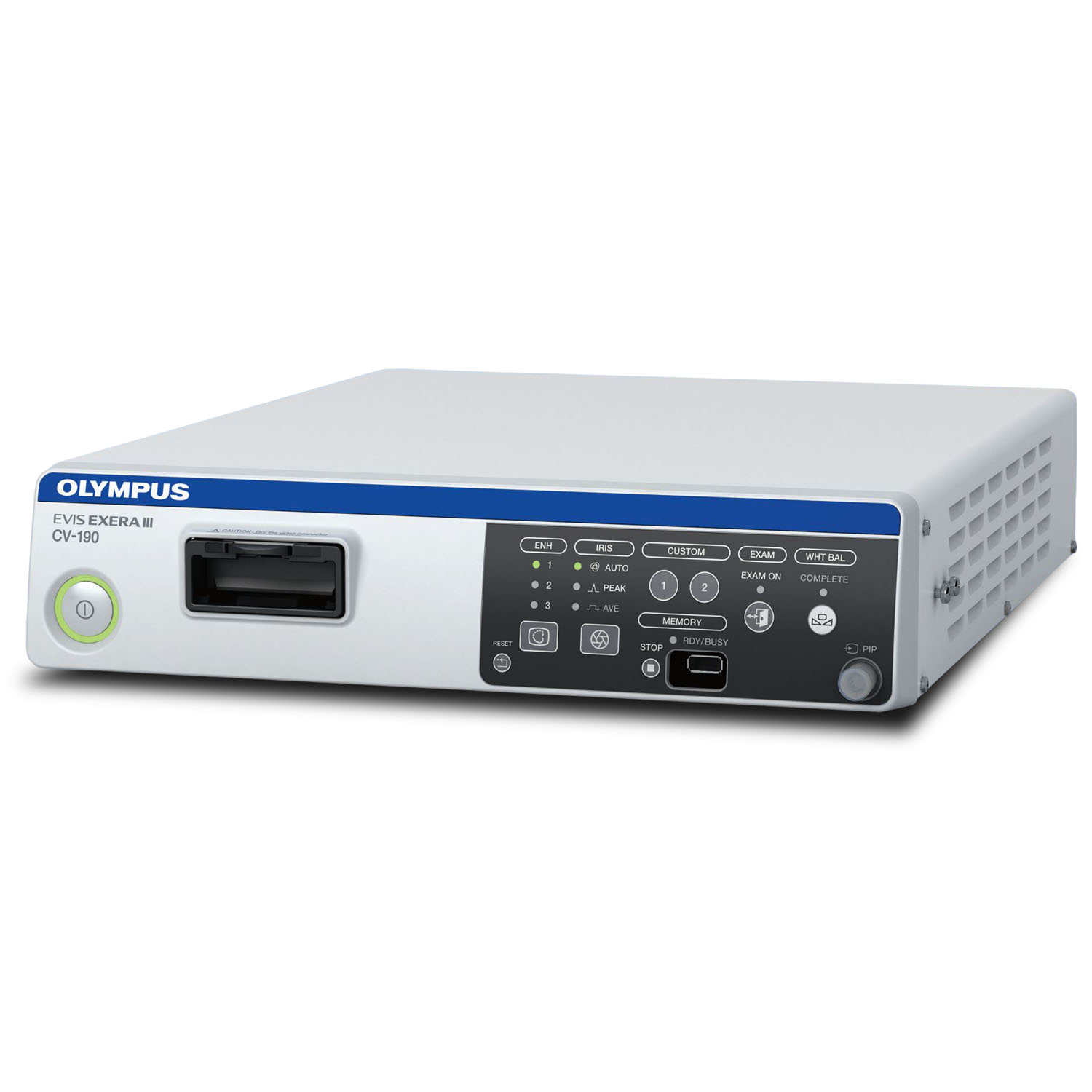

Olympus EVIS EXERA III CV-190 Video System Center
The CV-190’s enhanced image processing delivers noticeably better color reproduction and cuts down image noise compared to earlier endoscopic processors.
Quality Management
Facility & Processes
Biomedical Technicians
About the Olympus EVIS EXERA III CV-190 Video System Center
The CV-190’s enhanced image processing delivers noticeably better color reproduction and cuts down image noise compared to earlier endoscopic processors. The pre-freeze function buffers rapid image sequences and automatically saves the sharpest frame, which means you won’t miss critical visual details during fast-moving procedures.
Multiple output options including HD-SDI, DVI, and analog support different monitor configurations without additional adapters. The one-step connector speeds up pre-procedure setup, while link connections to peripheral devices reduce cable clutter in the OR. Worth noting: the system supports both 16:9 and 16:10 monitor formats, so it’ll work with your existing display setup.
Push-button focus selection lets you adjust the point of focus quickly during procedures. Documentation is straightforward with portable memory support and DV output compatibility.
Key Features
- Enhanced image processing for improved color reproduction and reduced noise
- Pre-freeze function captures and saves the sharpest frame automatically
- One-step connector for faster pre-procedure setup
- Multiple output formats: analog, HD-SDI, and DVI
- Push-button selectable point of focus
- Link connections to peripheral devices reduce cable complexity
- Compatible with portable memory and DV documentation devices
Specifications for Olympus EVIS EXERA III CV-190 Video System Center
Power
- Power Supply Voltage: 100 – 240 V AC (NTSC) / 220 – 240 V AC (PAL); within ± 10%
- Frequency: 50/60 Hz; within ± 1 Hz
- Consumption Electric Power: 150 VA
Size
- Dimensions: 14.6 in W x 3.4 in H x 19.3 in D
Weight
- Weight: 23.6 lb
Illumination
- Examination Lamp: Xenon short-arc (ozone-free) 300 W
- Average Lamp Life: Approximately 500 hours of continuous use
- Ignition Method: Switching regulator
- Brightness Adjustment: Light-path diaphragm control
- Cooling: Forced-air cooling
- Intensity Mode: Normal or high intensity
- NBI Conversion: Available
- Color Conversion: Possible using special-purpose filter
- Emergency Lamp: Halogen lamp (within mirror) 12 V 35 W
- Average Emergency Lamp Life: Approximately 500 hours
Compatibility
- Compatible Scopes: EVIS 100/130/140/150 Series; EVIS EXERA 160 Series; EVIS EXERA II 180 Series; GI/BF/VISERA Series scopes; EVIS EXERA III 190 Series
- Video Outputs: Analog, HD-SDI, DVI
Intended Use
- Settings: Endoscopic suite, Operating room, Gastroenterology, Urology
