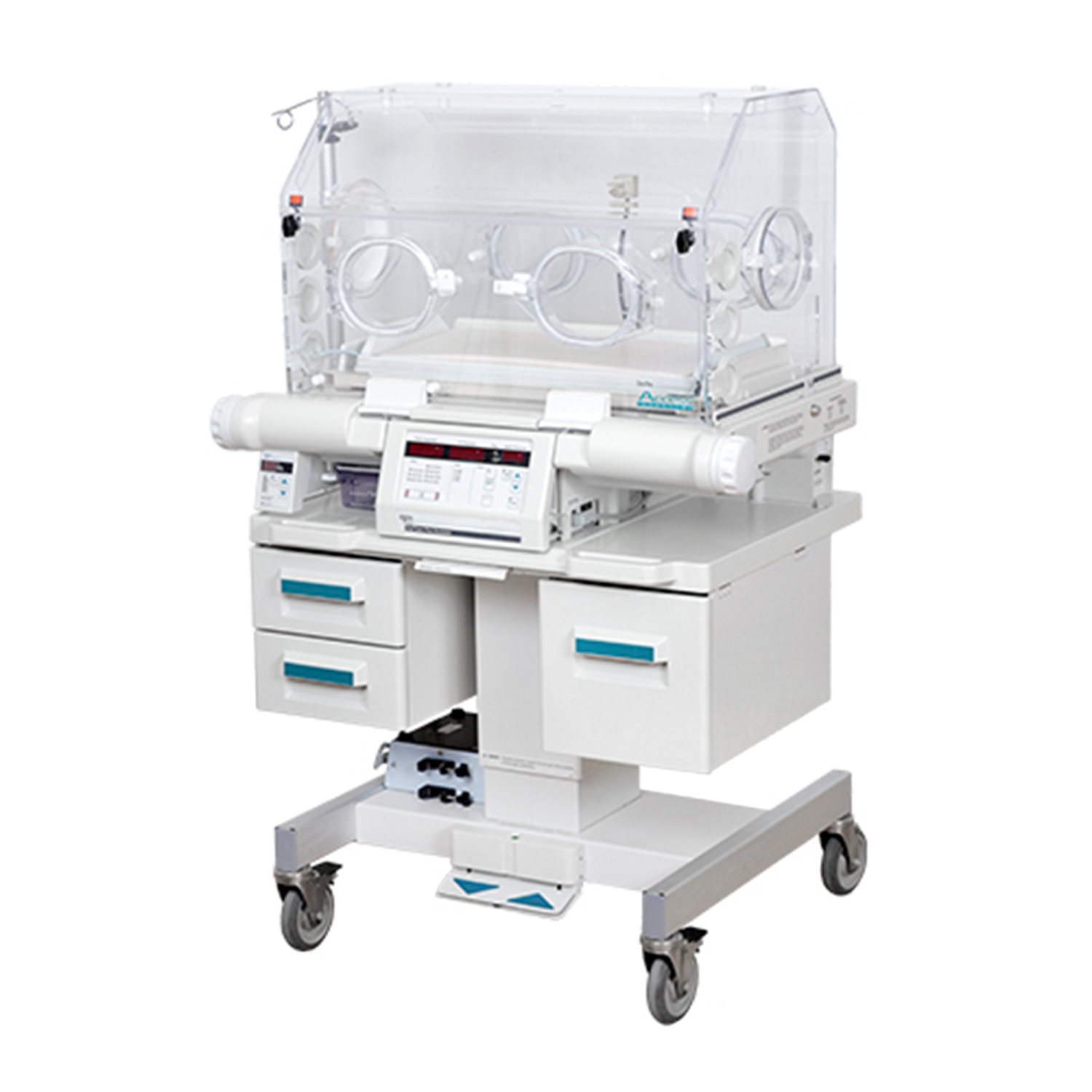

Ohmeda Care Plus Infant Incubator

Dimensions

• Incubator with Elevating Base Height: 54 – 62 in (136.2 – 157.5 cm)
• Elevating Base Mattress-to-Floor Height: 35 – 43 in (88.9 – 109.2 cm)
• Depth: 28 in (71.1 cm)
• Width: 33 in (83.8 cm)
• Weight (Elevating Base): 195 lbs (89 kg)
• Incubator with Stationary Pedestal Height: 53 in (135.9 cm)
• Weight (Stationary Pedestal): 180 lbs (80 kg)
• Incubator with Cabinet Height: 55 in (141 cm)
• Incubator with Cabinet Depth: 25.5 in (64.6 cm)
• Incubator with Cabinet Width: 35 in (88.9 cm)
• Weight (Cabinet): 185 lbs (84 kg)

Contents

• Drawer Package Overall: 11 x 11.5 x 18.25 in (28 x 29 x 46 cm)
• Single Deep Drawer: 10 x 9 x 16.5 in (25 x 23 x 42 cm)
• Dual Drawer: 4.5 x 9 x 16.5 in (11 x 23 x 42 cm)

Materials

• Components: Stainless Steel

Sizes

• Mattress: 13.7 x 25.6 in (34.8 x 65 cm)
• Mattress to Hood: 16 in (41 cm)
• Door Height: 11 in (28 cm)
• Positions: Continuous from 0° to 12°
• Port Holes: 6
• Tubing Ports: 6

Mobility

• Casters: 5 inch diameter, 2 locking, 2 non-locking

Electrical

• Line Voltage: 120 VAC 60 Hz
• Models: 115 V ± 10% 5.7 amps
• Nominal Power Consumption: 450 watts at maximum heater output
• Line Voltage Compensation: Input voltage is monitored and heat output adjusted
• Leakage Currents: Less than 100 micro amps on 120V units
• Leakage at Patient Probe: Less than 50 micro amps on 120V units

Environment

• Operating Temperature Range: 68° – 86°F (20° – 30°C)
• Storage Temperature Range: 13° – 140°F (-25° – 60°C)
• Operating Humidity Range: 0 to 90%

System Controls

• Microprocessor-Based Control System: Self-test functions performed at power-up and during normal operation
• Patient Control (Servo) Mode Range: 95° – 98.6°F (35° – 37°C)
• Air Control (Manual) Mode Range: 73.4° – 98.6°F (20° – 37°C)
• With Control Panel Override Switch: Up to 102.2°F (39°C)
• Air Velocity: Average < 10 cm/sec with inner wall
• Temperature Variability: Less than ± 0.2°F (0.1°C)
• Resolution: ± 0°F (0.1°C)
• Probe Interchangeability: ± 0.2°F (0.1°C)

Oxygen and Humidification

• Average Oxygen Input Concentration Range: 5 L/min: 25-45% | 10 L/min: 35-65% | 15 L/min: 45-70%
• Humidification (Standard): 10 to 75% dependent on nursery environment and incubator temperature setting
• Humidification (Servo): 40 to 85% regardless of nursery environment and incubator temperature setting

Standards

• Conforms To: IEC 601.1, UL 544 and CSA 22.2 No. 125 requirements
