Certified Refurbished

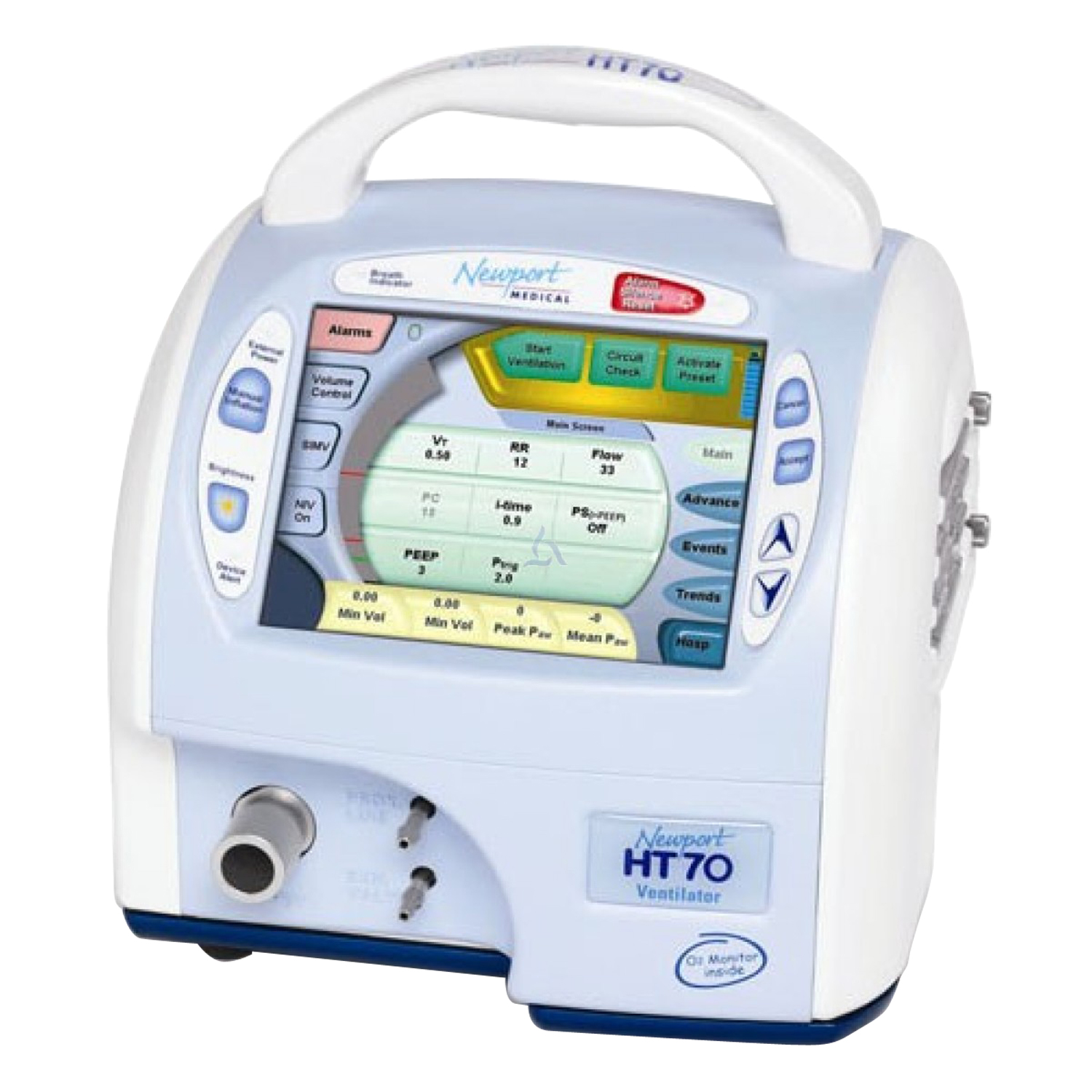

Newport HT70 Respiratory Ventilator

The Newport HT70 lets you swap batteries mid-ventilation without interrupting patient care.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The Newport HT70 lets you swap batteries mid-ventilation without interrupting patient care. The hot-swappable system means no downtime during battery changes, which matters during extended transports or when you can’t easily access AC power.

Built-in oxygen monitoring tracks FiO2 levels and alerts you to delivery issues before they become clinical problems. The full-color touchscreen gives you application-specific interfaces rather than generic menus, and you can set custom presets for your most common ventilation protocols. Worth noting: it handles both invasive and noninvasive modes across transport, ICU, and step-down settings.

At 15.4 pounds, it’s portable enough for frequent moves but sturdy enough for daily hospital use. The 5.2-inch screen stays readable in various lighting conditions.

Key Features

  • Hot-swappable battery system for uninterrupted ventilation during battery changes
  • Built-in oxygen monitoring with FiO2 alarms
  • Full-color touchscreen with customizable presets and application-specific interfaces
  • Flow or pressure triggering options for patient synchrony
  • Invasive and noninvasive ventilation modes
  • Transport-ready construction for multi-environment use

Dimensions

  • Width: 9.75 in (24.74 cm)
  • Depth: 11 in (27.94 cm)
  • Height (includes handle): 10.25 in (26.04 cm)
  • Weight: 15.4 lbs (6.9 kg)
  • Touch-Screen: 5.2 in x 3.9 in (13.20 cm x 9.90 cm)

Capacity

  • Battery Use Time Estimator: Up to 10 hours (hot-swappable)

Parameters

  • Paw: Peak, Mean, Base
  • VTI / VTE: Inspiratory/Expiratory Tidal Volume
  • MVI / MVE: Inspiratory/Expiratory Minute Volume
  • Peak Inspiratory Flow: Specified in device parameters
  • RR Tot: Total Respiratory Rate
  • O2 Concentration: 21 to 100%

Settings

  • Modes: A/CMV, SIMV, SPONT
  • Ventilation Types: Pressure or Volume
  • VT: 50 to 2,200 mL
  • RR: 1 to 99 breaths/min
  • Insp Time: 0.1 to 3.0 sec
  • PEEP / CPAP: 0 to 30 cm H2O / 0 to 30 mbar
  • PS: 0 to 60 cm H2O / 0 to 60 mbar
  • Flow: 6 to 100 L/min
  • I: E Ratio: 1:99 to 3:1
  • PC: 5 to 60 cm H2O / 5 to 60 mbar
  • Ptrig: -9.9 to 0 cm H2O
  • Flow Trigger: 0.0 to 10.0 L/min or Off
  • Bias Flow (NIV off): 7 L/min w/ PEEP
  • Bias Flow (NIV on): 3 to 30 L/min w/ PEEP
  • PS Max iTime: 0.1 to 3.0 sec
  • PS % Exp. Threshold: 5 to 85%
  • Slope Rise: 1 to 10
  • Flow Wave Pattern: Square or Descending
  • Manual Inflation: 3 sec maximum
  • O2 Cylinder Use: Battery and cylinder use estimators provided

Compatibility

  • Intended Patient Range: Pediatric (from approximately 5 kg) to Adult
