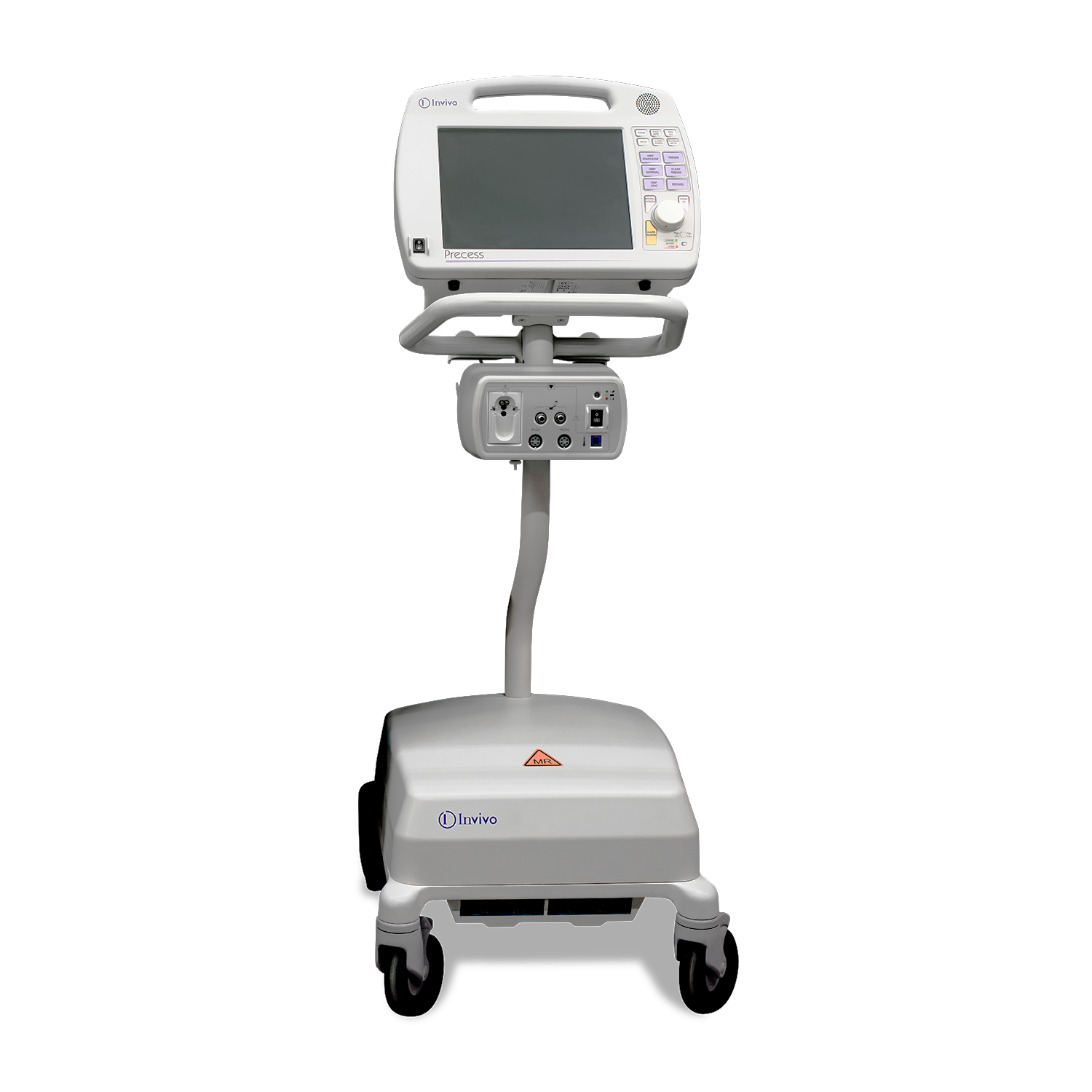

INVIVO Precess MRI 3160
INVIVO Precess MRI 3160 provides wireless ECG and SpO2 monitoring during MRI scans. Eliminates cable management issues with 2.4 GHz communication.
Quality Management
Facility & Processes
Biomedical Technicians
About the INVIVO Precess MRI 3160
Monitor patients wirelessly throughout MRI procedures without compromising image quality or safety protocols. The INVIVO Precess MRI 3160 eliminates the cable management headaches and RF interference issues that plague traditional hardwired monitoring systems in the scanner room.
You get continuous ECG and SpO2 monitoring with a wireless color display that maintains 2.4 GHz communication from the scanner room to the control room. The short fiber-optic cables reduce entanglement risk while cardiac and peripheral gating capabilities support both diagnostic and research protocols. Bottom line: your staff can focus on the scan instead of wrestling with cables.
Key Features
- Wireless ECG and SpO2 monitoring
- Remote color display with 2.4 GHz wireless communication
- User-replaceable battery system with smart power management
- Cardiac and peripheral gating for enhanced imaging
- Short fiber-optic and ECG cables minimize entanglement risk
Specifications for INVIVO Precess MRI 3160
Intended Use
- Settings: Hospital; Ambulatory Surgery Center; Plastic Surgery; LTAC; Oral Maxillofacial Surgery (OMS); NGO; EMS; Urgent Care; Operating Room; Critical Care
Capacity
- Power Consumption, Maximum: < 100 Watts
Materials
- Components: Plastic; Stainless Steel; Fiber Optic
Illumination
- Display: Conventional; Fiber Optic
Sizes
- Height: Cart: 48.5 ± 0.5 inches; CRD: 10.4 inches; Wireless ECG module: 4.7 inches; Wireless SpO2 module: 5.5 inches
- Width: Cart: 17.5 ± 0.5 inches; CRD: 15.3 inches; Wireless ECG module: 2.5 inches; Wireless SpO2 module: 2.5 inches
- Depth: Cart: 17.5 ± 0.5 inches; CRD: 4.6 inches; Wireless ECG module: 0.91 inches; Wireless SpO2 module: 0.91 inches
Weight
- Weight: Cart: 75 ± 0.5 lbs; CRD: 20 lbs; Wireless ECG module: 5.4 oz; Wireless SpO2 module: 5.4 oz
Power Requirements
- Operating Voltage Range: 100 to 240 VAC
- Frequency: 47 to 65 HZ
Compatibility
- MRI Compatibility: Compatible to 5,000 Gauss regardless of parameter configuration
