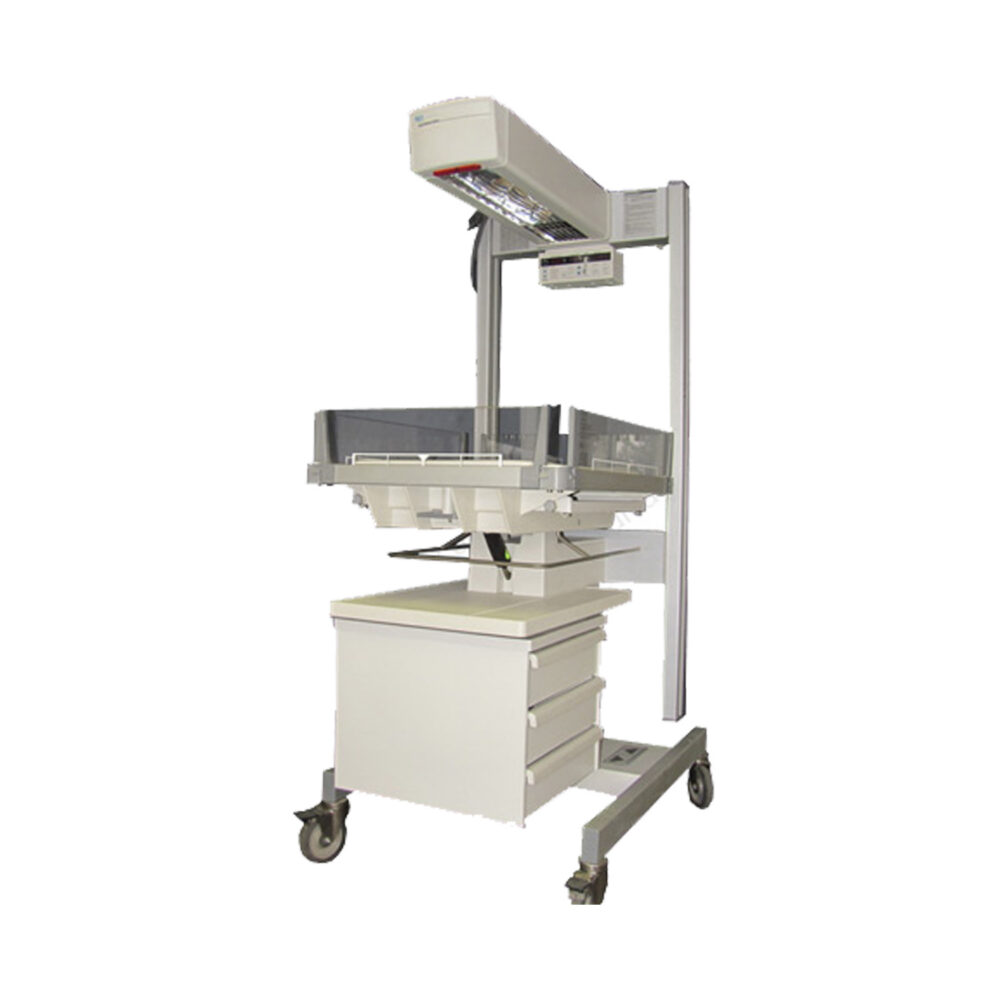

GE Panda iRes Infant Warmer
GE Panda iRes Infant Warmer features hourglass heat profile and integrated monitoring. Combines warming, SpO2, heart rate, and scale in one unit.
Quality Management
Facility & Processes
Biomedical Technicians
About the GE Panda iRes Infant Warmer
The GE Panda iRes delivers uniform heating through its hourglass heat profile, which reduces hot spots on the mattress while keeping caregivers cooler during procedures. Unlike standard warmers that require separate monitoring equipment, this unit integrates SpO2 and heart rate monitoring with an onboard scale, giving you everything in one footprint.
The full-color display consolidates patient data and measurements in a single view, while hands-free alarm silencing cuts down on nuisance alerts during critical moments. Worth noting: the integrated resuscitation capability requires minimal setup, so you’re not scrambling for additional equipment when seconds count.
The compact design fits into tight NICU spaces without sacrificing functionality. Height adjusts from 76 to 86 inches to match your workflow needs.
Key Features
- Hourglass heat profile for uniform mattress coverage and reduced caregiver heat exposure
- Integrated non-invasive SpO2 and heart rate monitoring
- Onboard integrated scale
- Full-color control panel displaying patient information and measurements
- Integrated resuscitation capability with minimal setup
- Hands-free alarm silencing to reduce nuisance alarms
- Available accessory options including multiple drawer packages, elevating base, and integrated x-ray cassette tray
Specifications for GE Panda iRes Infant Warmer
Intended Use
- Settings: NICU; Maternal Ward; NGO
General
- Height: (adjustable) 76 – 86 in (193 – 218 cm)
- Depth: 47 in (119.4 cm)
- Width: 25 in (63.5 cm)
- Footprint: 47 x 25 in (119.4 x 63.5 cm)
- Floor Space: 1,175 sq in (7,582 sq cm)
Weight
- Weight: approx. 220 lbs (100 kg)
- Standard 2 Drawer: 15 lbs (6.8 kg)
- Standard Deep Drawer: 15 lbs (6.8 kg)
Mattress / Bed
- Mattress Size: 26 x 19 x 0.75 in (66 x 48 x 2 cm)
- Bed to Floor (fixed base): 33 – 42.5 in with 1.6 in fixed increments (83.8 – 107.9 cm with 4 cm fixed increments)
- Bed Capacity: Patient weight up to 30 lbs (13.6 kg)
- Bed Tilting: ± 12° continuous tilt; bubble level indicates level bed
Operational Environment
- Operating Temperature Range: 18°C to 30°C
- Operating Humidity: 5% to 75%
- Storage Temperature Range: -25°C to +60°C
- Storage Humidity Range: 0% to 85%
Electrical
- Power Requirements: 115 VAC, 50/60 Hz; 115 V ± 10%; 6.6 Amps
- Alternate Models: 220-240 VAC, 50/60 Hz; 230 V ± 10%; 3.3 Amps
- Nominal Power Consumption: 520 W at max. heater power, max. lighting
Materials
- Components: Stainless Steel
Illumination
- Type: Conventional; Fiber Optic
Sizes
- Options: 0; 1; 2; 3; 4; infant
