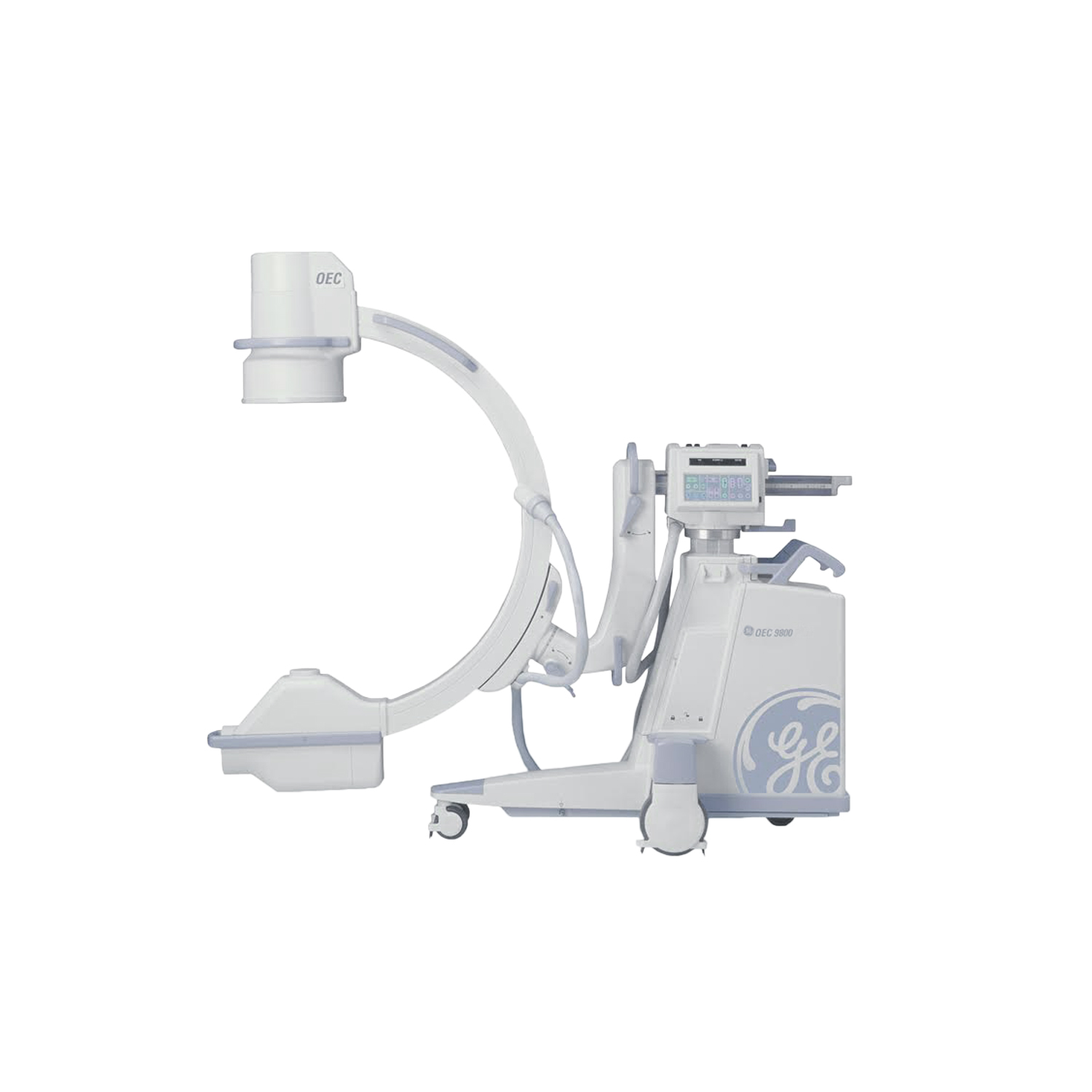

About the GE OEC 9800 C-Arm System
The GE OEC 9800 delivers tri-mode imaging flexibility with 9, 6, and 4.5-inch field options in a single intensifier, eliminating the need to swap components mid-procedure. You’ll get consistent image quality across emergency, OR, and interventional settings where quick setup matters.
Dual 16-inch monitors give your team clear sightlines from multiple angles, while the rotating anode design prevents overheating during lengthy pain management or vascular procedures. The short version: SmartMetal and SmartWindow automatically adjust for implants and positioning without manual tweaking.
Worth noting the SmartView pivot joints actually hold their position once you’ve dialed in your angle. The 360-degree motorized camera rotation means less wrestling with the C-arm when you need different views quickly.
Key Features
- Tri-mode 9-inch image intensifier (9/6/4.5-inch fields)
- Dual 16-inch high-resolution anti-glare monitors
- GE SMART Options: SmartMetal, SmartWindow, AutoTrak
- Rotating anode design prevents overheating
- SmartView off-axis pivot joints for precise positioning
- 360-degree motorized CCD camera rotation
- Multiple imaging modes: pulse fluoro, high level fluoro, digital cine
Specifications for GE OEC 9800 C-Arm System
Intended Use
- Settings: ER, OR, office-based pain management
Illumination
- Type: Conventional; Fiber Optic
Contents
- Standard Imaging Chain: 9-inch image intensifier (Tri-mode: 9 in / 6 in / 4.5 in)
- Monitors: Dual 16-inch high-resolution monitors
- Camera: Onboard high-resolution CCD camera with 360-degree motorized rotation
Compatibility
- Imaging Modes: Pulse Fluoro; High Level Fluoro; Digital Cine Pulse Mode
Materials
- Construction: Stainless Steel
Sizes
- Image Intensifier Sizes: 9 in; 6 in; 4.5 in
