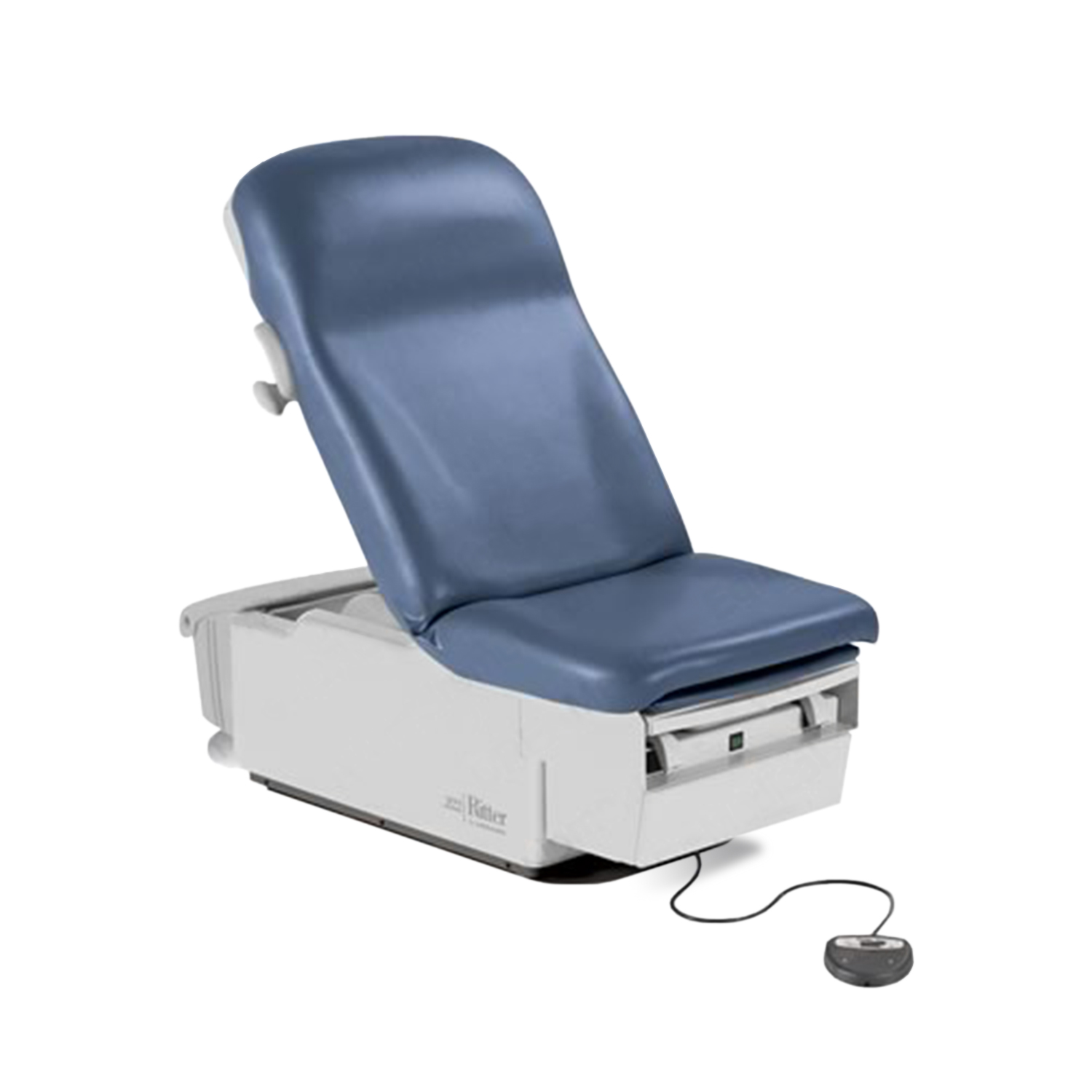

About the Midmark Ritter 223 Barrier-Free Power Exam Table
The MidMark Ritter 223 drops down to just 18 inches, giving wheelchair users, elderly patients, and expectant mothers barrier-free access that standard exam tables simply can’t match. At full extension, it reaches 37 inches for optimal physician positioning during procedures.
The foot-operated controls keep your hands free during patient positioning, while the powered back section moves simultaneously with the base to maintain patient comfort. Worth noting: the hideaway stirrups lock in four lateral positions, and the foot extension adds crucial length when you need it.
Paper storage stays hidden under the headrest, accommodating up to four rolls. The built-in pillow eliminates the need for separate positioning accessories, and everything operates smoothly even with patients up to 400 pounds.
Key Features
- 18-inch minimum height for barrier-free patient access
- Foot-operated controls for hands-free positioning
- Powered back section with simultaneous base movement
- Hideaway stirrups with four-position locking
- Hidden paper roll storage for up to four rolls
- Foot extension shelf expands table to 72 inches
- Built-in pillow and 400-pound weight capacity
Specifications for Midmark Ritter 223 Barrier-Free Power Exam Table
Capacity
- Patient Load Rating: 400 lbs (181.4 kg)
Sizes
- Length with Footrest Extended: 72 inches (182.9 cm)
Intended Use
- Settings: Exam rooms for practices treating elderly, expectant mothers, and patients with disabilities
Contents
- Storage: Space for up to four 21 × 3.5 inch diameter paper rolls
- Accessories Included: Built-in pillow, polystyrene treatment pan, Exam Assistant Drawer System™, leveling screws
Options
- Upholstery Top (Seamless): 57.5 × 26.5 inches (146.1 × 67.3 cm)
- Upholstery Top (Cut and Sewn, Economy): 54 × 26.5 inches (137.2 × 67.3 cm)
- Pelvic Tilt: 5 degrees
- Drawer Heater: 40 watt
- Electrical Receptacle: 115 VAC 5 AMPS Max.; duplex, hospital grade receptacle on left side
Illumination
- Type: Conventional; Fiber optic
