GE Voluson S8 OB/GYN Ultrasound
The GE Voluson S8 provides real-time 4D imaging that captures fetal movement and facial expressions beyond what 2D systems offer.
Quality Management
Facility & Processes
Biomedical Technicians

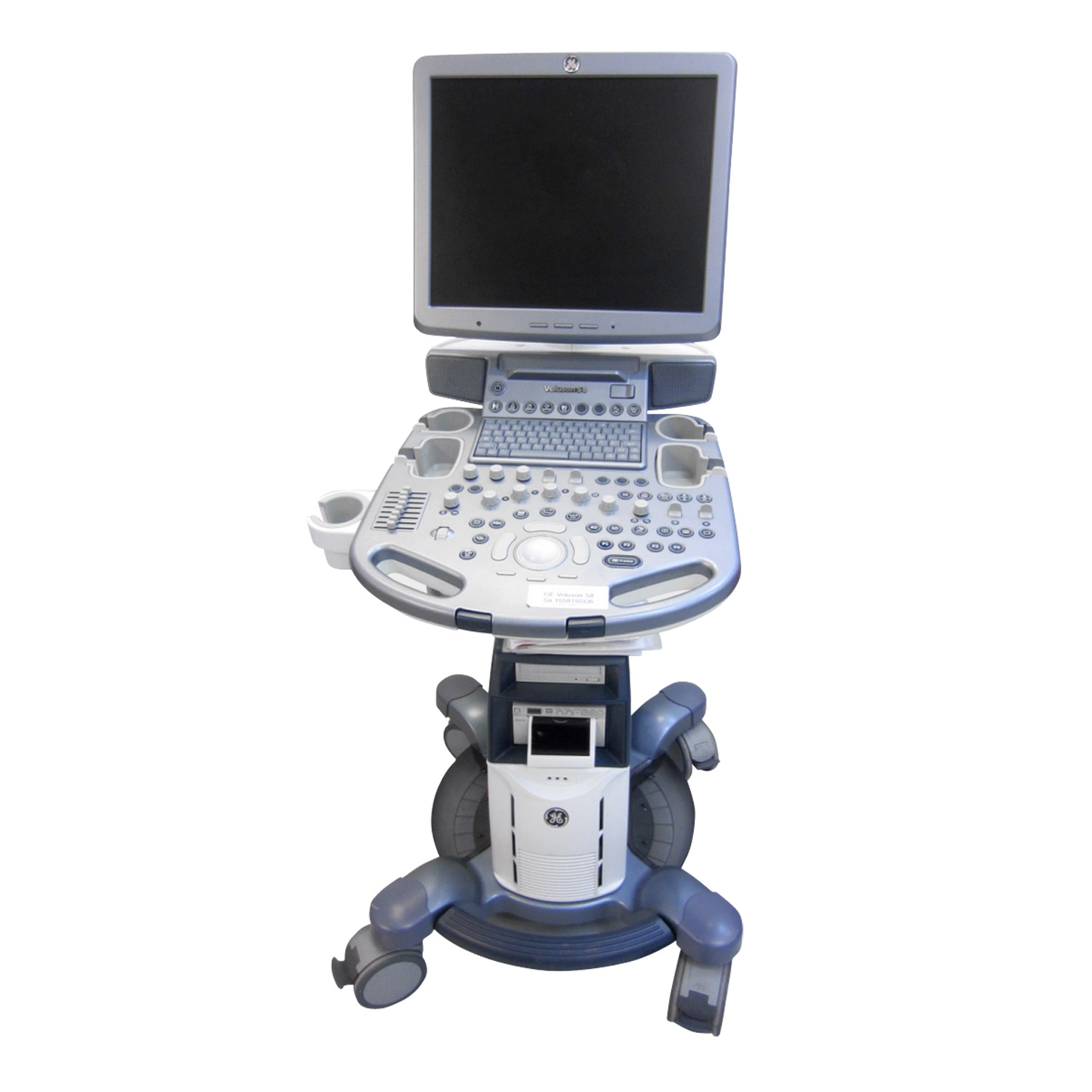

About the GE Voluson S8 OB/GYN Ultrasound
The GE Voluson S8 provides real-time 4D imaging that captures fetal movement and facial expressions beyond what 2D systems offer. SRI technology reduces image noise. CrossXBeamCRI HD-Flow delivers clearer vascular detail, which helps with complex obstetric cases where every detail counts.
Wireless connectivity allows instant image sharing without cables or storage devices. The compact footprint fits smaller exam rooms where full-size carts won’t work. Adjustable height accommodates different practitioners without awkward reach issues found with fixed consoles.
Key Features
- 2D/3D/4D imaging with real-time fetal visualization
- Advanced SRI and CrossXBeamCRI HD-Flow for enhanced image clarity
- 19″ high-resolution LCD with dual-view capability
- Compact mobile design for space-constrained environments
- Wireless connectivity for instant image sharing
- Sophisticated fetal assessment tools for comprehensive evaluation
- Intuitive keyboard layout reduces exam time
- Integrated probe protection and positioning features
Specifications for GE Voluson S8 OB/GYN Ultrasound
Intended Use
- Clinical Applications: General, OB/GYN, Obstetrics, Gynecology
Imaging
- Imaging Capabilities: 2D/3D/4D
- Display: 19 in LCD – flat screen
- Dual-view: Yes
Dimensions
- Height: Adjustable, maximum 1725 mm (67.9 in); minimum 975 mm (38.4 in)
- Width: 620 mm (24.4 in)
- Depth: 850 mm (33.4 in)
Weight
- System Weight: 90 kg (198 lbs.) (no peripherals)
- Packaged Weight: Approx. 325 lbs.
Electrical
- Voltage: 100-120 VAC, 220-240 VAC
- Frequency: 50/60 Hz (+/-2%)
- Power Consumption: Nominal 900 VA including all options
- Typical Power Consumption: With 500 VA load approx. 1.75 A at 230 V/50 Hz without peripherals
- Thermal Output: 1200 BTU/h
Portability
- Portable: Yes
Materials
- Components: Stainless Steel
Additional Features
- Probe Technologies: Innovative probe technologies
- Ergonomics: Ergonomic design to help provide optimal comfort while scanning
