About the GE Innova 3131 Cath/Angio System

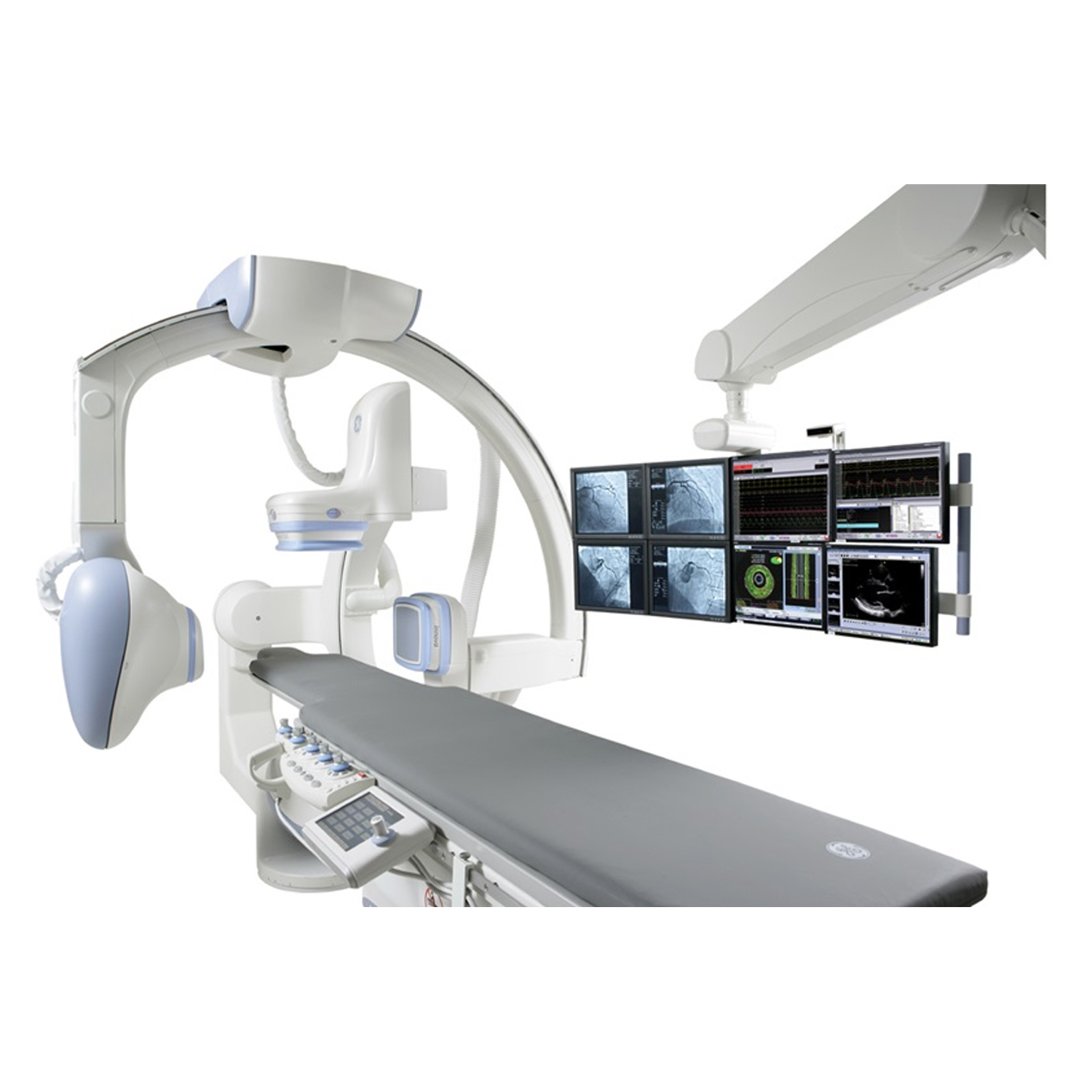

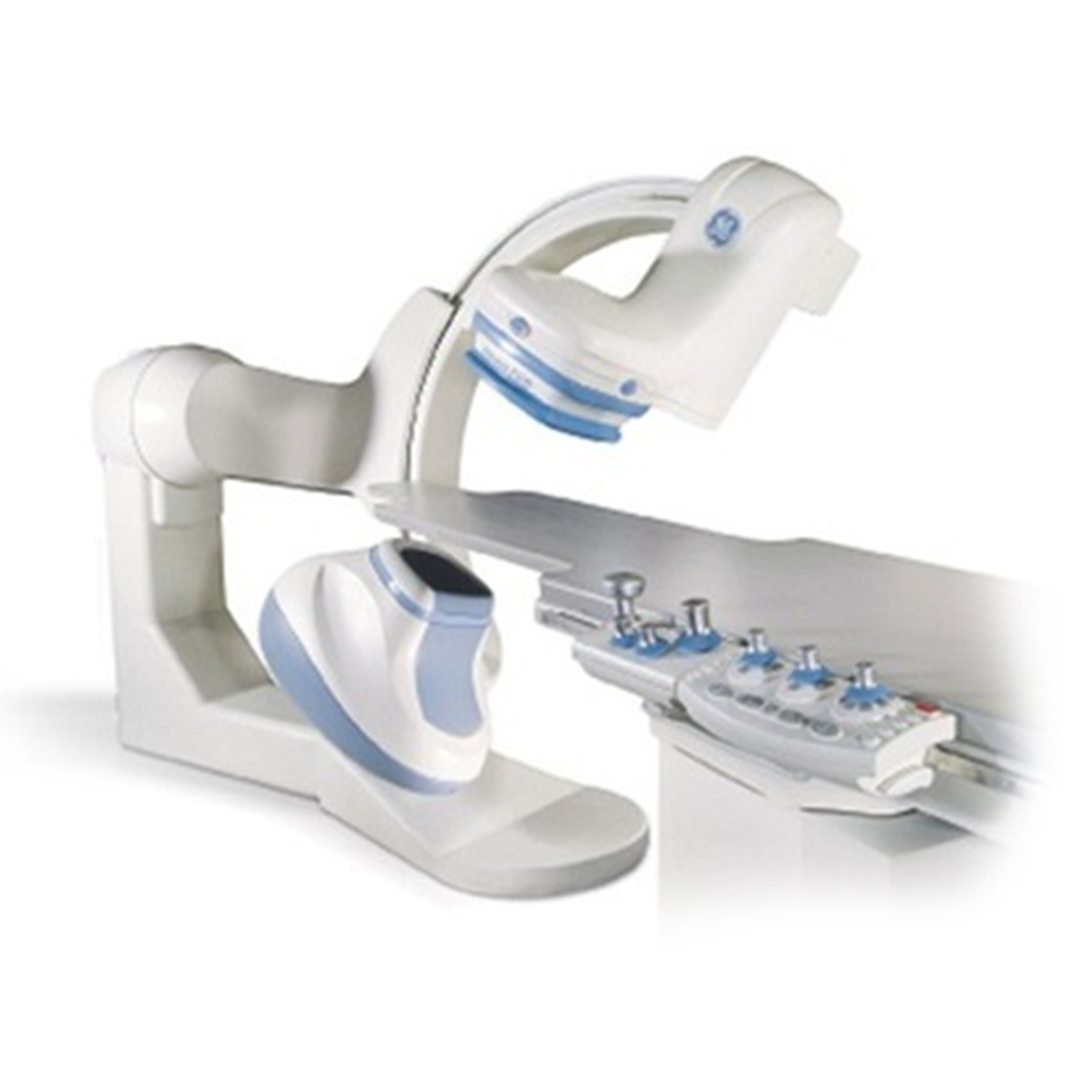

The GE Innova 3131 captures simultaneous dual-plane angiographic views during interventional procedures, eliminating the contrast and time overhead of repositioning between shots. The biplane configuration gives you frontal and lateral imaging in real-time, which matters most during complex cardiac and neuro cases where every second counts.
Built-in dose monitoring tracks cumulative exposure with maximum reduction settings that automatically optimize technique factors. The system reconstructs 3D images in real-time, so you can visualize vessel anatomy and device placement without additional contrast runs. Worth noting: the anti-collision software actively monitors C-arm positioning to prevent patient contact during complex angulations.
Table-side controls put exposure and positioning functions within arm’s reach through the TSUI smart box and handle system. The setup supports up to eight monitors for multi-user viewing and integrates with Omega IV or V tables depending on your room configuration.
Key Features
- Biplane angiographic imaging for simultaneous dual-plane views
- Real-time 3D reconstruction and visualization
- Integrated dose monitoring with automatic reduction protocols
- Anti-collision software with active patient safety sensors
- Table-side control interface (TSUI smart box and smart handle)
- Eight-monitor support for multi-user environments
- Compatible with Omega IV and Omega V cardiac tables
Specifications for GE Innova 3131 Cath/Angio System
Generator
- Maximum Peak Power: 100 kW
- Maximum Average Power: 3.2 kW
- High Frequency Range: 20 kHz – 60 kHz
- kV Range: 40 kV – 125 kV
- Maximum mA: 1000 mA
- Large Focus Maximum mA: 1000 mA
- Large Focus Maximum Power: 100 kW
- Small Focus Maximum mA: 400 mA
- Small Focus Maximum Power: 48 kW
- Compressed Focus Maximum mA: 200 mA
- Compressed Focus Maximum Power: 16 kW
Gantry
- L-Arm Vertical Rotation: ±100° (±95° motorized limit set)
- Offset C-Arm RAO/LAO Rotation: -117° / +105°
- L-Arm Rotation Speed: 10°/s
- C-Arm Cranial/Caudal Angulation: 50° cranial, 45° caudal
- Combined Cranial/Caudal Angulation: ±55°
- SID Motorized Speed: 8.9 cm/s
- SID Range: 89 cm to 119 cm
- Travel Distance: 30 cm
Gantry – LP Positioner (Lateral)
- C-Arm LAO Angulation Range: 2° LAO to 115° LAO
- C-Arm Pivot Cranial/Caudal: 45° cranial to 90° caudal
- Rotation Speed: 0° to 10°/s
- Focal Spot to Isocenter Range: 71 cm to 88 cm
- SID Range: 84 cm to 137 cm
- Detector and Tube Lift Speed: 89 mm/s
X-ray Tube
- Focal Spot to Isocenter: 72 cm
- X-ray Tube Model: Performix 160A
Table (Omega)
- Maximum Table Load: 204 kg (450 lbs)
- Tabletop Length: 333 cm
- Tabletop Width: 46 cm (trunk area), 67 cm (max)
- Longitudinal Travel: 170 cm
- Equivalent Fluoroscopic Coverage: 186 cm
- Transverse Travel: ±14 cm
- Vertical Travel: 30 cm (above floor 78 cm to 108 cm)
- Vertical Speed: 2 cm/s at 50 Hz; 2.5 cm/s at 60 Hz
- Table Rotation: ±180°
- Table Base Dimensions: 61 cm x 52 cm
Contents
- X-ray high-frequency and high-voltage generators: JEDI 100
Physical
- Operating Temperature Range: 15° C to 32° C
- Maximum Load on Table-Side Rail: 40 kg
