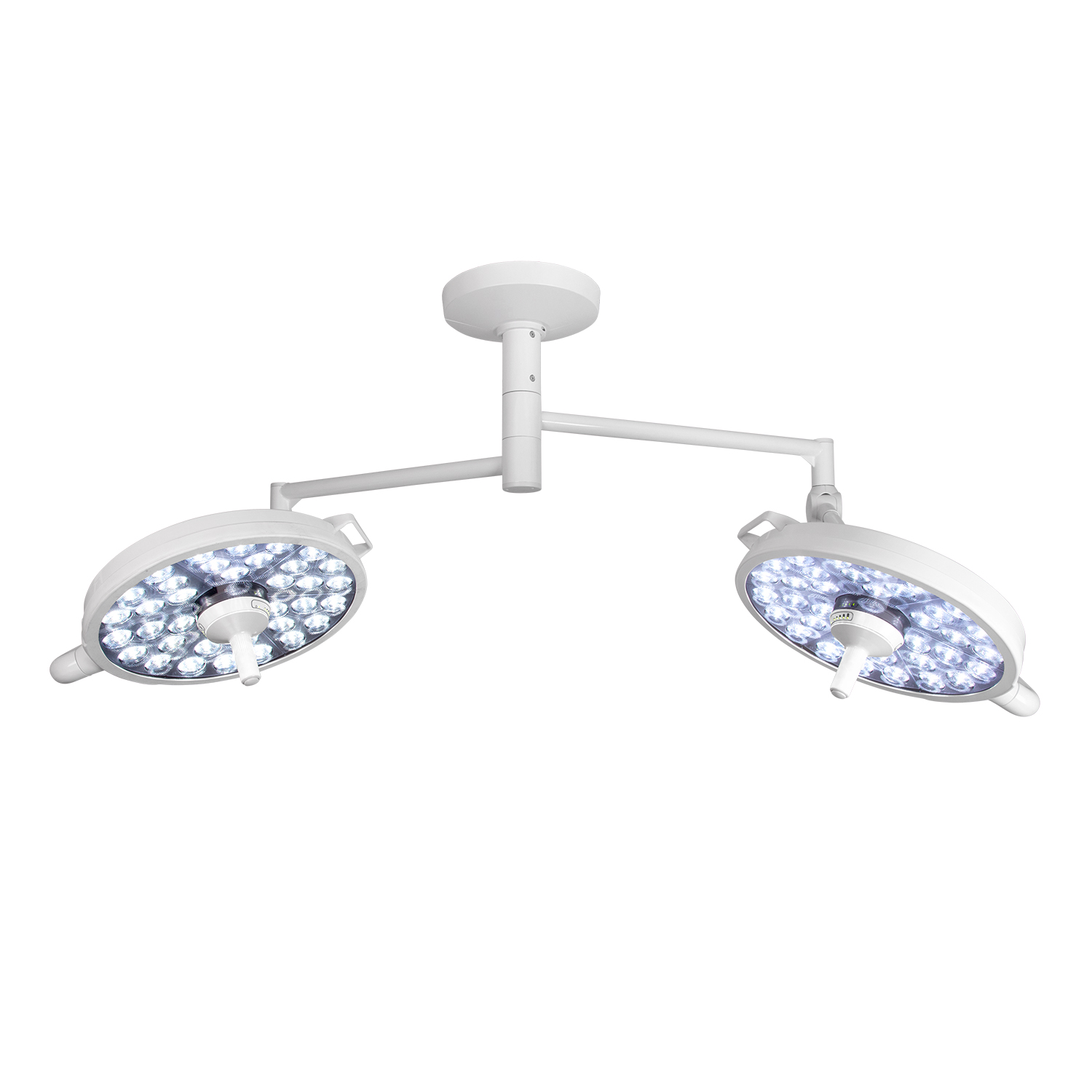

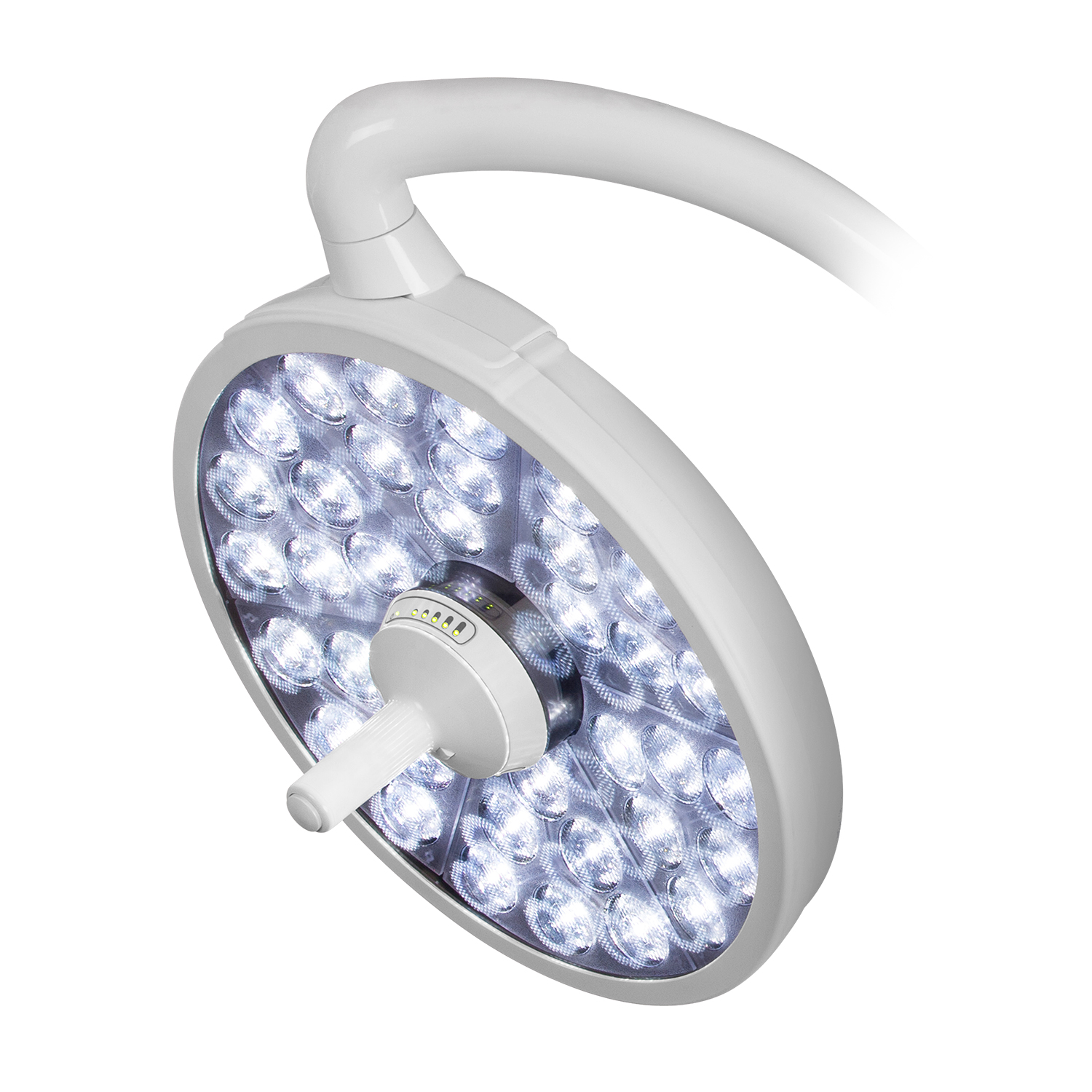

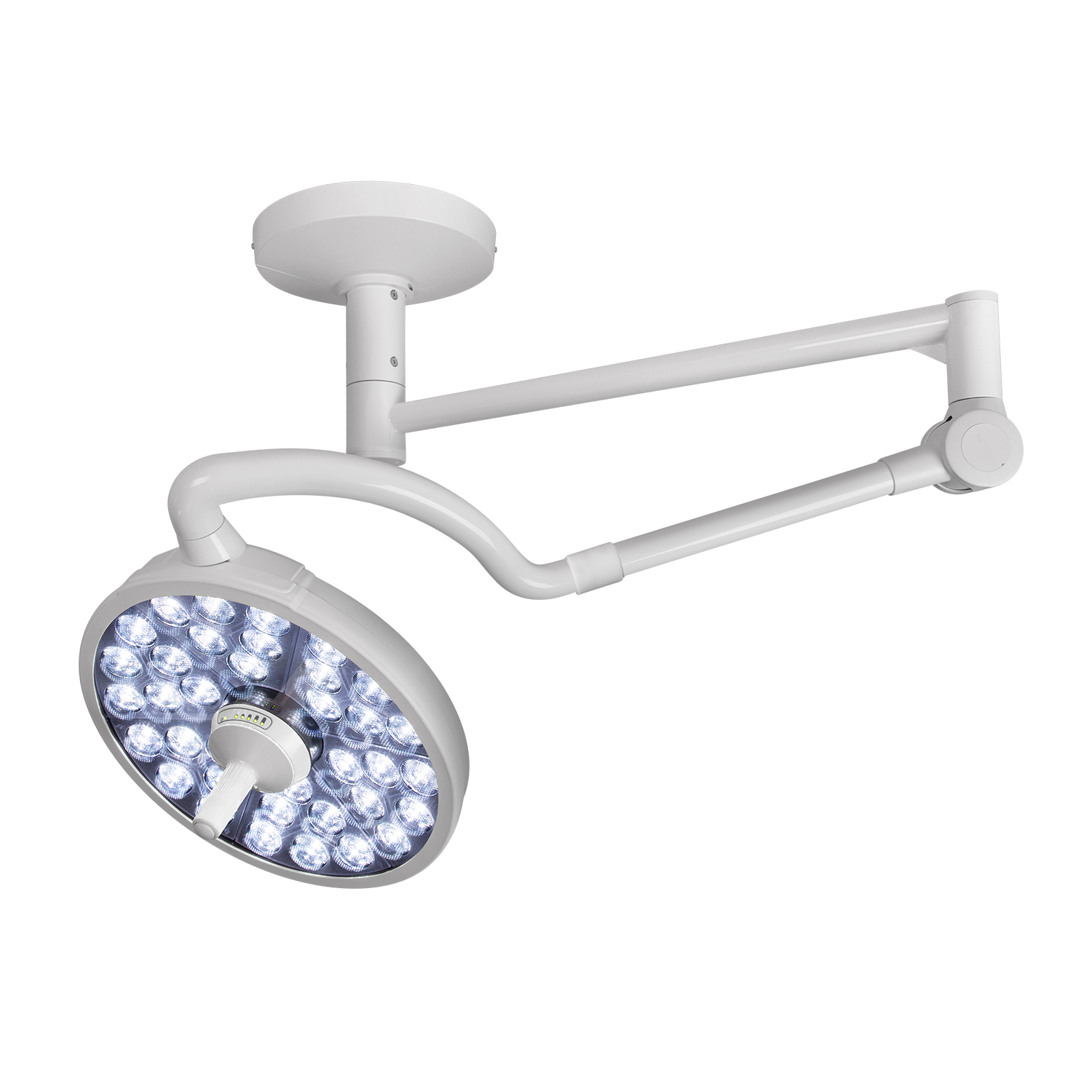

DRE Vision LED Surgery Light

The Vision LED Surgery Light delivers 100,000 lux at one meter with a 97 CRI rating, giving surgeons the crisp tissue differentiation they need for precise.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The Vision LED Surgery Light delivers 100,000 lux at one meter with a 97 CRI rating, giving surgeons the crisp tissue differentiation they need for precise work. Unlike older halogen systems, this LED array produces virtually no radiant heat while maintaining consistent color temperature throughout dimming cycles.

Five-stage dimming (100% down to 50%) lets you adjust illumination without breaking sterile field, thanks to the autoclavable handle controls. The short version: excellent shadow control with 24-inch depth of illumination and dedicated endo mode for minimally invasive procedures. Worth noting that the 36-LED array maintains uniform illumination across the entire surgical field, not just the center.

The large-diameter design covers major procedures in spacious OR suites, while the extended LED lifespan reduces maintenance downtime. Bottom line: consistent performance during lengthy cases without the heat buildup that fatigues surgical teams.

Key Features

  • 100,000 lux output with 97 CRI for superior tissue visualization
  • Five-stage dimming from 100% to 50% with sterile handle controls
  • Minimal heat output reduces surgeon fatigue during extended procedures
  • 24-inch depth of illumination with excellent shadow management
  • Dedicated endo mode for minimally invasive surgery applications
  • Long-life LED technology for reduced maintenance requirements

Optical Specifications

  • Number Of LEDs: 36
  • Output: 100,000 Lux @ 39.4 in (1 m)
  • CCT: 4,300 K
  • CRI: 97
  • Focal Length: 39.4 in (1 m)
  • Dimming Levels: 5
  • Dimming Percentages: 100%, 87%, 75%, 62%, 50%
  • Endo Mode: Yes
  • Light Field (D10): ≈Ø8.3 in (Ø209 mm)
  • Light Field (D50): ≈Ø4.9 in (Ø124 mm)
  • Depth Of Illumination: ≈24 in (610 mm)
  • Illuminance (One Mask): 27.2%
  • Illuminance (Two Masks): 37.2%
  • Illuminance (Tube With One Mask): 24.3%
  • Illuminance (Tube With Two Masks): 40.3%
  • Irradiance: 295 W/m²

Electrical

  • Supply Circuit: 100 – 240 VAC, 50/60 Hz
  • Fuse Rating: 2.5 Amp/250 VAC
  • Power Supply: 100 W
  • Light Head Power Consumption: 54 W @ 24 VDC

Mechanical

  • Light Head Weight: 14.8 lbs (6.7 kg)
  • Light Head Dimensions: Ø18 in (Ø457 mm) | 4 in H (102 mm)
  • Arm Assembly Weight (Single): 48.3 lbs (22.0 kg)
  • Arm Assembly Weight (Dual): 77.1 lbs (35.0 kg)
  • Articulating Arm Vertical Movement: +15° Up, -60° Down
  • Articulating Arm Horizontal Movement: ≈540°
  • Articulating Arm/Yoke Interface: ≈540°
  • Yoke/Light Head Interface: ≈300°

Environment

  • Ambient/Operating Temperature: 41°F to 104°F (5°C to 40°C)
  • Storage Temperature: -4°F to 122°F (-20°C to 50°C)
  • Humidity: 10 – 90% relative humidity
  • Pressure: 100 kPA (@ <2k meters)
