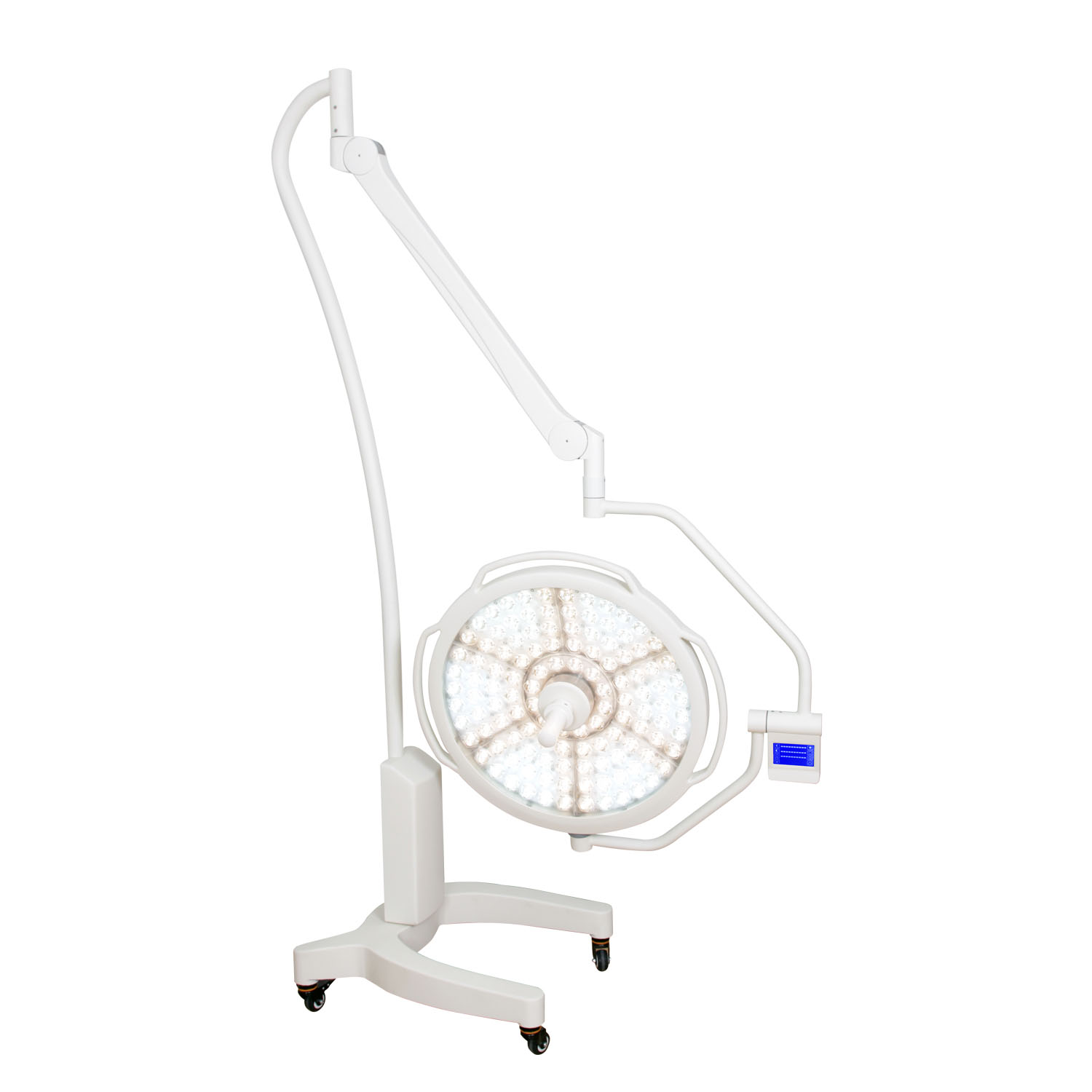

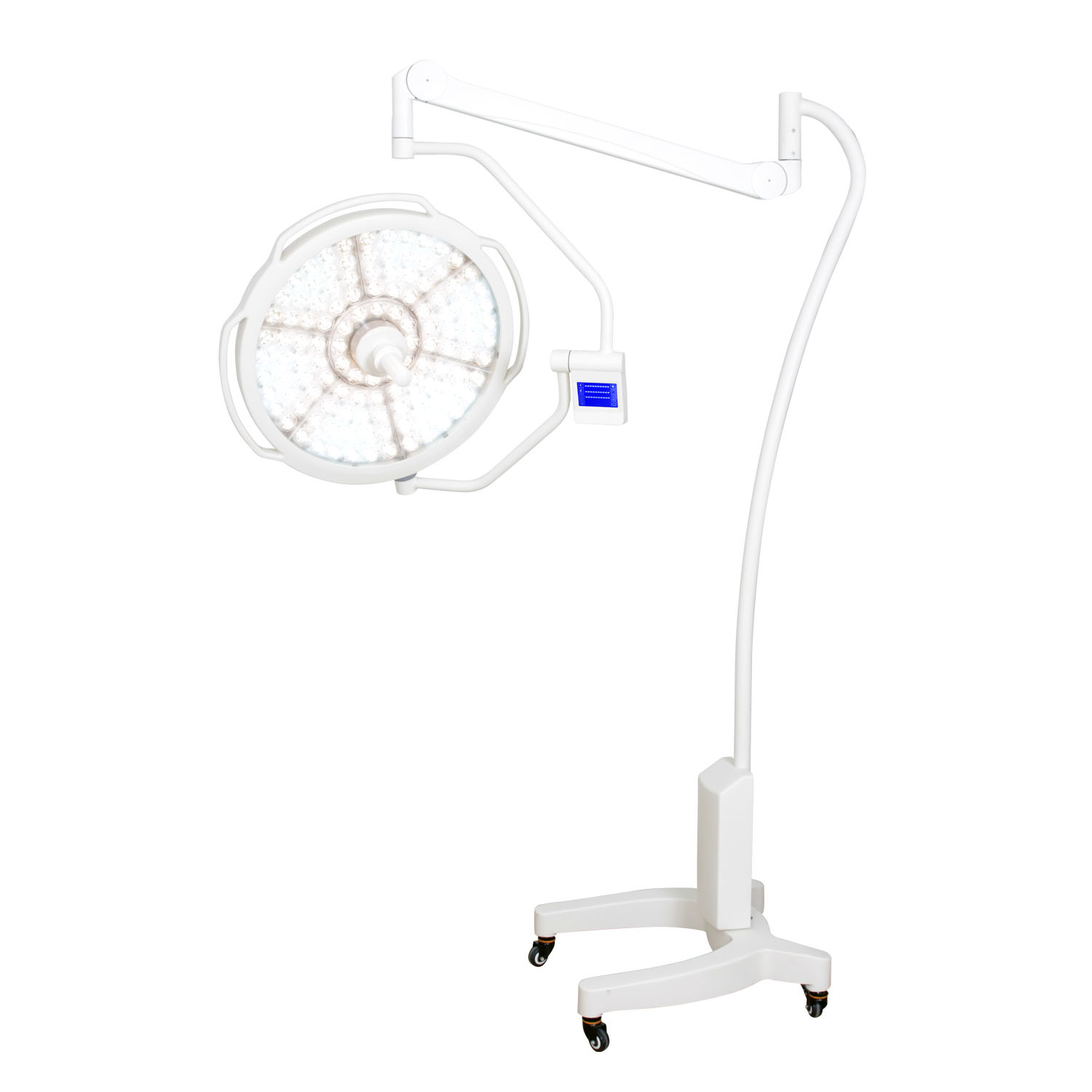

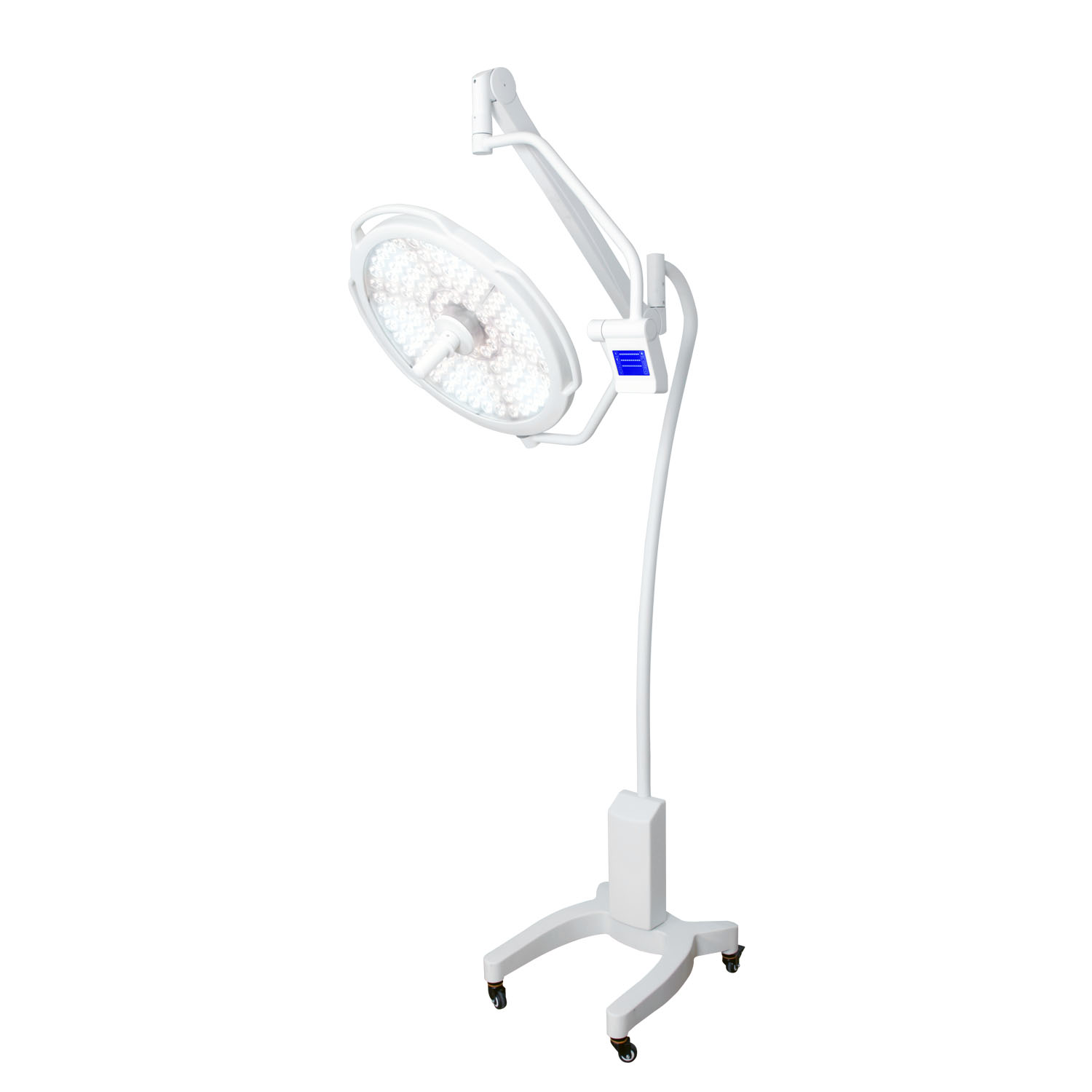

DRE Maxx Luxx LED 160 Mobile Surgical Light
The Maxx Luxx LED 160 delivers 160,000 lux through a mobile platform that positions exactly where you need it.
Quality Management
Facility & Processes
Biomedical Technicians
About the DRE Maxx Luxx LED 160 Mobile Surgical Light
The Maxx Luxx LED 160 delivers 160,000 lux through a mobile platform that positions exactly where you need it. Unlike ceiling-mounted systems, you can wheel this unit between ORs or position it as auxiliary lighting without installation constraints.

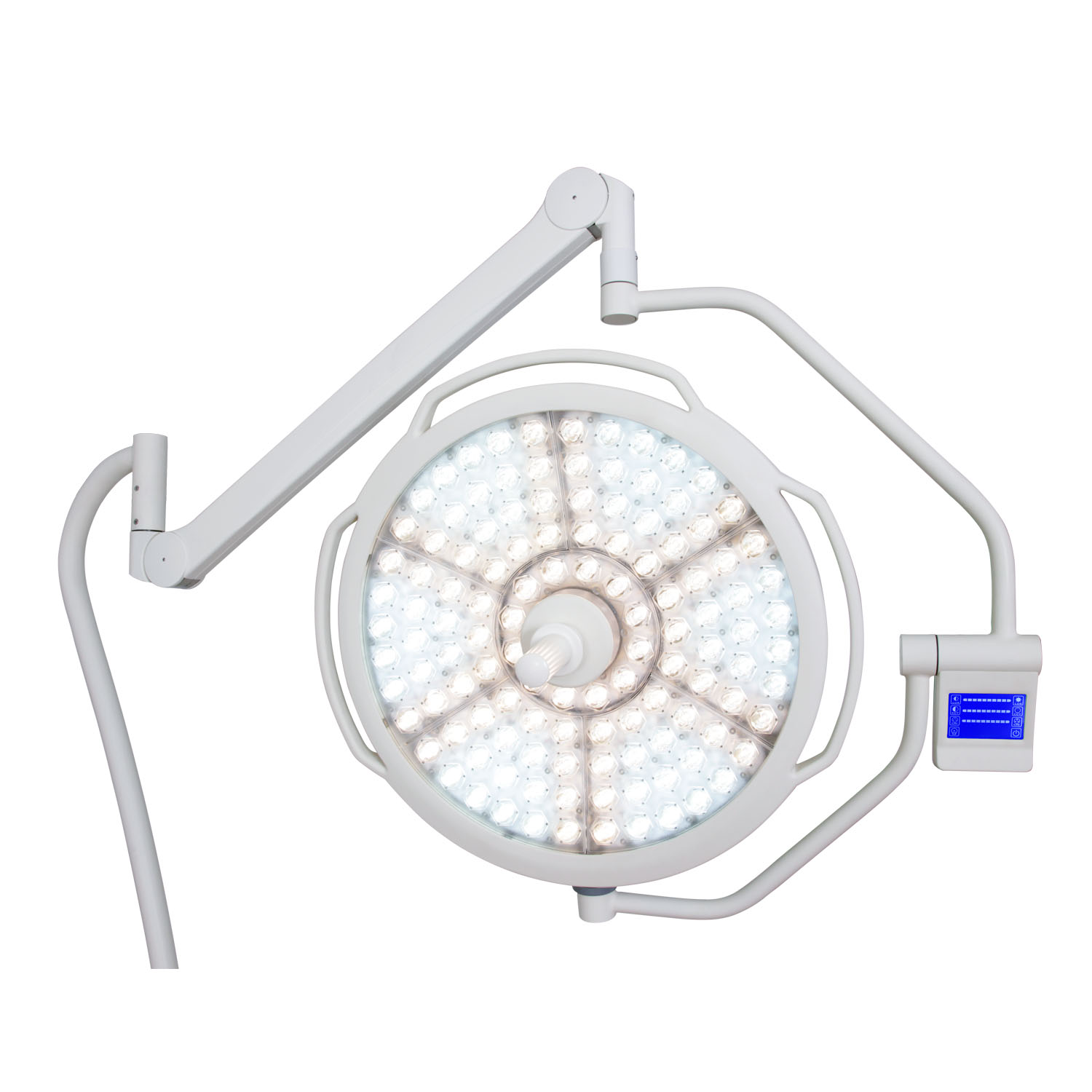

The LCD touchscreen lets you dial in both intensity and color temperature on the fly, shifting from 3500K to 5000K to optimize tissue visualization. The adjustable focus scales from 120mm to 350mm spot diameter, so you’re not stuck with fixed illumination patterns. Worth noting: the 93+ CRI maintains accurate color rendering across the temperature range.
The articulating arm reaches 700-1500mm depth with smooth positioning that stays put once adjusted. Four-wheel base locks securely and maneuvers easily through standard doorways.
Key Features
- 160,000 lux maximum output with adjustable intensity
- Variable color temperature (3500-5000K) via LCD touchscreen
- Adjustable focus from 120-350mm spot diameter
- Mobile four-wheel base with locking casters
- Articulating arm with 700-1500mm illumination depth
- Cool-output LEDs with 30,000-50,000 hour life
- High color rendering index (≥93) for accurate tissue visualization
Specifications for DRE Maxx Luxx LED 160 Mobile Surgical Light
Illumination
- Illuminance: 160,000 lux (14,800 foot candles)
- Spot Diameter: 120-350 mm
- Color Temperature: 3500-5000 K
- Illumination Depth: 700-1500 mm
Performance
- LED Life: 30,000 to 50,000 hour rated life
- LED Power: 120 W
- Color Rendering Index: ≥ 93
Contents
- Available Color: Creme
Intended Use
- Settings: Surgery; Emergency Medicine; Operating Room; ER; Trauma
