DRE SLS 9000 Plus LED Surgery Light
The SLS 9000 Plus delivers 140,000 lux of shadowless LED illumination with real-time adjustability through an onboard LCD touchscreen.
Quality Management
Facility & Processes
Biomedical Technicians

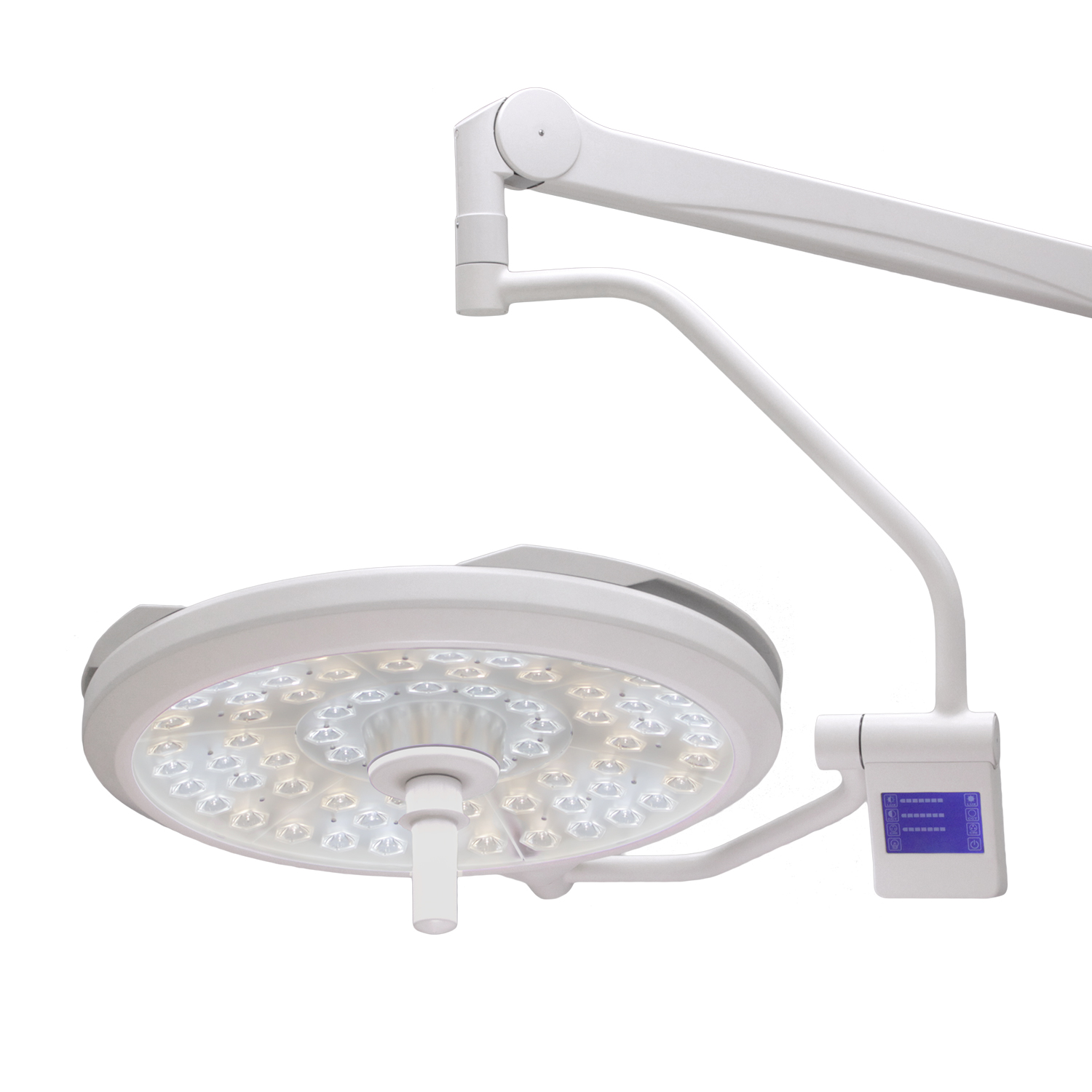

About the DRE SLS 9000 Plus LED Surgery Light
The SLS 9000 Plus delivers 140,000 lux of shadowless LED illumination with real-time adjustability through an onboard LCD touchscreen. Unlike fixed-intensity surgical lights, you can dial in precise brightness and color temperature mid-procedure without breaking sterility or calling for assistance.
The adjustable color rendering index (up to 91.6) gives surgeons better tissue differentiation during complex procedures. Worth noting: the LED array maintains consistent output across its 50,000-hour rated life, so you won’t see the gradual dimming that affects traditional surgical lighting. The system automatically compensates for ambient room lighting to maintain optimal contrast ratios.
Single or dual-head ceiling configurations fit most OR layouts. The 54W power draw per head runs cooler than halogen systems, reducing heat stress in the surgical field.
Key Features
- Real-time intensity control via LCD touchscreen
- Adjustable color temperature (3,500-5,000K) and chromogenic index
- 50,000-hour LED life with consistent output
- Single or dual-head ceiling mount options
- Low 54W power consumption per head
Specifications for DRE SLS 9000 Plus LED Surgery Light
Capacity
- LED Life: 50,000 hours (average)
- Central Illuminance: 140,000 Lux (adjustable)
Power
- Input Voltage: 100 – 240 VAC, 50/60 Hz, Single Phase
- Power: Single: 54 W; Dual: 108 W
Optical
- Correlated Color Temperature: 3,500 – 5000° Kelvin
- Color Rendering Index: 91.6
- Irradiance: 233 W/m2 (39.4 in)
- Focal Length: 27.6 in
- Light Field Diameter: 4.7 in – 13.8 in (adjustable)
- Depth of Illumination: 55.1 in
Mechanical
- Weight: Single Ceiling Mount Assembly: approx. 66.1 lb; Dual Ceiling Mount Assembly: approx. 90.4 lb; Light Head Assembly: approx. 22.7 lb
- Dimensions: Ceiling Casting: 11.4 in x 10.2 in; Arm (articulated): 35.4 in x 0.9 in x 2.4 in; Light Head Assembly: 24.4 in x 46.9 in
- Rotations: Ceiling Mount/Extension Arm Interface: Continuous; Articulating Mount/Extension Arm Interface: Continuous; Articulating Arm/Yoke Interface: Continuous; Yoke/Lamp Interface: +/- 135° (270° range)
- Articulating Arm Vertical Movement: +30°, -40°
Environmental
- Operating Temperature: 41° – 104° F
- Storage Temperature: 41° – 104° F
- Humidity: 10 – 90% relative humidity
Materials
- Components: Stainless Steel
Intended Use
- Settings: Operating Room
Appearance
- Available Color: Creme
