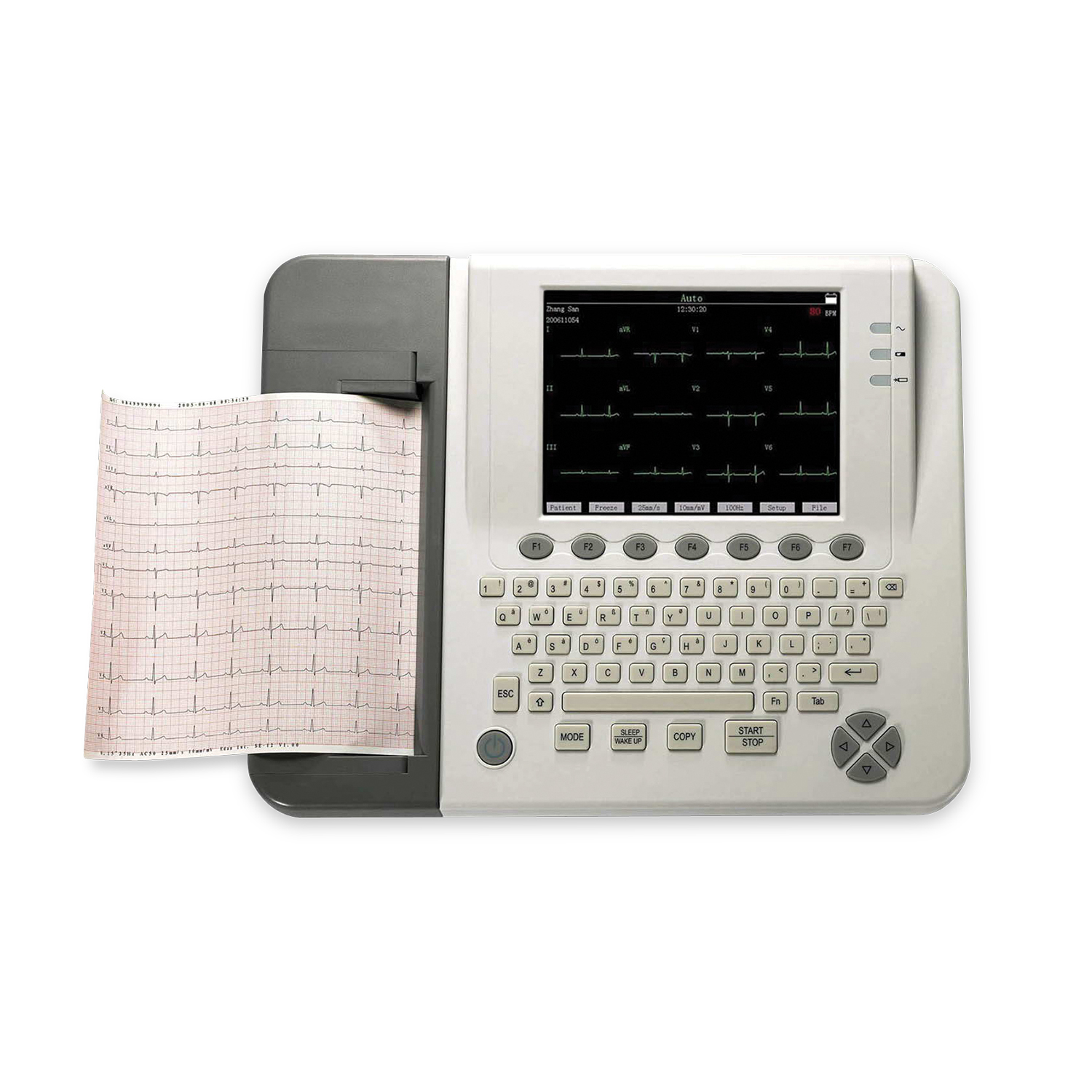

DRE True 12T Twelve-Channel EKG Machine with Touch Screen
The True 12T captures all twelve ECG leads simultaneously with 24-bit resolution, giving you complete cardiac data in a single acquisition cycle.
Quality Management
Facility & Processes
Biomedical Technicians
About the DRE True 12T Twelve-Channel EKG Machine with Touch Screen
The True 12T captures all twelve ECG leads simultaneously with 24-bit resolution, giving you complete cardiac data in a single acquisition cycle. Unlike sequential recording systems, you won’t miss transient arrhythmias or deal with baseline drift between leads.
Built-in interpretation algorithms validate against the CSE database, so you’re getting clinically tested analysis rather than basic pattern matching. The color touchscreen lets you review waveforms and preview reports before printing, which cuts down on paper waste and repeat tests. Worth noting: the thermal printer handles real-time output while storing digital files for later review or network transfer.
The rechargeable battery gives you true portability between units, and multiple connectivity options (Ethernet, USB, RS-232) mean it’ll integrate with existing EMR systems without adapter headaches. Digital filtering handles the usual suspects: baseline wander, AC interference, and EMG artifacts.
Key Features
- 12-channel simultaneous acquisition with CSE-validated interpretation
- Color touchscreen for waveform review and report preview
- Integrated thermal recorder with digital file storage
- Multiple connectivity options: Ethernet, USB, RS-232
- Rechargeable Li-ion battery for portable operation
- Digital filters for baseline, AC, and EMG interference
Specifications for DRE True 12T Twelve-Channel EKG Machine with Touch Screen
General
- Lead: Standard 12 leads
- Acquisition Mode: 12‑channel simultaneous
- A/D Converter: 24 bits
- Calibration Voltage: 1 mV ±2%
- Sensitivity: 2.5, 5, 10, 20, 10/5, AGC (mm/mV)
- Input Impedance: >50 MΩ (10 Hz)
- Noise Level: <12.5 μVp‑p
- CMRR: >121 dB
- Recording Modes: Auto/manual/rhythm
- Rhythm Lead: Single lead or three leads selectable
Input / Safety
- Input Circuit: Defibrillation protection built‑in
- Input Voltage Range: ±5 mVp‑p
- Time Constant: >3.2 s
- Frequency Response: 0.05 Hz–150 Hz
- Input Circuit Current: <10 nA
- Patient Leakage Current: <10 μA (220V–240V)
- Patient Auxiliary Current: <0.1 μA (DC)
Filters
- Filters: EMG filter 25Hz/35Hz/45Hz/OFF; Anti‑baseline drift 0.05/0.15/0.25/0.5 Hz; Low‑pass filter 150 Hz/100 Hz/75 Hz; AC filter 50 Hz/60 Hz
Recorder
- Printer: Thermal printer
- Recording Paper: Roll and z‑fold, 216 mm / 210 mm width
- Recording Speed: 5 mm/s, 10 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s (±3%)
Display & Memory
- Display: 800 × 600 dots LCD
- Internal Memory: 200 Tests
Power
- Power Supply: AC 100–240 V, 50/60 Hz
- Battery: Built‑in rechargeable Li‑ion battery, 14.4 V (approx. 400 reports)
Dimensions
- Dimensions: 420 mm × 330 mm × 120 mm
Connectivity
- External Input: >100 kΩ, sensitivity 10 mm/V ±5
- Communication Interface: Ethernet or RS‑232
