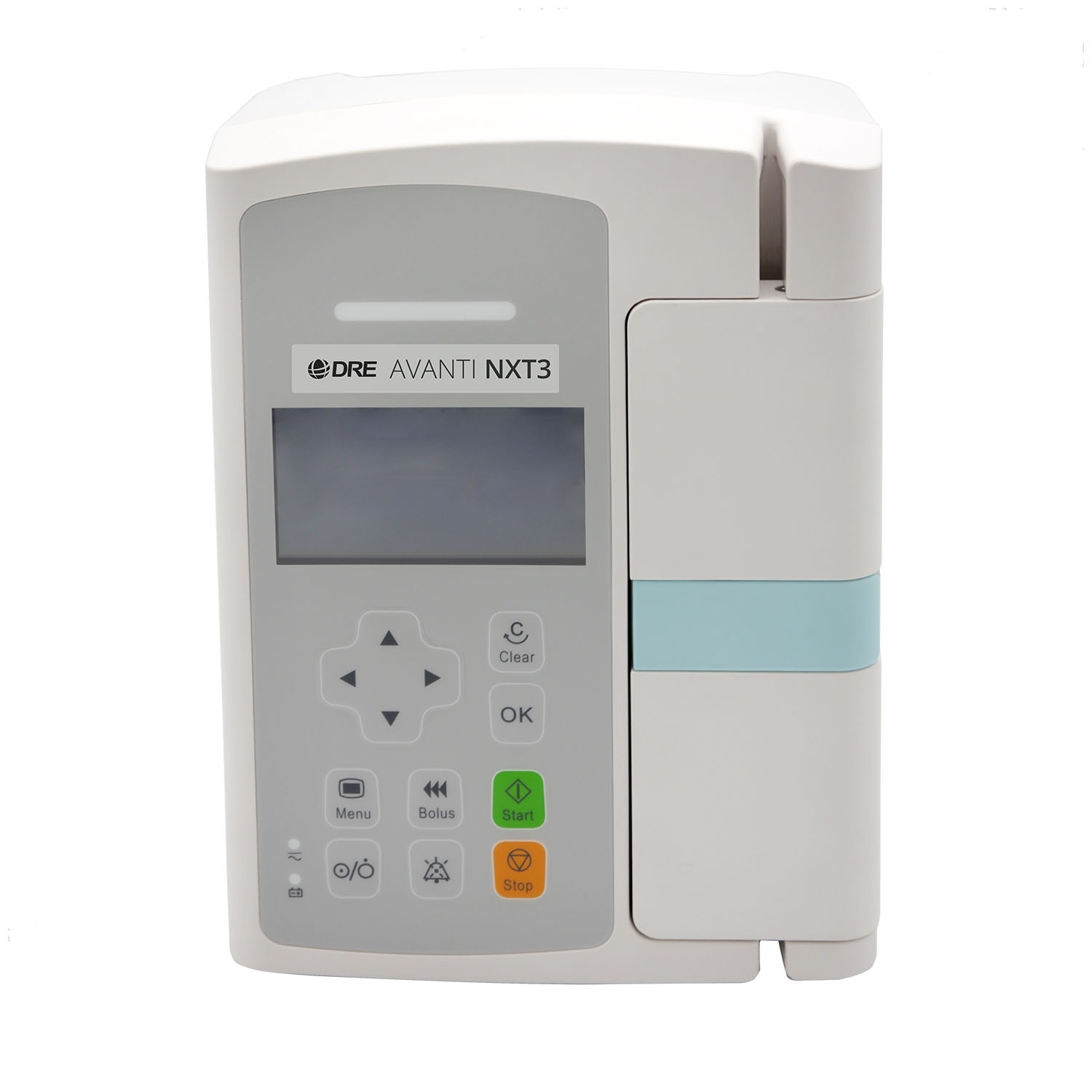

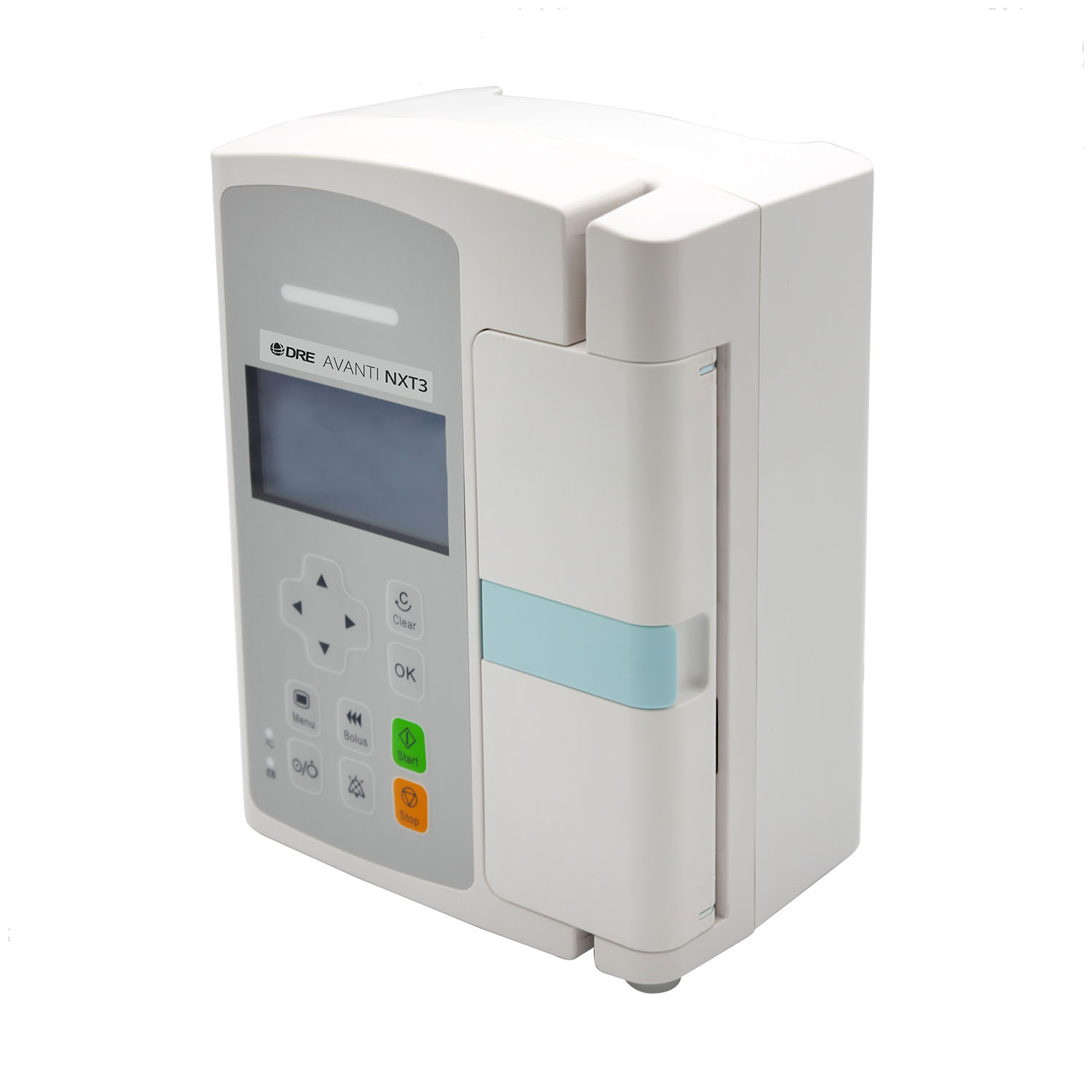

DRE NXT3 Infusion Pump

The NXT3’s anti-bolus technology actively reduces post-occlusion fluid surges that can complicate patient care with standard peristaltic pumps.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The NXT3’s anti-bolus technology actively reduces post-occlusion fluid surges that can complicate patient care with standard peristaltic pumps. Linear peristaltic movement delivers consistent IV therapies while maintaining the gentle handling your high-acuity patients need.

Built-in alarms monitor downstream occlusion, air in line, and system status without external sensors cluttering your workspace. The pump saves calibration data for up to three different line sets, so you won’t lose time reconfiguring between cases or shifts. Worth noting: the six-button interface keeps operation simple even during high-stress situations.

Multiple operation modes cover standard Vol/Rate delivery, time-based protocols, and body weight calculations. Manual and automatic bolus functions work within the same interface.

Key Features

  • Anti-bolus technology reduces post-occlusion fluid surges
  • Linear peristaltic mechanism for consistent delivery
  • Integrated safety alarms for occlusion, air detection, and system monitoring
  • Six-button operation interface
  • Multiple modes: Vol/Rate, Time, Body Weight, optional Drop Rate
  • Saves calibration for three separate line sets
  • Manual and automatic bolus capability

General

  • Mechanism: Linear Peristaltic Movement
  • Preset Volume: 1-9999 ml
  • Accumulated Infusion Volume: 1-9999 ml
  • Increment: 0.1 ml/h
  • Accuracy: ± 5%
  • KVO Rate: 0.1 – 5.0 ml/h (selectable)
  • Bolus Rate: 0.1 – 1500 ml/h (adjustable)
  • Features: Lock function; automatic bolus; drug library; history record; last configuration memory; change rate while operating; drip sensor (optional)

Dimensions

  • Weight: 1.6 kg (3.5 lbs)
  • Width: 146 mm (5.74 in)
  • Height: 193 mm (7.6 in)
  • Depth: 95 mm (3.74 in)

Power

  • AC Power Supply: 100-240 V; 50/60 Hz
  • External DC Power Supply: DC 10V-16V

Display & Alarms

  • Screen: 3 in monochrome LCD, 240 x 128 pixels
  • Alarms: Downstream occlusion; air in line; door open; VTBI completed; KVO finish; battery low; battery empty; no AC power; reminder; system error; VTBI near done; standby time expired; tubing not inserted

Environment

  • Operating Temperature: 5 – 40 C
  • Operating Air Pressure: 57 – 106 kPa
  • Operating Humidity: 15% – 95%
  • Storage Temperature: -20 – 60 C
  • Storage Air Pressure: 50 – 106 kPa
  • Storage Humidity: 10% – 95%

Materials

  • Components: Plastic; Stainless Steel

Compatibility

  • Tubing: Compatible with straight line tubing sets from any manufacturer

Intended Use

  • Applications: Infusion therapy delivery in clinical settings
