About the DRE Meridian Power Exam Table
The Meridian Power Exam Table drops to just 18 inches, making patient transfers significantly easier while maintaining full electric positioning for complex examinations. Unlike fixed-height tables, this unit adjusts across a 15.5-inch range with quiet operation that won’t disrupt patient comfort during procedures.
The integrated stainless steel basin and pull-out footrest eliminate the need for separate equipment during gynecological exams. Worth noting: the pelvic tilt function in the seat section provides precise positioning without requiring patient repositioning mid-examination.
The handheld remote connects through a protected power connection that won’t accidentally disconnect during height adjustments. Surface cleanup is straightforward with smooth, non-porous materials throughout.
Key Features
- Electric height adjustment from 18 to 33.5 inches via handheld remote

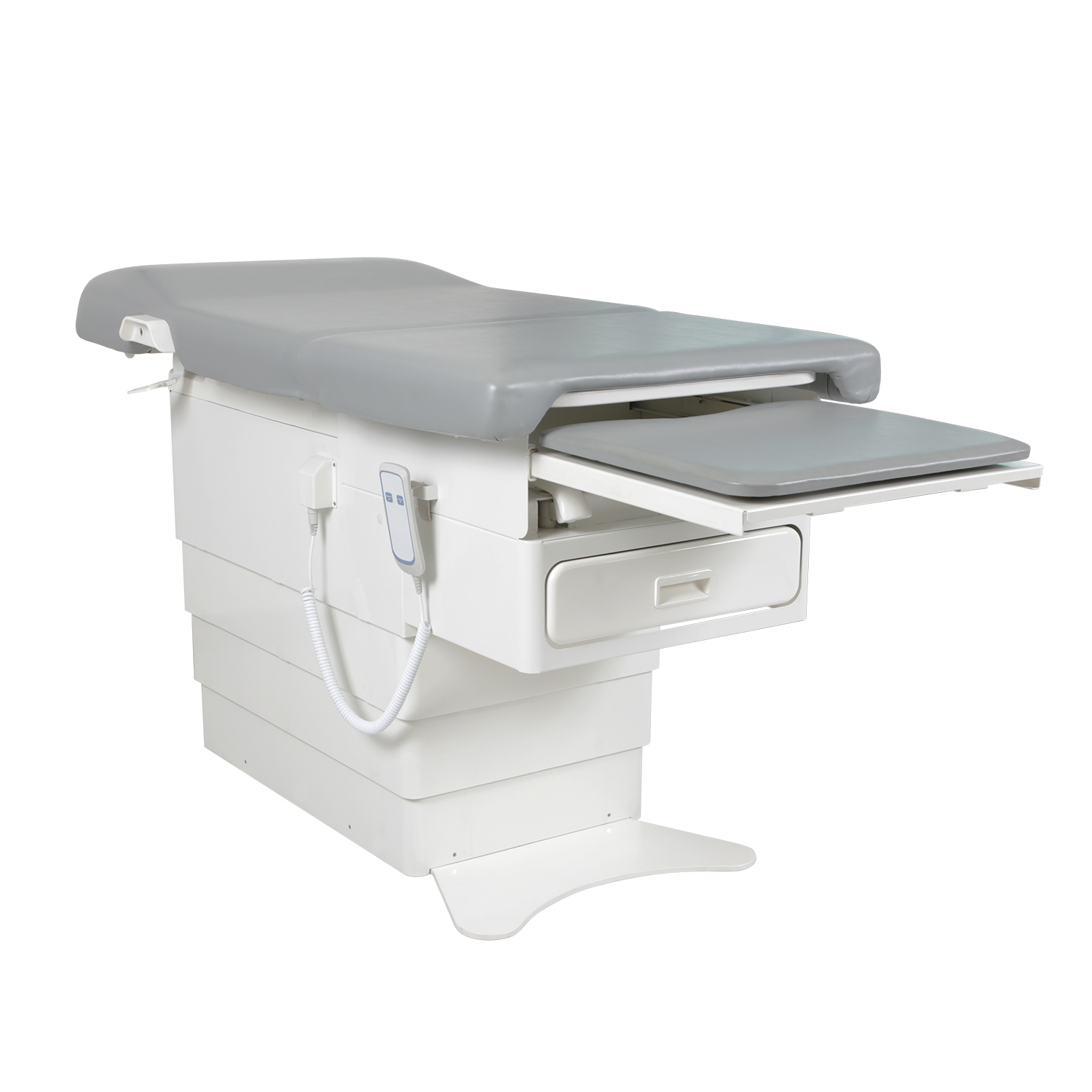

- Pull-out padded footrest with 17-inch slide length

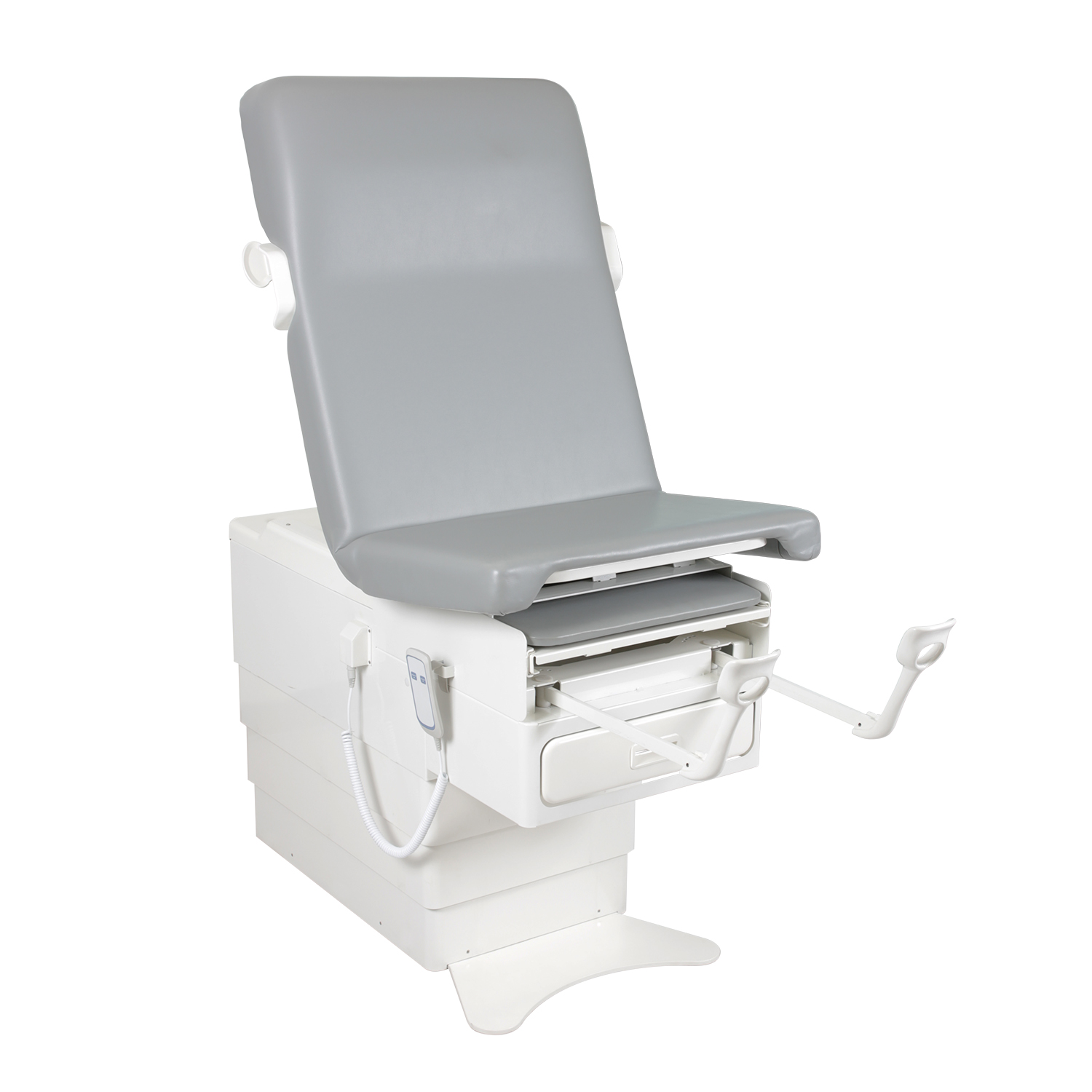

- Adjustable stirrups with 15°, 30°, and 45° angle positions
- Pelvic tilt function in seat section for enhanced positioning

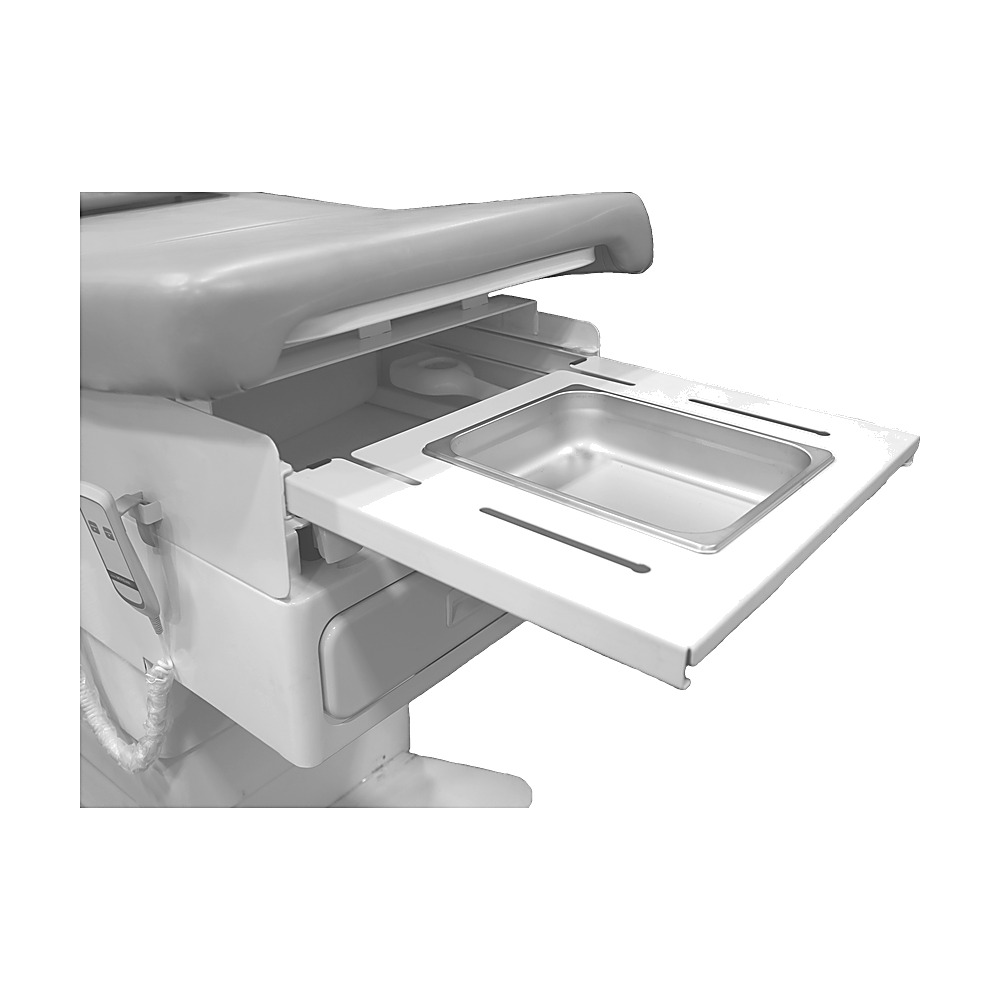

- Integrated stainless steel slide-out basin
- On-board paper roll holder under back section
- Quiet motor operation
- Easy-to-clean smooth surface construction
Specifications for DRE Meridian Power Exam Table
Sizes
- Dimensions: 55 in ± 0.8 in x 28 in ± 0.8 in
- Table Height (Minimum): 18 in
- Table Height (Maximum): 33.5 in
- Table Height Adjustment Range: 15.5 in ± 0.4 in
- Back Section Angle: 0° ~ 68° ± 5
- Seat Section Angle: 0° ~ 8° ± 1°
- Footrest Width: 20 in
- Slide Length of Footrest: 17 in ± 0.8 in
Contents
- Storage Drawer Dimensions: 12 in ± 0.8 in x 16.75 in ± 0.8 in x 4 in ± 0.8 in
- Pull-Out Basin Dimensions: 12 in ± 0.8 in x 9.75 in ± 0.8 in
Capacity
- Maximum Load: 450 lb
Materials
- Basin: Stainless Steel
- Surface Material: Plastic
Intended Use
- Applications: Office-based medical examinations
Environmental Specifications
- Operating Temperature: 41°F ~ 104°F
- Operating Relative Humidity: ≤ 80%
- Operating Atmospheric Pressure: 70 kPa ~ 106 kPa
- Storage Temperature: -40°F ~ 131°F
- Storage Relative Humidity: ≤ 95%
- Storage Atmospheric Pressure: 50 kPa ~ 106 kPa
