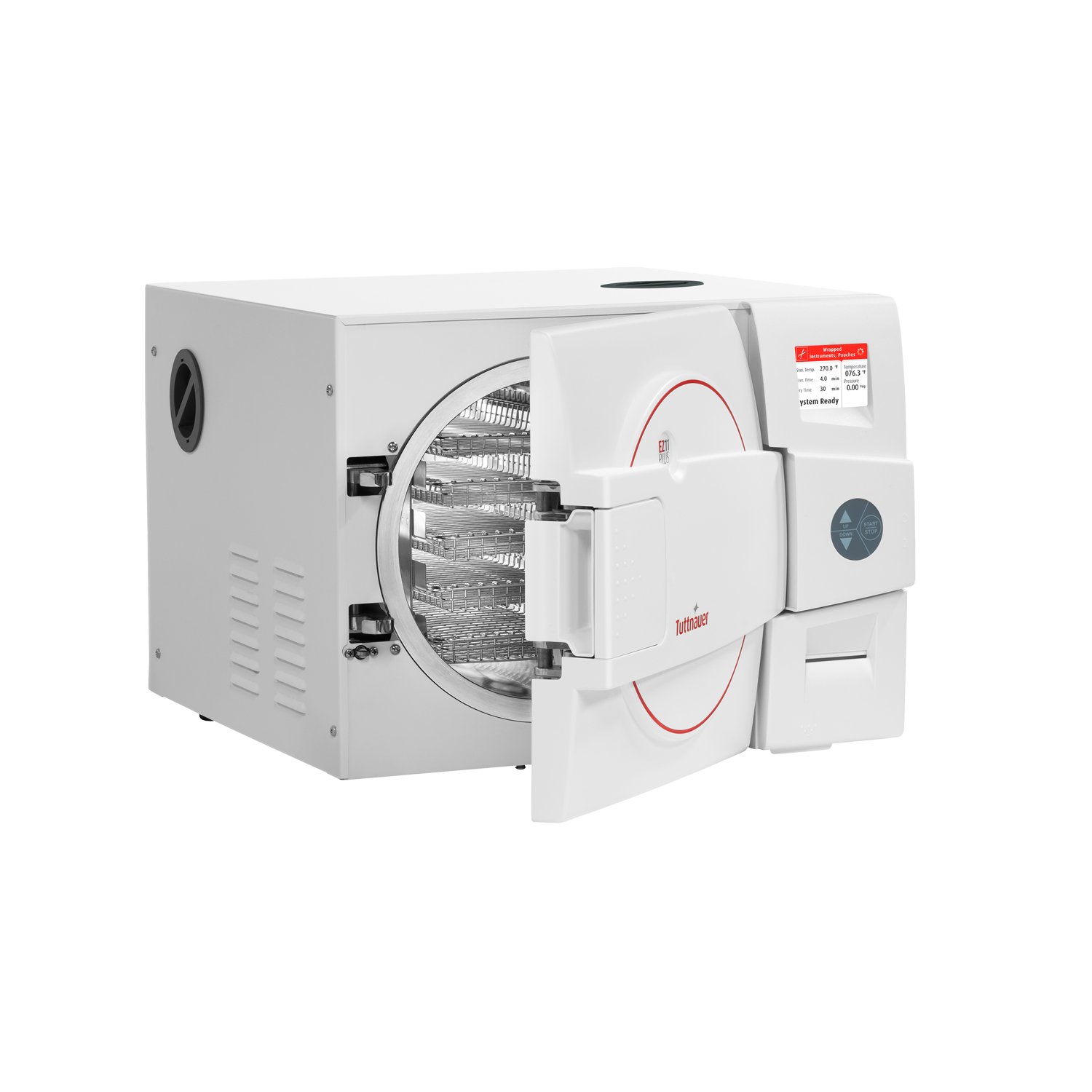

Tuttnauer EZ11Plus Fully Automatic Autoclave
The EZ11Plus handles closed-door drying with a high-efficiency air pump, eliminating the need to crack the door and risk contamination during the drying phase.
Quality Management
Facility & Processes
Biomedical Technicians
About the Tuttnauer EZ11Plus Fully Automatic Autoclave
The EZ11Plus handles closed-door drying with a high-efficiency air pump, eliminating the need to crack the door and risk contamination during the drying phase. Unlike basic autoclaves that require manual monitoring, this unit runs fully automated cycles while you handle other tasks.
The multicolor display shows real-time temperature and pressure data, plus the networking port lets you monitor cycles remotely from your desk or phone. Worth noting: the built-in USB port transfers cycle data directly to your documentation system without manual logging. You’ll get consistent sterilization records for compliance audits.
Front or rear water access works with tight counter spaces, and the included pouch rack handles flexible loading configurations. The 7.5-gallon chamber fits 4 full cassettes plus 4 half cassettes loaded vertically.
Key Features
- Closed-door drying with high-efficiency air pump
- Multicolor display with real-time cycle data
- Remote monitoring via networking port
- USB data transfer for documentation
- Flexible front or rear water fill access
- Accommodates 4 full and 4 half cassettes
Specifications for Tuttnauer EZ11Plus Fully Automatic Autoclave
Capacity
- Chamber Volume: 7.5 gallons (28.5 L)
- Standard Cassette Capacity: 4 full & 4 half (loaded vertically)
- Number of Trays: 5
Sizes
- Chamber Dimensions: 11″ (28 cm) x 19.8″ (50.4 cm)
- Tray Dimensions: 6.7″ (16.9 cm) W x 16.3″ (41.3 cm) D x 0.6″ (1.6 cm) H
- Overall Dimensions: 20.9″ (53 cm) W x 24.8″ (63 cm) D x 17.3″ (44 cm) H
Weight
- Shipping Weight: 122 lbs. (56 kg)
Electrical
- Voltage: 120V
- Frequency: 50/60Hz
- Power: 1400W
- Current: 12A
Materials
- Components: Stainless Steel
Illumination
- Type: Conventional; Fiber Optic
Intended Use
- Applications: Tabletop sterilizer for sterile processing and medical instrument sterilization
