About the Stryker 1288 HD 3-Chip Camera
The Stryker 1288 HD delivers true 1080p imaging through progressive scan CCDs that capture detail other endoscopic cameras miss in low-light surgical environments. Nine specialty imaging modes let you optimize visualization for different tissue types without adjusting room lighting or repositioning.

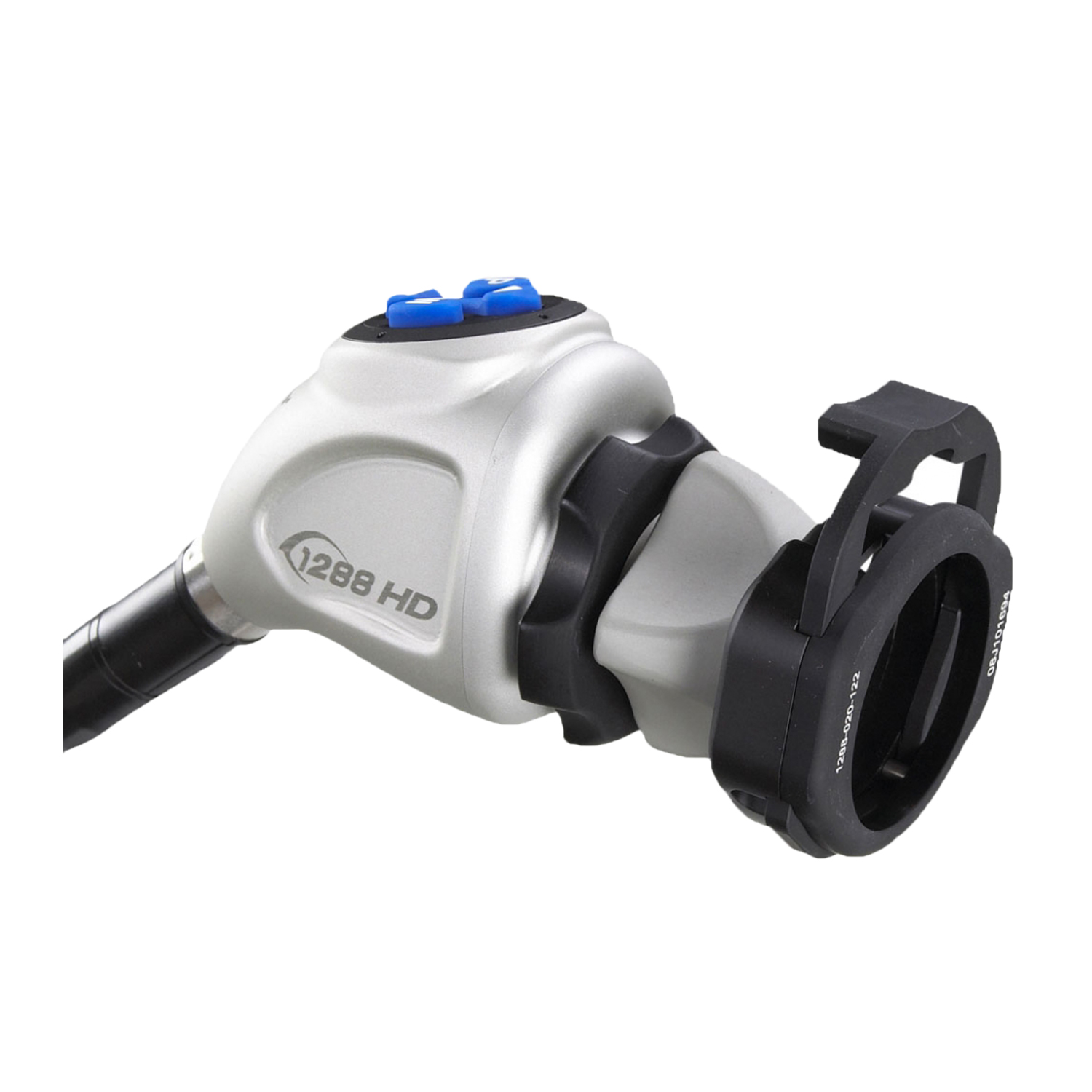

The camera head’s four programmable buttons put your most- functions within thumb reach, while wireless transmission capability eliminates cable management issues in crowded OR setups. Worth noting: the touch-screen interface responds even with wet gloves, and you can control compatible L9000 light sources directly from the camera head.
The fully sealed 10.3-foot cable handles repeated sterilization cycles, and the single-hand focusing design on the 20mm coupler means you won’t need an assistant for routine adjustments during procedures.
Key Features
- 1920 x 1080p high-definition imaging with progressive scan CCDs
- Nine specialty imaging settings for tissue-specific optimization
- Touch-screen LCD interface with wet-glove compatibility
- Four fully programmable buttons on camera head
- Wireless transmission capability
- Fully sealed 10.3 ft camera head cable
- Single-hand focusing design with 20mm coupler
- Integrated L9000 light source control
Specifications for Stryker 1288 HD 3-Chip Camera
Imaging
- Imaging System: Progressive Scan CCDs, high definition
- Resolution: 1920 x 1080p
- Enhancement: 16 levels (switchable)
Video Outputs
- Digital/Analog: Two Digital Video Interface (DVI)/RGBHV
- Supported Formats: 1280 x 1024 (HD), 720p, 1080p (HDTV)
- Digital Connector: 4-pin mini-DIN
- Digital Fiber: HD, HDTV (R, G, B, Clk)
- Fiber Connector: Four Lucent fiber connectors with 1.25 mm ferrules
- Additional Digital: One DisplayPort (20 pin) supporting 1280 x 1024, 720p, 1080p
Contents
- Coupler: 20 mm durable coupler
- Mounting: Eyepiece used with C-mount coupler; C-mount camera head used with C-mount scopes (C-mount coupler/scope thread: 1-32” UN 2A)
Dimensions

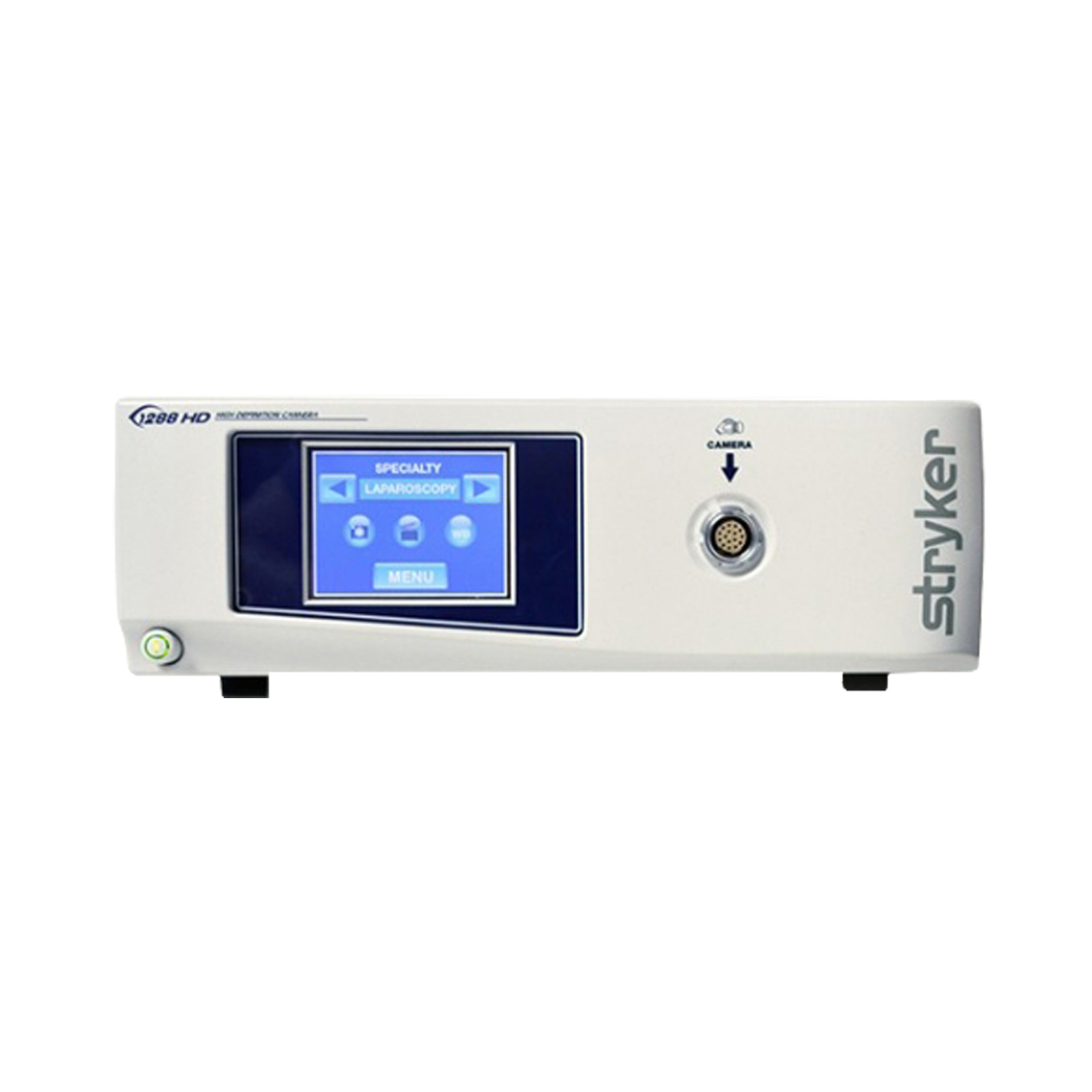

- Camera Console: 12.5 in (31.8 cm) W x 4.0 in (10.2 cm) H x 15.25 in (38.7 cm) D
- Camera Head Cable to Console: 10.3 ft (3.15 m) sealed cable
Weight
- Total Weight: 13 lbs (6.0 kg)
- Camera Console: 0.6 lbs (0.226 kg)
- Coupler: 1.6 lbs (0.680 kg)
Operating Conditions
- Temperature: 5 – 40°C
- Relative Humidity: 30 – 95%
Illumination
- Type: Conventional; fiber optic
