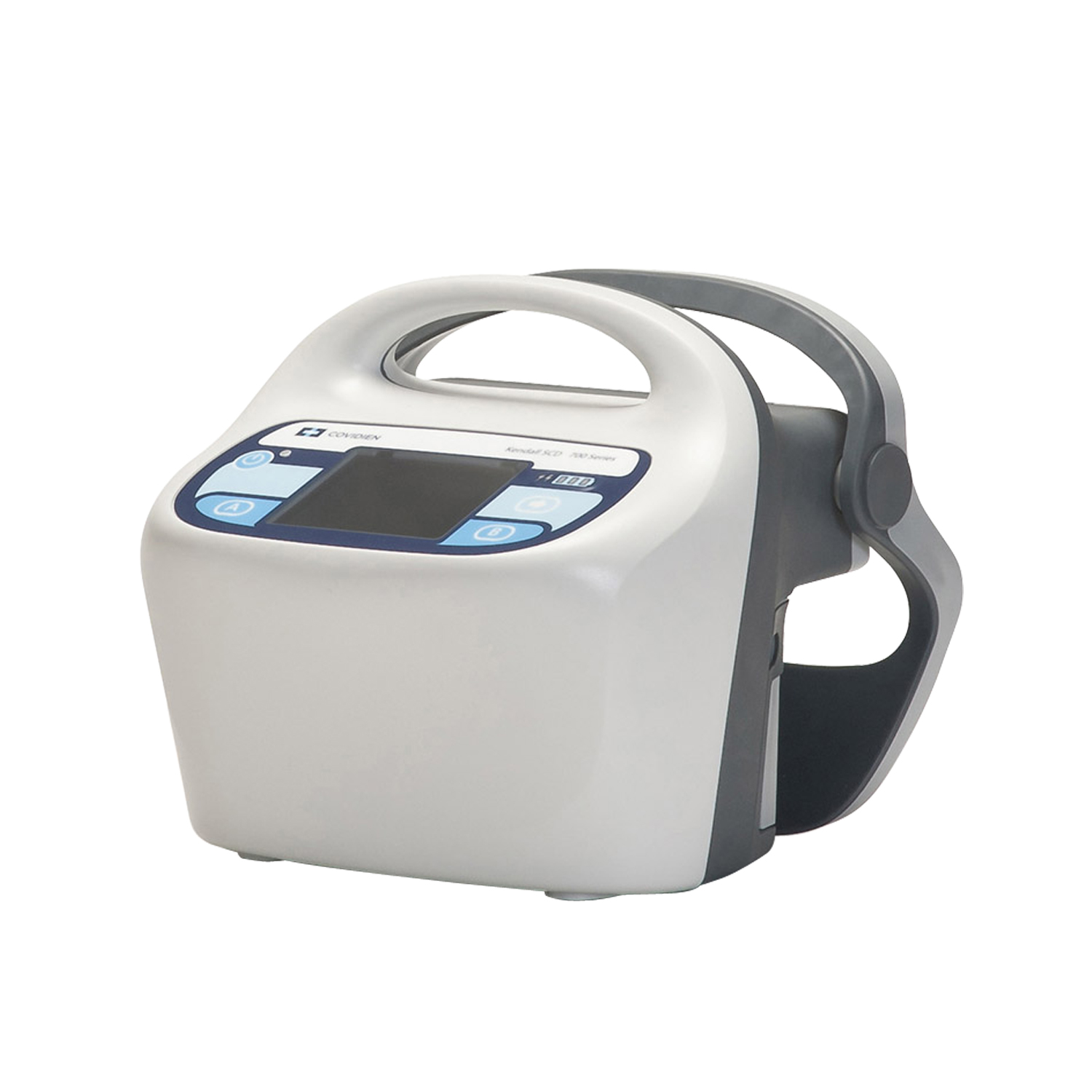

About the Kendall SCD 700 Series Controller
The Kendall SCD 700 Series Controller delivers sequential compression therapy with vascular refill detection that adjusts decompression timing based on individual patient physiology. Unlike fixed-cycle compression devices, it monitors circulation and adapts therapy accordingly.
The animated alarm system shows specific error causes and solutions on a 3.2-inch color display, reducing troubleshooting time for staff. Worth noting: the USB port allows software updates without equipment downtime. The controller works in both facility and home settings with the same clinical protocols.
The unit’s vibration dampeners and soft overmolding keep operational noise low during overnight use. It attaches to most footboards and cleans with standard hospital-grade agents.
Key Features
- Vascular refill detection automatically adjusts decompression timing
- Animated alarm icons show error causes and remedies
- One-touch leg compression operation
- USB port for field software updates
- 3.2-inch color LCD with large visibility icons
- Low-noise operation with vibration dampeners
- Compatible with hospital-grade cleaning agents
- Portable design for facility and home use
Specifications for Kendall SCD 700 Series Controller
Mode of Operation
- Type: Continuous
Compression
- Leg Sleeves: Sequential, Gradient, Circumferential
- Foot Cuffs: Uniform
- Compression Cycle: Leg Sleeves: 11 Seconds Compression; Foot Cuffs: 5 Seconds Decompression
- Decompression Control: Based upon Vascular Refill Detection measurement
- Set Pressure: Leg Sleeves: 45 mmHg; Foot Cuffs: 130 mmHg
Protection
- Ingress Protection: IP23 (IEC 529)
Alarms and Errors
- Audible/Visual Errors: Low Pressure; High Pressure; Internal Electronics Malfunction
- Animated Alarms: Yes (icons communicate causes and remedies)
Power and Connectivity
- Power Cord: 13 feet long with region-specific cordage and plug
- Power Features: Stable power supply and fully protected battery
- USB: Port for software updates
Physical
- Controller Height: 6.8 in (17.3 cm)
- Controller Width: 7.7 in (19.6 cm)
- Controller Depth (freestanding): 7.3 in (18.5 cm)
- Controller Weight: 5 lbs (2.3 kg)
- Shipping Height: 11.6 in (29.4 cm)
- Shipping Width: 9.25 in (23.5 cm)
- Shipping Depth: 13.25 in (33.7 cm)
- Shipping Weight: 7 lbs 4 oz (3.3 kg)
Accessories and Features
- Adjustable Bed Hook: Yes
- Power Cord Storage: Yes
Contents
- Family/Type: set
Sizes
- Available Sizes: 0; 1; 2; 3; 4
Illumination
- Types: Conventional; Fiber Optic
Materials
- Components: Stainless Steel
