Certified Refurbished

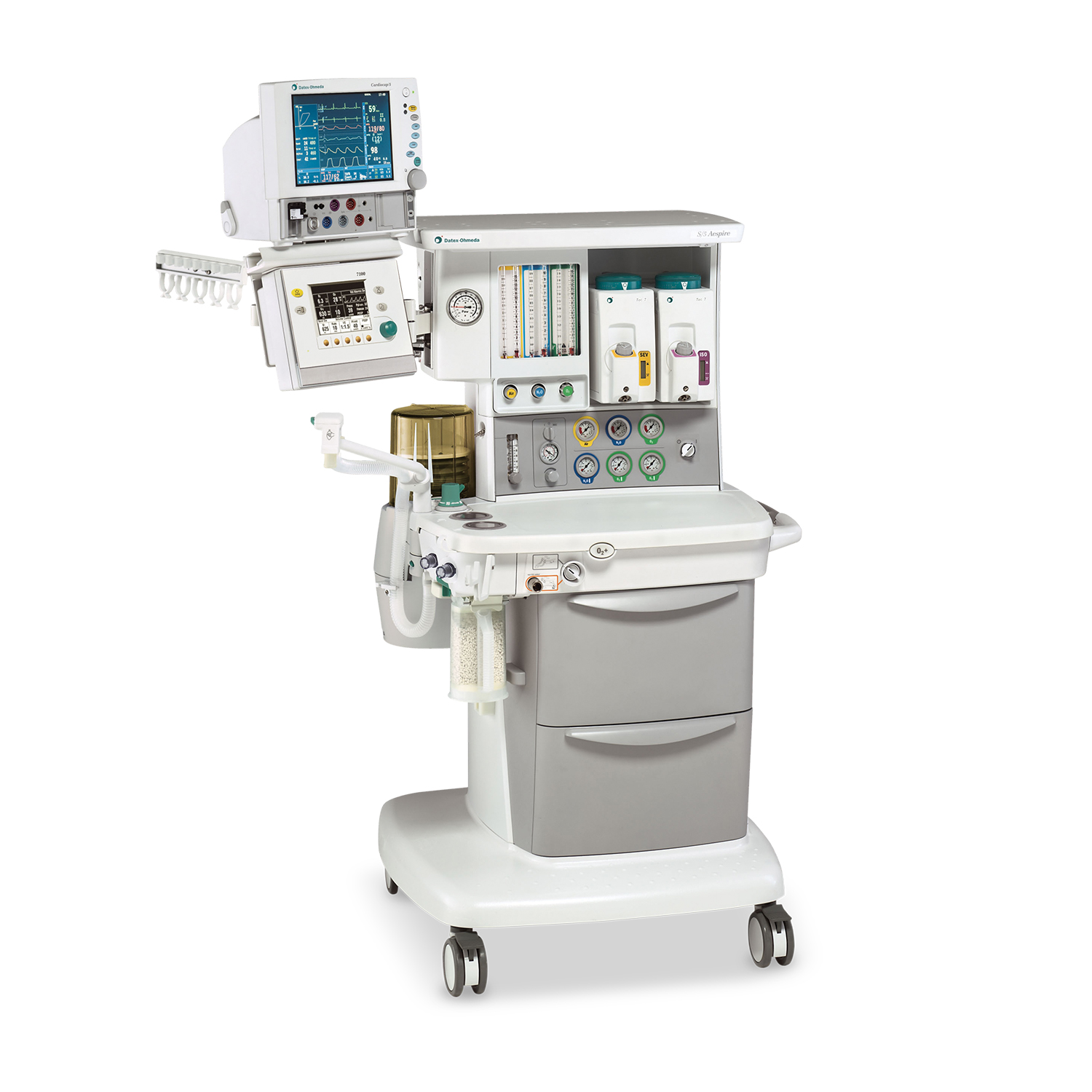

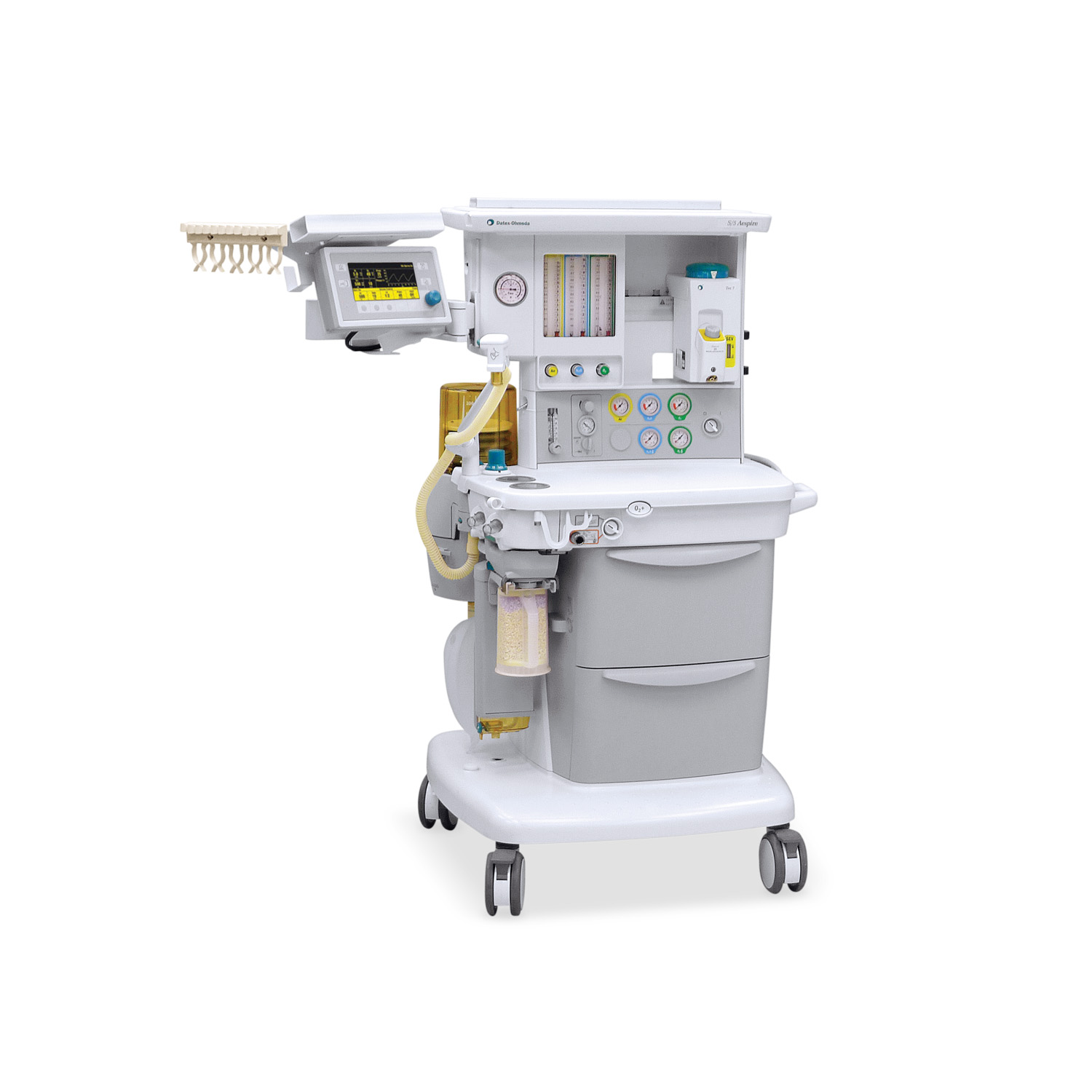

GE Aespire S5 Anesthesia Machine with 7900 Smartvent

The GE Aespire S5 with 7900 SmartVent delivers mechanical ventilation and anesthetic gas in one integrated platform, supporting everything from low-flow.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The GE Aespire S5 with 7900 SmartVent delivers mechanical ventilation and anesthetic gas in one integrated platform, supporting everything from low-flow anesthesia at 50 mL O2 minimum to full ventilator modes. Unlike traditional anesthesia workstations that require separate ventilator add-ons, this system gives you volume and pressure ventilation modes built right in.

Smart alarms pinpoint exactly which ventilator parameters are affected when problems arise, so you’re not hunting through multiple screens during critical moments. The short version: fresh gas flow compensation automatically adjusts for your set parameters, and the one-step bag/vent switch on the Advanced Breathing System means faster transitions between manual and mechanical ventilation.

Worth noting for your biomed team: the breathing circuit components come apart without tools and everything’s autoclavable. The integrated design also means fewer cables and connections cluttering your workspace compared to modular setups.

Key Features

  • Integrated 7900 SmartVent ventilator offering volume and pressure ventilation modes
  • Advanced Breathing System (ABS™) with one-step bag/vent switch
  • Smart alarms that identify specific problems and affected ventilator parameters
  • Optional integrated auxiliary O2 flowmeter and suction control
  • Low-flow capable with minimum O2 flow of 50 mL and fresh gas flow compensation
  • Tool-free disassembly with fully autoclavable, latex-free breathing components

Contents

  • Components: 7900 SmartVent ventilator; Advanced Breathing System (ABS™); optional auxiliary O2 flowmeter and suction control; dual air flow tubes

Physical

  • Height: 134.5 cm / 52.9 in
  • Width: 72 cm / 28.3 in
  • Depth: 73 cm / 28.7 in
  • Weight: Approximately 108 kg / 238 lb
  • Top Shelf Weight Limit: 34 kg / 75 lb
  • Top Shelf Width: 66 cm / 26 in
  • Top Shelf Depth: 40 cm / 15.75 in
  • Work Surface Height: 81.7 cm / 32.2 in
  • Size: 2160 cm-2 / 334 in-2
  • DIN Rail Side Of Machine: 34.5 cm / 13.6 in
  • Drawer Internal Dimensions: Height: 17.5 cm / 6.9 in; Width: 33 cm / 13 in; Depth: 26.5 cm / 10.4 in
  • Absorber Bag Arm (Optional) Arm Length: 30.5 cm / 12 in; Bag Arm Height (Adjustable): 87 cm to 104 cm
  • Casters Diameter: 12.5 cm / 5 in; Brakes: Individual locking front casters

Electrical

  • Power Input: 100-120 Vac, 50/60 Hz
  • Power Cord Length: 5 m / 16.4 ft
  • Power Cord Rating: 15A @ 120 Vac
  • System Circuit Breakers (120 V): 15A
  • Outlets (Optional): 4 outlets on back with individual breakers (3 x 2A, 1 x 3A)
  • Current Leakage 100/120 V: < 300 μA

Pneumatic

  • Auxiliary Common Gas Outlet Connector: ISO 22 mm OD and 15 mm ID
  • Gas Supply Pipeline Input Range: 240 kPa to 600 kPa / 35 psig to 88 psig
  • Pipeline Connections: DISS-male, DISS-female, DIN 13252, AS4059, S90-116 or NIST (ISO 5359)
  • Cylinder Input: Pin indexed per CGA-V-1 or DIN; maximum 3 cylinders (two inboard, one outboard)
  • Primary Regulator Diaphragm Minimum Burst Pressure: 2758 kPa / 400 psig
  • Primary Regulator Nominal Output: < 338 kPa / 49 psig
  • Pin Indexed Cylinder Connections: < 407 kPa / 59 psig

Ventilator

  • Modes: Volume and Pressure modes with electronic PEEP; Synchronized Intermittent Mandatory Ventilation (SIMV); PSVPro (pressure support with apnea backup)
  • Features: Fresh gas flow compensation (available with tidal volume compensation option); tidal volume compensation; dual air flow tubes for higher low-flow resolution

Environmental

  • System Operation Temperature: 10° to 40°C / 50° to 104°F
  • Operation Humidity: 15 to 95% relative humidity (non-condensing)
  • Operation Altitude: -440 to 3565 m
  • System Storage Temperature: -15° to 50°C / -5° to 122°F
  • Storage Humidity: 10 to 95% relative humidity (including condensing)
  • Oxygen Cell Storage: -15° to 50°C / 5° to 122°F; 10 to 95% relative humidity

Electromagnetic Compatibility & Approvals

  • Immunity: Complies with EN 60601-1-2 requirements
  • Emissions: CISPR 11 Group 1 Class B
  • Approvals: UL 2601-1; CSA C22.2 #601.1; EN/IEC 60601-1; CE 0197
