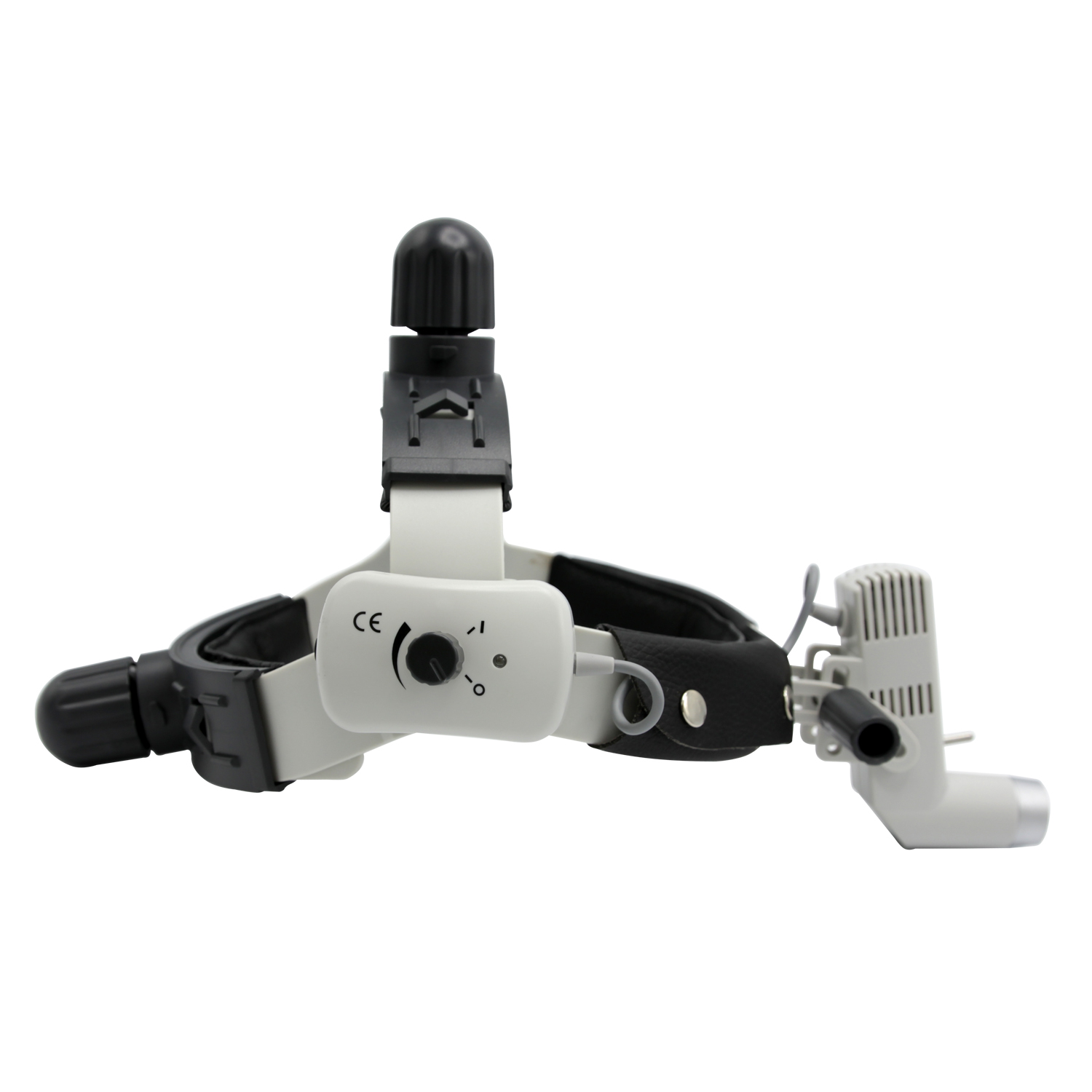

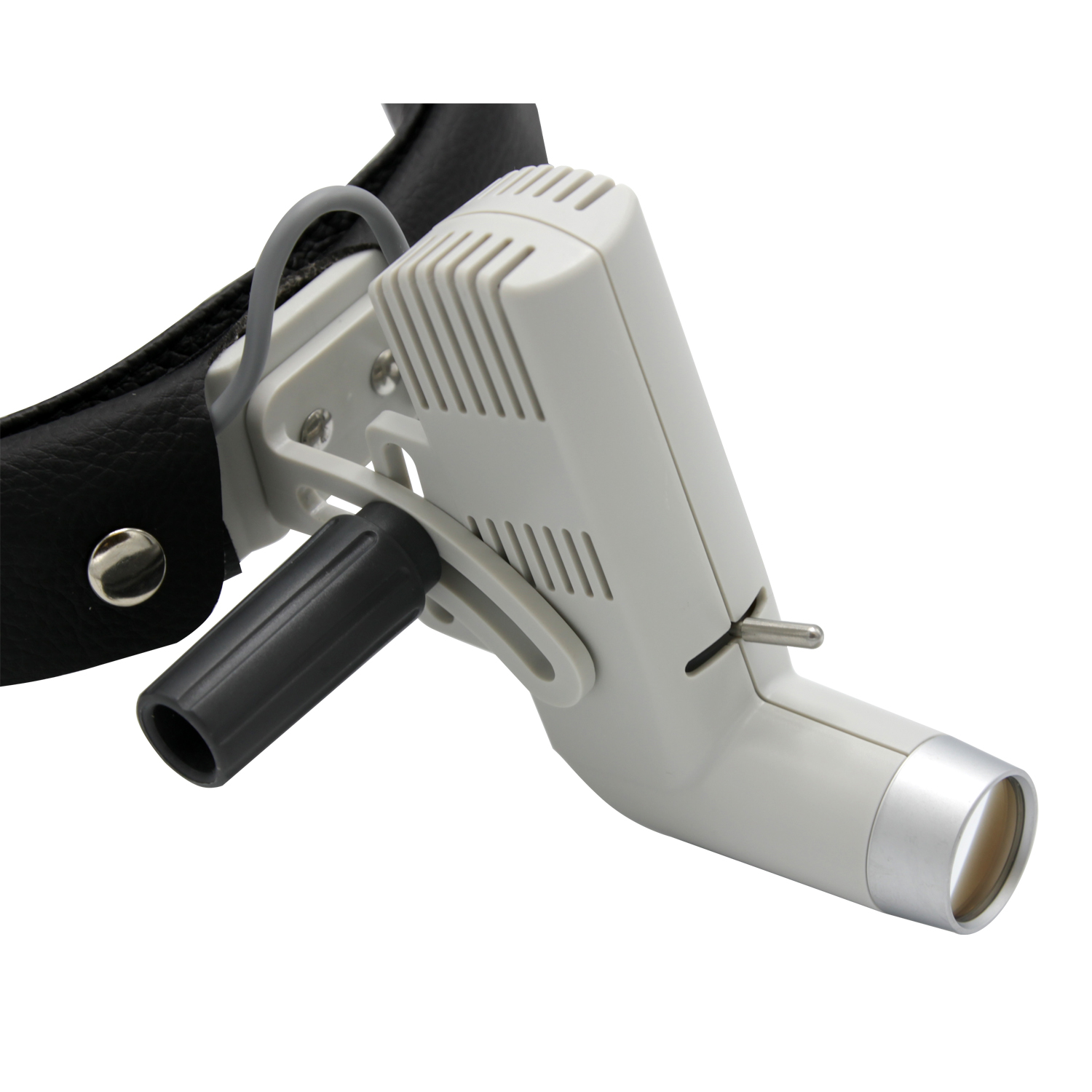

About the DRE Xavier X Medical Headlight
The Xavier X delivers over 50,000 lux of shadow-free illumination at working distance, putting it well above the typical 30,000-40,000 range of standard surgical headlights. The 5000K color temperature provides crisp white light that won’t shift tissue colors during procedures.
Battery runtime exceeds 8 hours on a single charge, and you can keep working while it charges. The upside of the wireless battery option is complete freedom of movement around the OR without cord management. An optional yellow filter reduces blue light exposure during long cases.
At 69 grams for the lamp itself, it’s light enough for extended wear. Spot size adjusts from 20mm to 80mm at standard working distance, and brightness controls let you dial in exactly what each procedure needs.
Key Features
- LED technology runs cooler than halogen alternatives
- 5000K color temperature for accurate tissue visualization
- Continuous use while charging capability
- Lithium battery with power level indicator
- Variable spot size and brightness adjustment
- Lightweight 69g lamp design
- Optional yellow filter for blue light reduction
- Choice of portable or wireless battery pack
Specifications for DRE Xavier X Medical Headlight
## Optical Specification
– Diameter Of Light Spot (at 420 mm): 20-80 mm
– Illumination (at 200 mm): > 50000 Lx
## Adjustable Range
– Fluctuation Distance: 12.5 mm
– Direction Of Illumination: Vertical ±25°
## Weight
– Head Lamp (excluding headband): 69 g
## Illumination
– Source: 5W LED, 20,000 hours continuous burn
## Portable Battery Pack Option
– Battery: 7.4V Lithium, 4600 mAh
– Battery Run-time: > 8 hours
– Input Voltage: 100-240 VAC
– Maximum Power Input: 15 VA
– Electrical Safety Standard: IEC60601.1, Class II
## Wireless Battery Pack Option
– Battery: 7.4V Lithium, 1800 mAh
– Battery Run-time: > 3 hours
– Input Voltage: 100-240 VAC
– Maximum Power Input: 24 VA
– Electrical Safety Standard: IEC60601.1, Class II
## Condition
– Status: New
