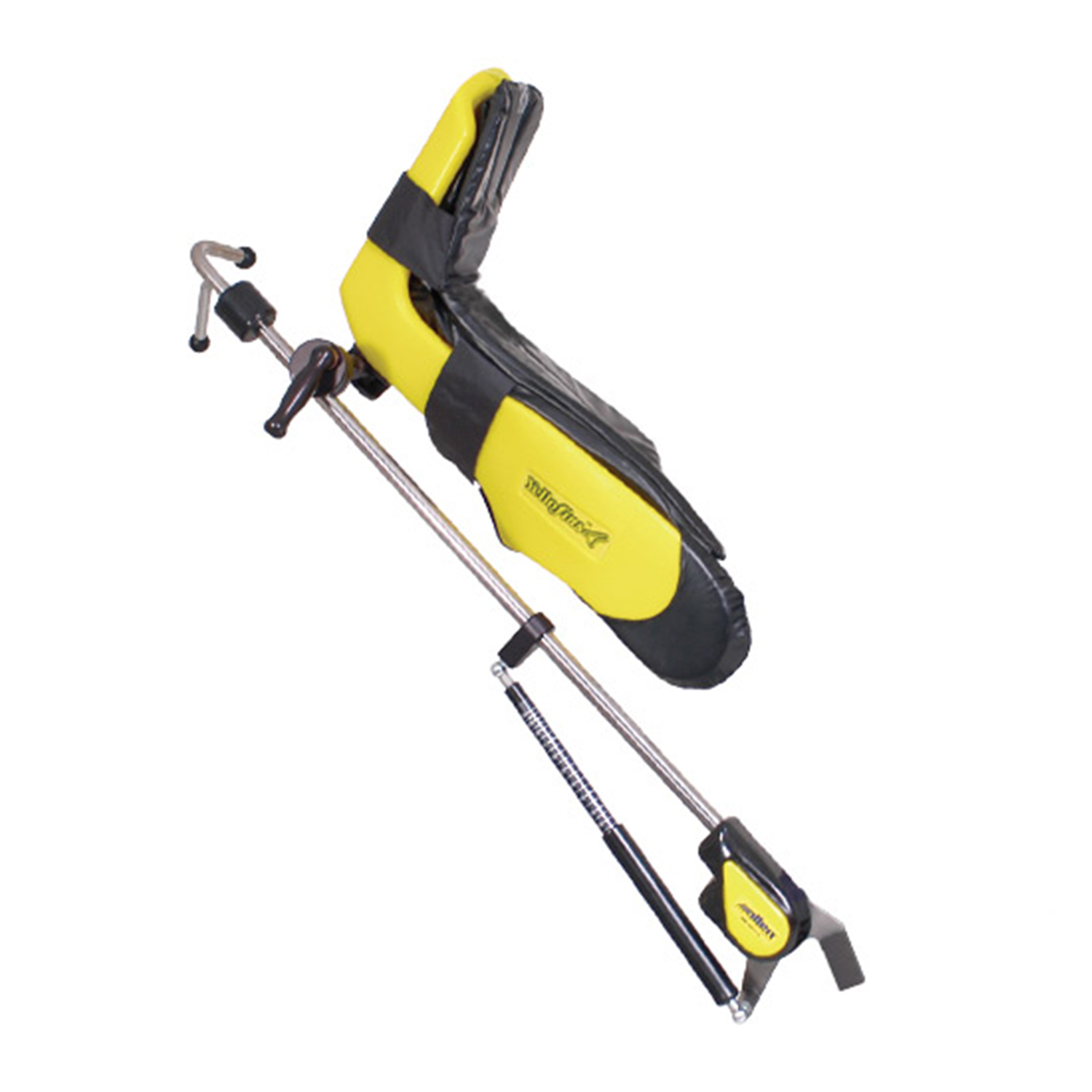

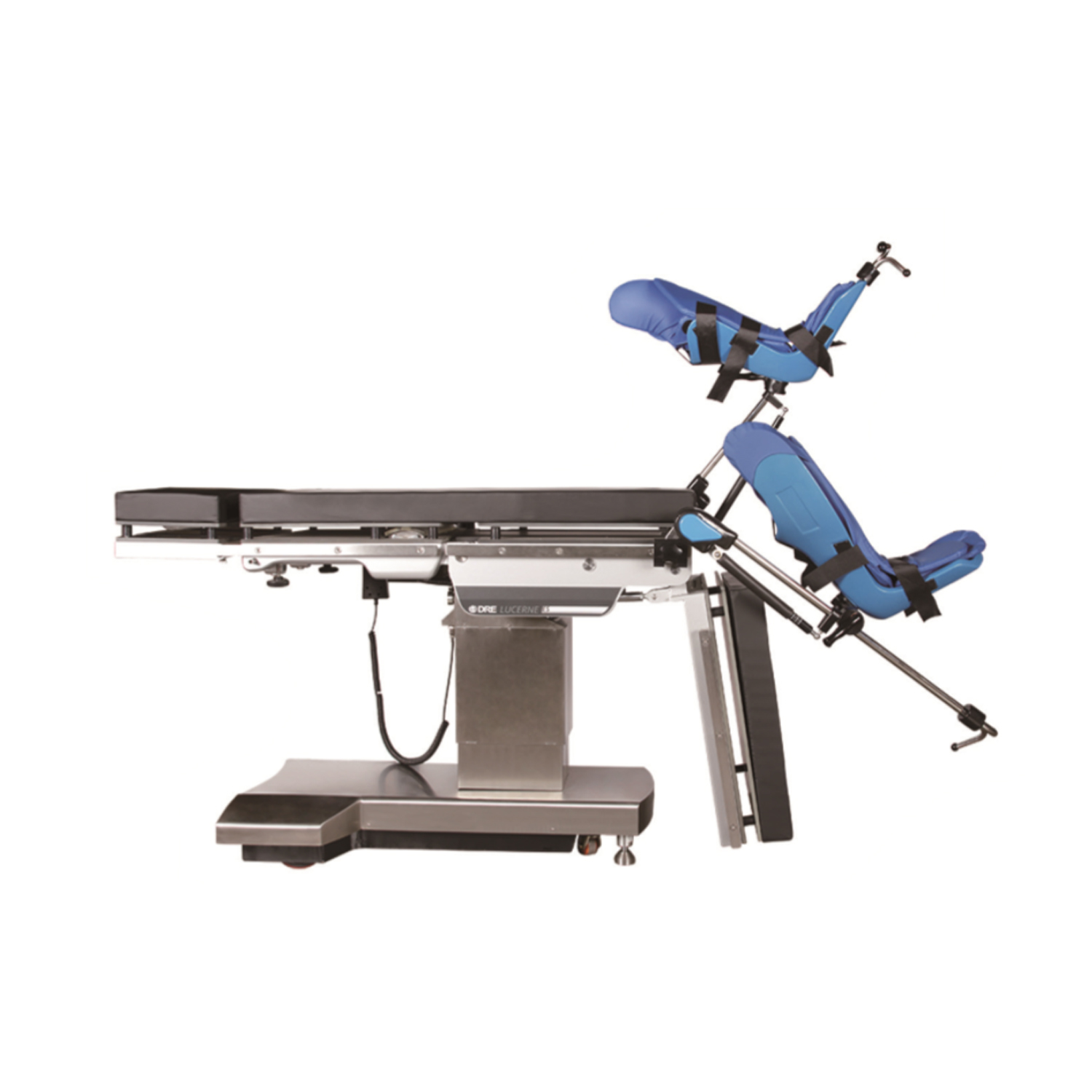

About the DRE Pneumatic Assist Stirrups
These pneumatic stirrups use power-assisted positioning to reduce nerve pressure during lithotomy procedures, unlike manual stirrups that rely on staff strength and guesswork. Protection wings actively shield the peroneal nerves and calves while boots automatically conform to each patient’s leg contours.
The pneumatic system maintains sterile repositioning throughout procedures without breaking the surgical field. Positioning angles display clearly on integrated meters, and the multi-directional adjustment expands operative access for complex cases. Worth noting: the automatic pressure redistribution across the gastrocnemius muscle reduces post-operative numbness complaints.
Full leg wrapping eliminates pressure points from ankle to calf. The system handles patients up to 396 pounds while maintaining precise control.
Key Features
- Power-assisted pneumatic positioning with clear angle indicators
- Protection wings shield peroneal nerves and reduce calf pressure
- Boots automatically adjust to minimize gastrocnemius muscle compression
- Sterile-state repositioning during procedures
- Multi-directional adjustment for lithotomy and abduction positioning
- Complete protective padding from foot to calf
Specifications for DRE Pneumatic Assist Stirrups
Materials
- Components: Stainless Steel
Weight
- Unit Weight: 26.4 lbs
Capacity
- Maximum Patient Weight: Max 396 lbs
Sizes
- Boot Support (Long Side): 23.8 in x 9.2 in x 11.8 in
- Boot Support (Level Side): 17.3 in x 8.6 in x 11.8 in
- Supporting Arm Length: 3.8 in
- Diameter of Supporting Rod (with meter reading): 0.78 in
- Adjustment Range of Boot Support Along Supporting Arm: 12.2 in
Movement
- Range of Vertical Adjustment of Supporting Arm: ≥110°
- Range of Horizontal Adjustment of Supporting Arm: Outer ≥25°, Inner ≥9°
Illumination
- Options: Conventional; Fiber Optic
Sizes (Listed Options)
- Available Sizes: 0; 2; 3; 4
