DRE Envoy Plus T Telemetry System

You can monitor up to 64 patients from a single central station while their bedside monitors transmit data wirelessly.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

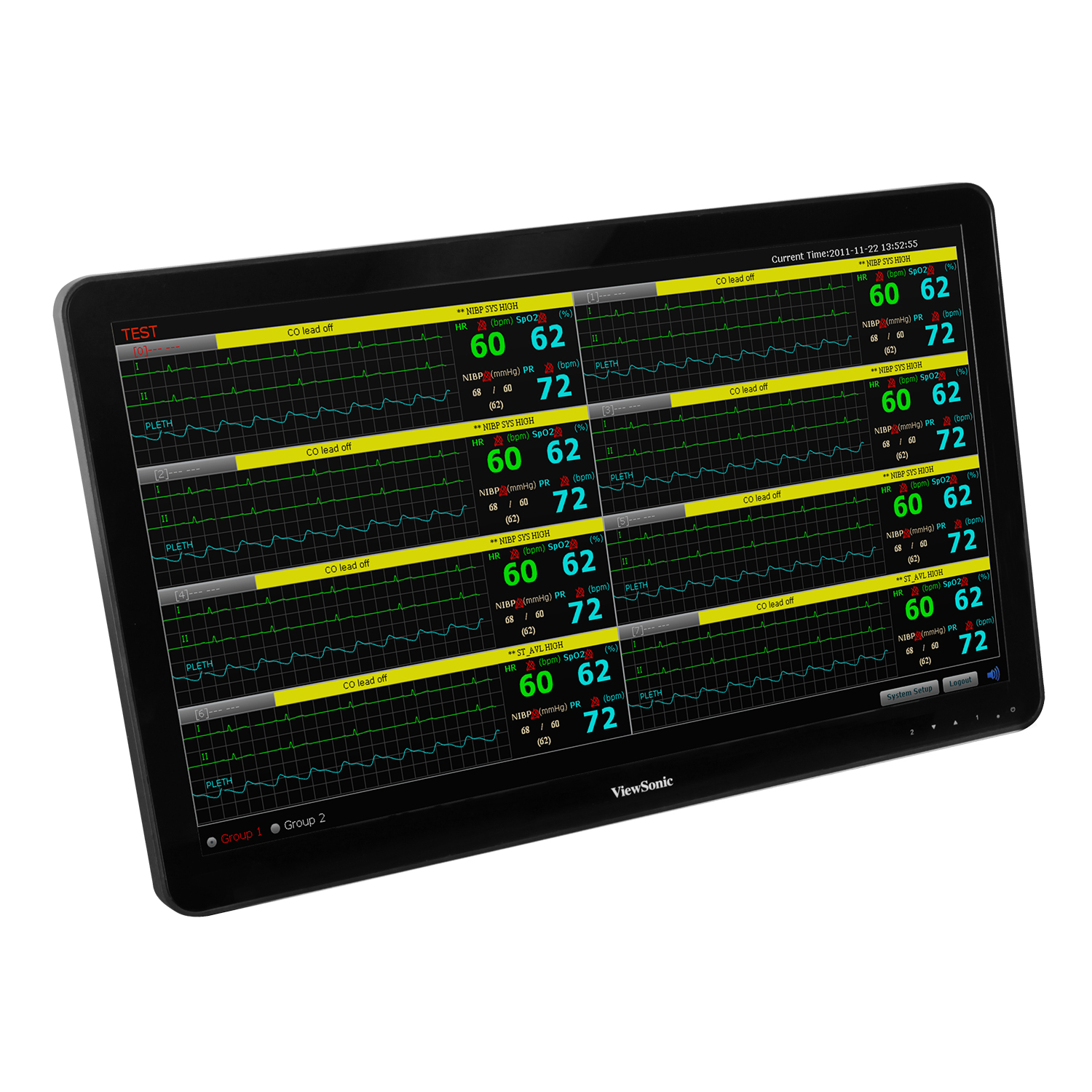

You can monitor up to 64 patients from a single central station while their bedside monitors transmit data wirelessly. The system stores 240 hours of waveform and trend data per monitor, so you won’t lose critical information during shift changes or when reviewing patient history.

The Wi-Fi based telemetry eliminates the cable management headaches you’d face with hardwired systems. Staff can review 12-lead ECGs, track vital trends, and respond to both physiological and technical alarms from the central workstation. Worth noting: the system stores up to 720 records for NIBP, cardiac output, and other measurements, giving you the data depth needed for complex cases.

Key Features

  • Centralized real-time telemetry for up to 64 patients
  • Wi-Fi based telemetry transmitter for wireless data communication
  • Stores and reviews up to 240 hours of waveform/trend data per monitor
  • Supports 12-lead ECG display and 12-lead analysis storage
  • Stores up to 720 records for multiple measurement types (NIBP, 12-lead analysis, C.O., Quick TEMP, PAWP)
  • Alarm reporting for physiological and technical alarm types

Capacity

  • Simultaneous Monitoring: Up to 64 patients
  • Waveform Storage and Review: Up to 240 hours of waveform data per monitor/device (default 96 hours)
  • Trend Data Storage: Up to 240 hours
  • NIBP Measurement Storage: Stores up to 720 NIBP measurements per monitor
  • 12‑Lead Analysis Results Storage: Stores up to 720 results per monitor
  • C.O. Measurements Storage: Stores up to 720 C.O. measurements per monitor
  • Quick TEMP Measurements Storage: Stores up to 720 Quick TEMP measurements per monitor
  • PAWP Measurements Storage: Stores up to 720 PAWP measurements per monitor
  • Alarm Events: 720 parameter alarm events per monitor/device

Contents

  • Physiological Waveforms: 2 ECG waveforms; 1 RESP waveform; 1 PLETH waveform; 8 IBP waveforms; 1 CO2 waveform; 4 AG waveforms (CO2, O2, N2O, AA); 3 RM waveforms; 1 CO2 (RM) waveform; 1 ICG waveform; 1 BIS waveform
  • Auxiliary Screen Sub‑Window Options: Single Bed View (default)
  • Patient Management: Patient Mgmt; Wave Review; Alarm Review; Trend Review; NIBP Review; Parameter/Waveform Setup; 12‑Lead Review; C.O. Measure Review; Quick TEMP Review; PAWP Review
  • Wave Speed Options: 6.25 mm/s; 12.5 mm/s; 25 mm/s; 50 mm/s

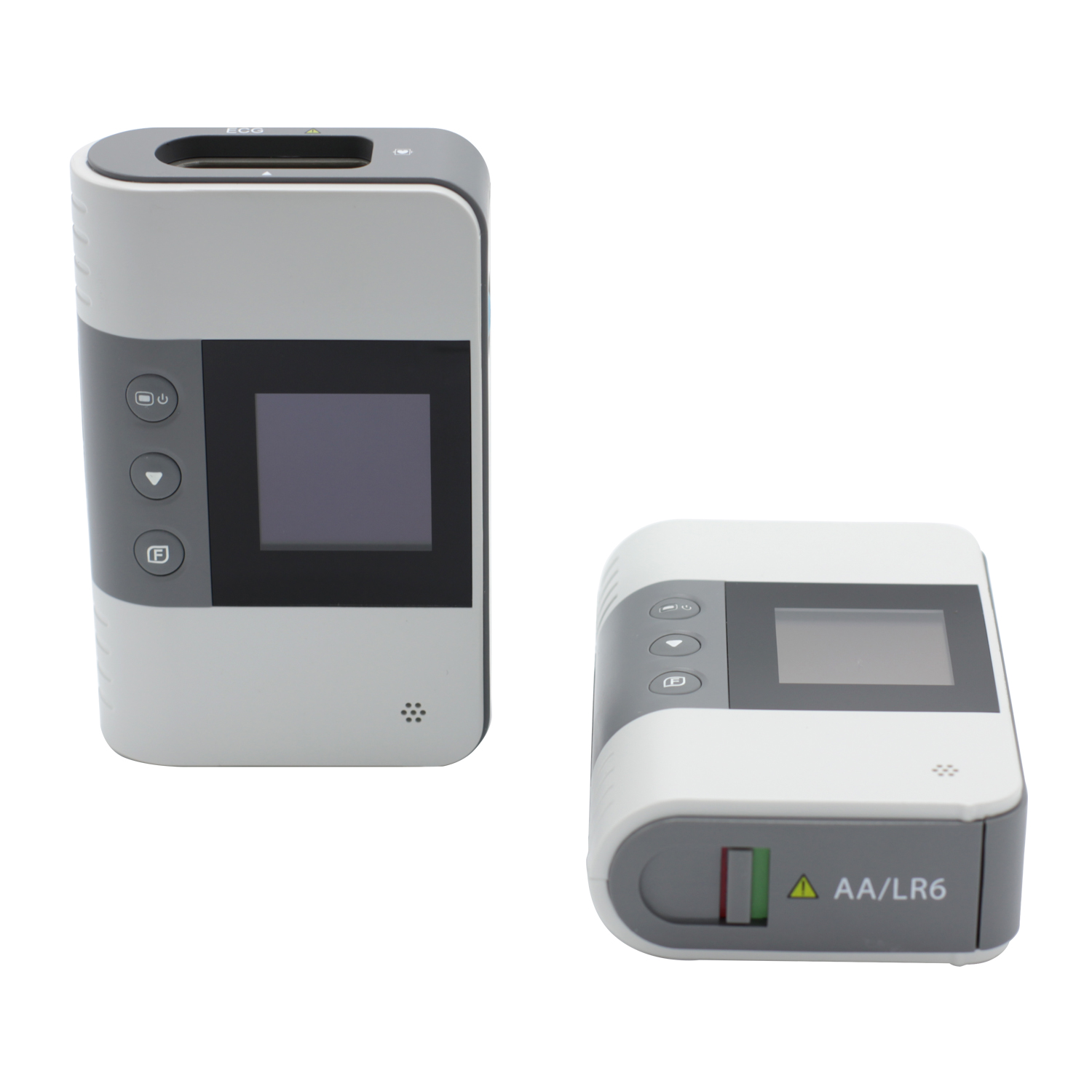

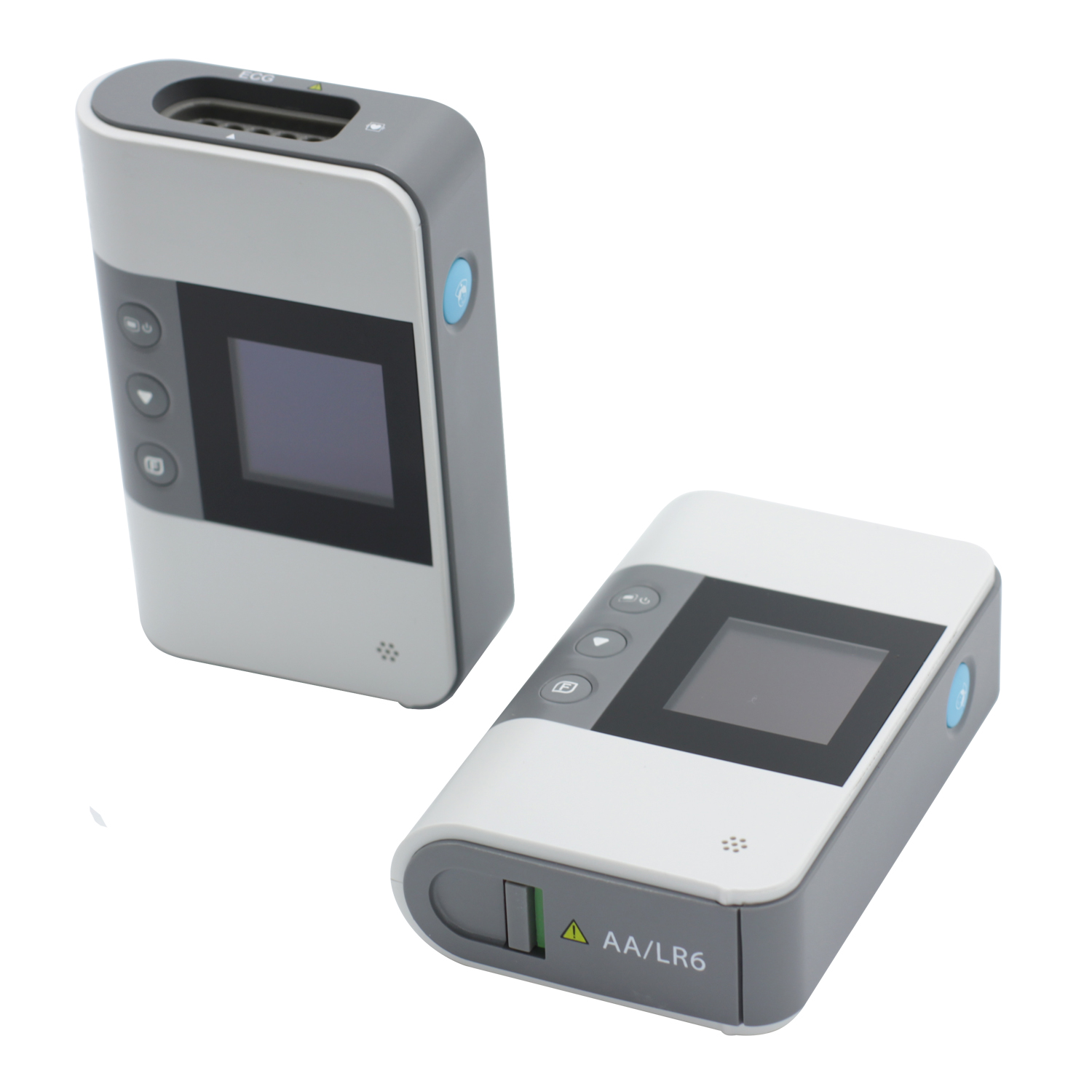

Wireless Transmitters

  • Dimensions: 100 mm x 64 mm x 26 mm (3.92 in x 2.52 in x 1.02 in)
  • Display: 1.46‑inch color screen, 128 x 128 resolution
  • Weight: < 140 g
  • Power: 100 hours (AA battery)
