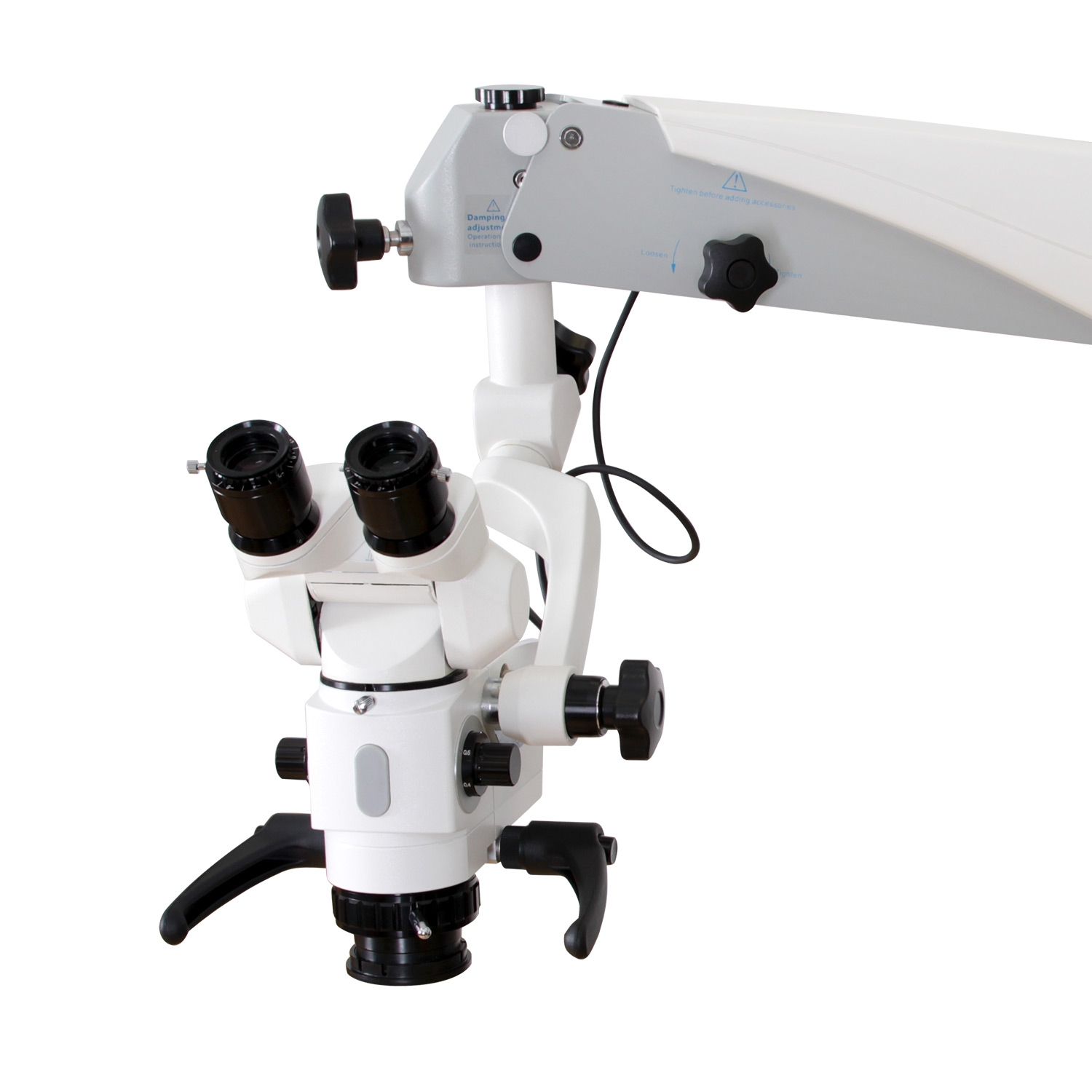

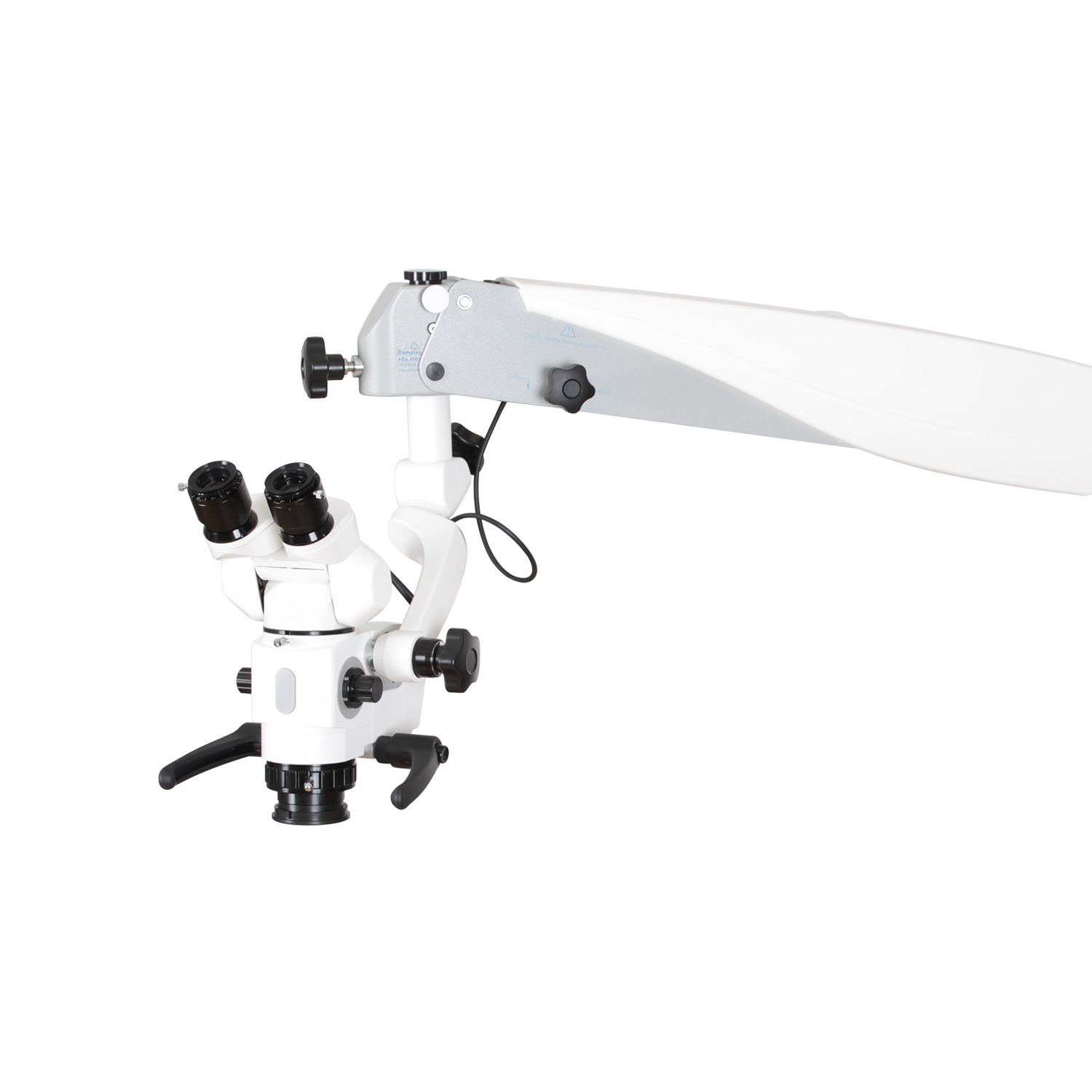

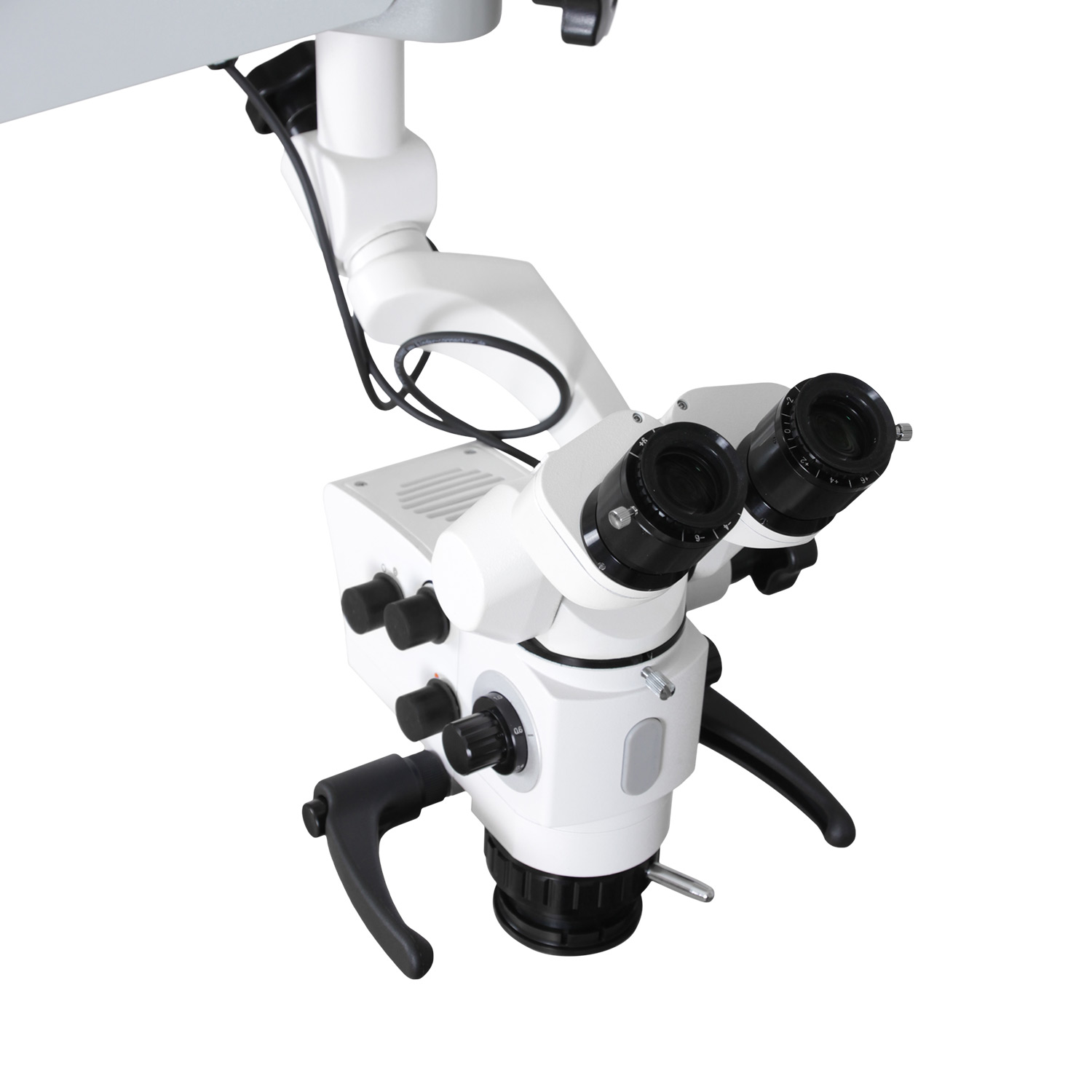

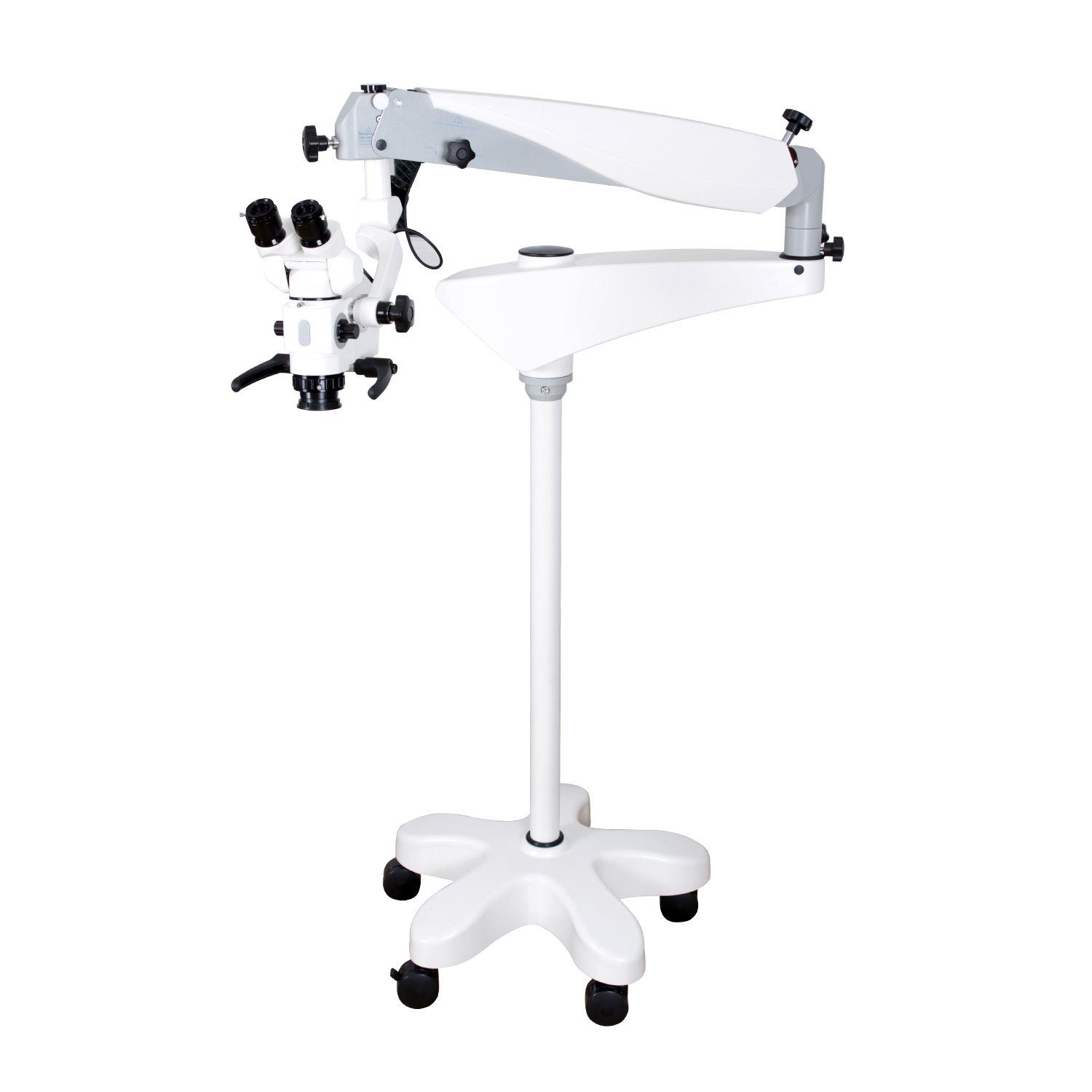

DRE Compass E10 Microscope

Apochromatic optics deliver superior contrast and resolution compared to standard achromatic systems, reducing chromatic aberration that can obscure fine.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

Apochromatic optics deliver superior contrast and resolution compared to standard achromatic systems, reducing chromatic aberration that can obscure fine tissue details during delicate ENT and dental procedures. The short version: you get clearer visualization at the magnifications that matter most for precision work.

Choose between 3-step magnification (3.2x to 20x) for streamlined workflows or 5-step options when you need intermediate magnifications like 5x and 12.7x. Dual LED illumination provides consistent, shadow-free lighting with multiple modes to match tissue types and procedural requirements.

The 360° rotating microscope body lets you position optics without repositioning the entire system. Adjustable eyecups with diopter locks accommodate different users without losing focus settings between cases.

Key Features

  • Apochromatic optical design eliminates chromatic aberration for enhanced contrast
  • Selectable 3-step or 5-step magnification systems
  • Dual LED illumination with multiple lighting modes
  • 360° microscope body rotation for flexible positioning
  • Adjustable eyecups with individual diopter locks
  • Multiple binocular head incline options available

Optics

  • Objective Lens: 250mm
  • Eyepieces: 2.5x/18mm High Eye-point Wide-Field eyepieces with diopter locks and adjustable eyecups
  • Apochromatic Optics: Yes

Magnification

  • Standard Magnifications (3-step): 3.2x, 8x, 20x
  • Standard Magnifications (5-step): 3.2x, 5x, 8x, 12.7x, 20x
  • Optional Magnification: Combine eyepiece (10x, 16x, 20x) with objective lens (175mm, 200mm, 300mm, 400mm)

Observation

  • Field of View: 65mm to 10mm
  • Range of Pupillary Distance: 50mm to 75mm

Illumination

  • Brightness: 45,000 Lux
  • Illumination Types: Dual LED lamps; three illumination modes (double light path stereo illumination, +4° big field illumination, -4° small field illumination)

Mechanical

  • Microscope Body Rotation: 360°
  • Binocular Head Incline (depending on model): 0°-180° / 0°-60° / 45° / Straight

Electrical

  • Power: 40 VA, 500 mA

Materials

  • Component Material: Stainless Steel

Intended Use

  • Settings: Dental and ENT surgical applications
Certified Refurbished
