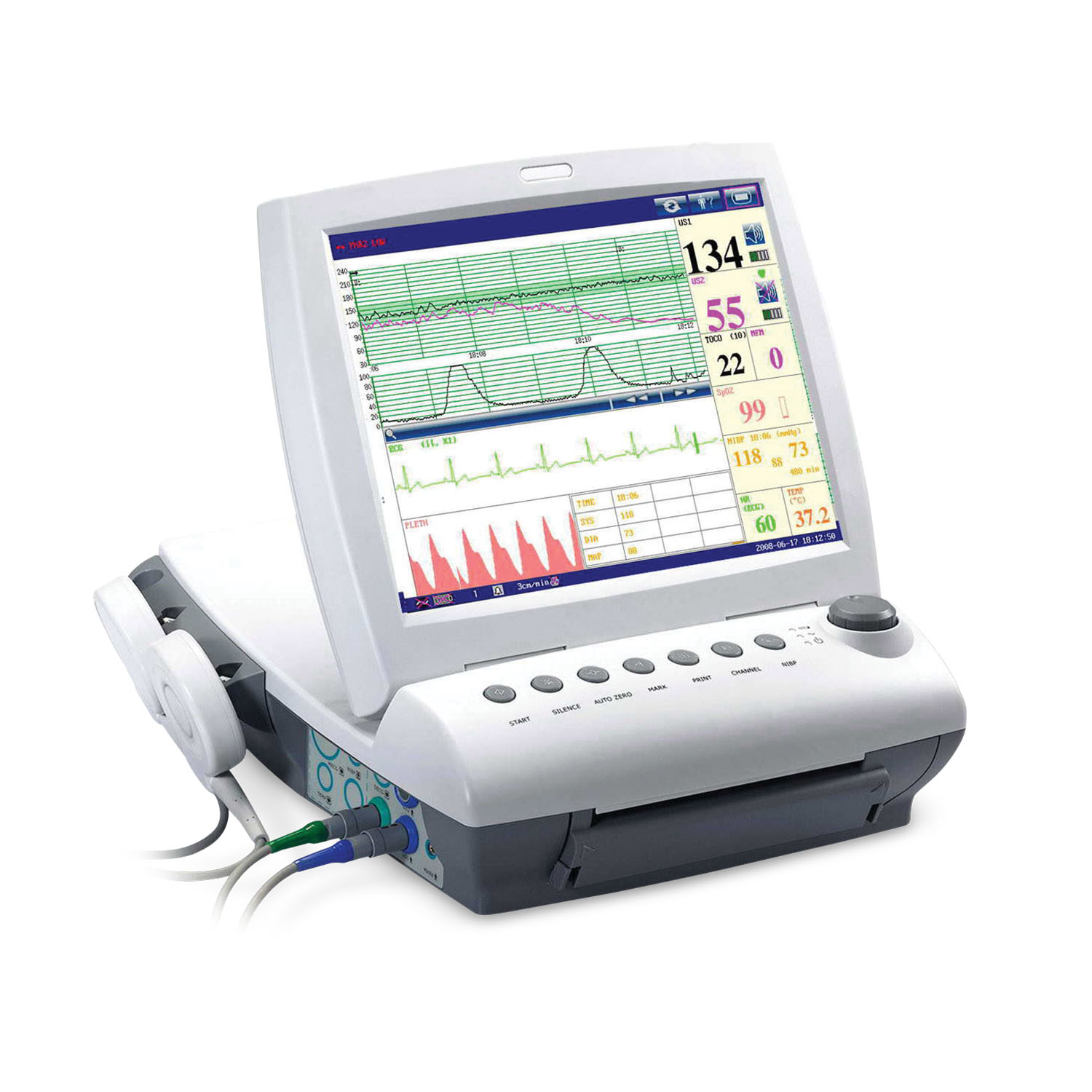

DRE Compact Plus Fetal/Maternal Monitor

Signal overlap verification and alerts help prevent the common problem of accidentally monitoring maternal heart rate instead of fetal.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

Signal overlap verification and alerts help prevent the common problem of accidentally monitoring maternal heart rate instead of fetal. The system actively checks for signal crossover and warns clinicians when readings might be compromised, which matters when you’re making critical decisions based on fetal heart rate patterns.

Twin fetal monitoring lets you track both babies simultaneously during high-risk pregnancies without juggling multiple devices. The 12-inch touchscreen displays all parameters on one view, and the built-in thermal printer produces immediate hard copies for the medical record. Worth noting: the rechargeable battery gives you about four hours of untethered monitoring, so you can move between rooms or take readings wherever needed.

The folding screen and carrying handle make transport straightforward. At roughly 13 pounds, it’s portable enough for bedside use but substantial enough to stay put during routine monitoring.

Key Features

  • Signal overlap verification with alerts to prevent maternal/fetal heart rate confusion
  • Twin fetal heart rate monitoring on single 12-inch color touchscreen
  • Integrated uterine activity, fetal movement, and optional intrauterine pressure monitoring
  • Built-in thermal printer with fast print mode up to 25 mm/sec
  • 14.8V lithium-ion battery for approximately 4 hours continuous operation
  • Optional direct fetal ECG (DECG) and intrauterine pressure channels
  • Folding screen with probe rack and wall mount for flexible placement
  • User-selectable display modes and four color schemes

Physical

  • Dimensions: 347 × 330 × 126 mm
  • Weight: Approx. 6 kg

Performance

  • Display: 12″ color TFT-LCD
  • Resolution: 800 × 480
  • Recorder Paper: Z-fold, thermosensitive
  • Recorder Printing Speeds: 1/2/3 cm/min real-time; fast print up to 25 mm/sec
  • Ultrasound Technique: Pulse Doppler with auto-correlation
  • Pulse Repetition Rate: 2 KHz
  • Ultrasound Frequency: 1.0 MHz ± 10%
  • FHR Range: 50 bpm – 240 bpm
  • FHR Accuracy: ±1 bpm

TOCO

  • Range: 0-100 (relative %)
  • Resolution: 1 count
  • Zero Mode: Automatic / manual
  • Non-linear: ±10%

Fetal Movement

  • Technique: Pulse Doppler ultrasound
  • AFM Range: 0-100 (%)
  • Resolution: 1%

DECG

  • Technique: Peak-peak detection
  • FHR Range (American Standard): 30 bpm – 240 bpm
  • FHR Range (International Standard): 50 bpm – 210 bpm
  • Resolution: 1 bpm
  • Accuracy: ±1 bpm
  • Input Impedance (Differential, DC 50/60 Hz): >10M
  • Input Impedance (Common Mode): >20M

IUP

  • Pressure Range: 0-100 mmHg
  • Resolution: 1%
  • Zero Mode: Automatic/manual
  • Non-linear: ±1 mmHg

SpO2

  • Measuring Range: 0% – 100%
  • Resolution: 1%
  • Measuring Accuracy: 90% – 100% ±2; 70% – 90% ±4
  • PR Measuring Range: 30 bpm – 240 bpm
  • PR Accuracy: ±2 bpm

NIBP

  • Systolic Pressure: 50 mmHg – 240 mmHg
  • Mean Pressure: 25 mmHg – 200 mmHg
  • Diastolic Pressure: 15 mmHg – 180 mmHg
  • Resolution: 1 mmHg

Temperature

  • Measuring Range: 28.0°C – 44.0°C
  • Accuracy: ±0.2°C

Battery

  • Type: 14.8 V rechargeable Lithium-ion
  • Continuous Working Time: 4 hours

Contents / Configuration

  • Dual-FHR: Yes
  • TOCO: Yes
  • FM (Fetal Movement): Yes
  • AFM: Yes
  • DECG/IUP: Optional
  • MECG: (DREPro Deluxe only) Yes / (DREPlus Express) No
  • NIBP: (DREPro Deluxe) Yes / (DREPlus Express) No
  • MSPO2: (DREPro Deluxe) Yes / (DREPlus Express) No
  • Temp: (DREPro Deluxe) Optional / (DREPlus Express) No
  • Fetal Stimulator: Optional
  • Lithium-ion Battery: Optional

Intended Use

  • Monitoring: Fetal external parameters (including twins), external uterine contraction, fetal internal parameters (DECG, IUP), and maternal parameters (NIBP, ECG, Temp, SpO2) for antepartum, intrapartum and postpartum applications
