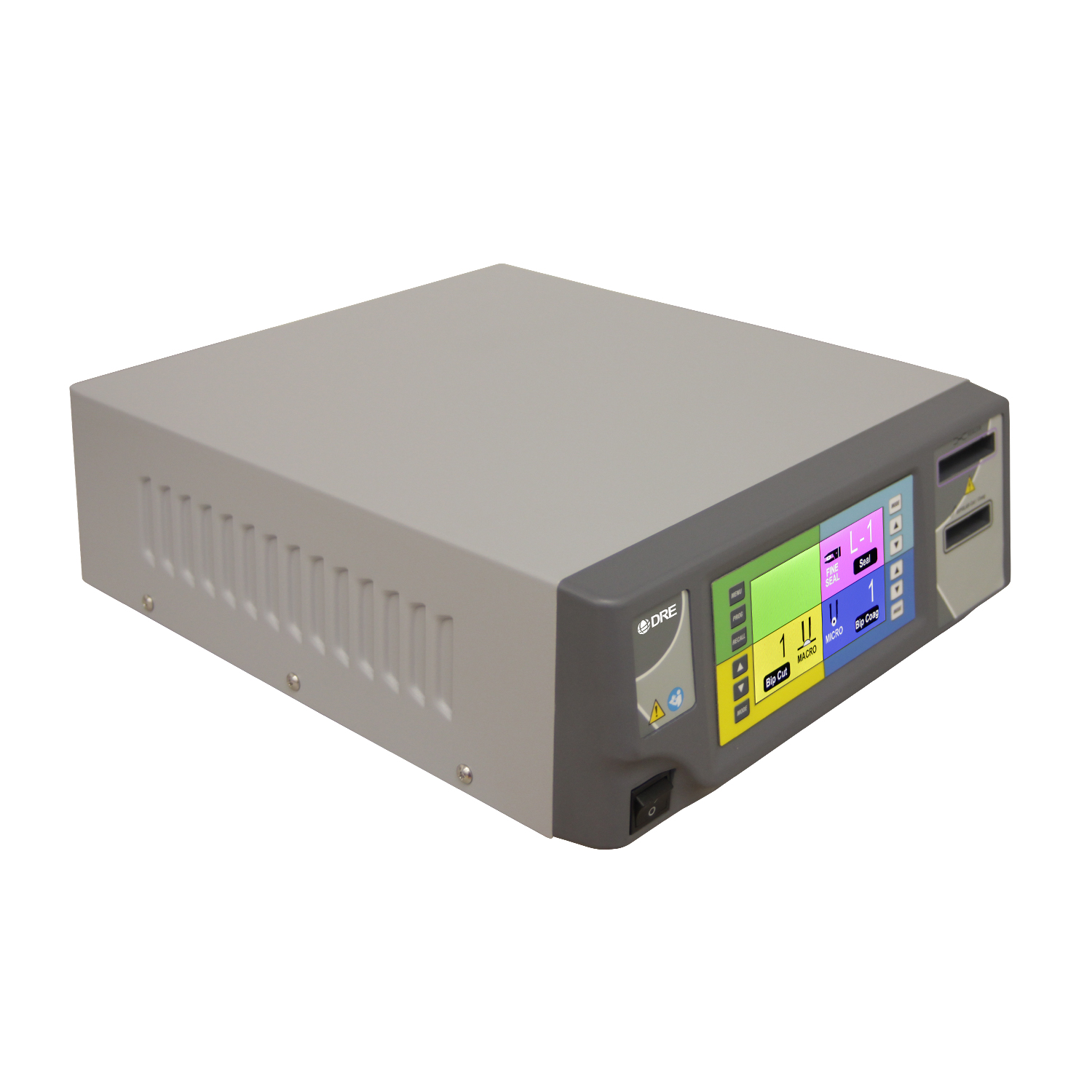

About the DRE Citadel EVS Vessel Sealing System
The Citadel EVS combines vessel sealing and bipolar electrosurgery modes in one microprocessor-controlled unit, eliminating the need for multiple ESU systems during complex procedures. Unlike standard bipolar units that require constant manual adjustments, this system automatically modulates power delivery based on real-time tissue feedback.
6Sense Technology monitors voltage, current, power, tissue density, and RF leakage simultaneously, giving you continuous feedback on seal quality and tissue response. Audio alarms signal completion of bipolar coagulation, reducing the guesswork that leads to tissue charring or instrument sticking. The short version: it tells you when to stop.
Program settings customize easily for different procedure types, and the compact footprint won’t crowd your existing OR setup. Worth noting, the system weighs under 5kg and operates reliably in standard OR environmental conditions.
Key Features
- Integrated vessel sealing and bipolar electrosurgery in one unit
- 6Sense Technology for real-time tissue monitoring and feedback
- Audio completion alarms to prevent overcoagulation
- Customizable program settings for various surgical procedures
- Macro Bipolar, Micro Bipolar, and Sealer modes with microprocessor control

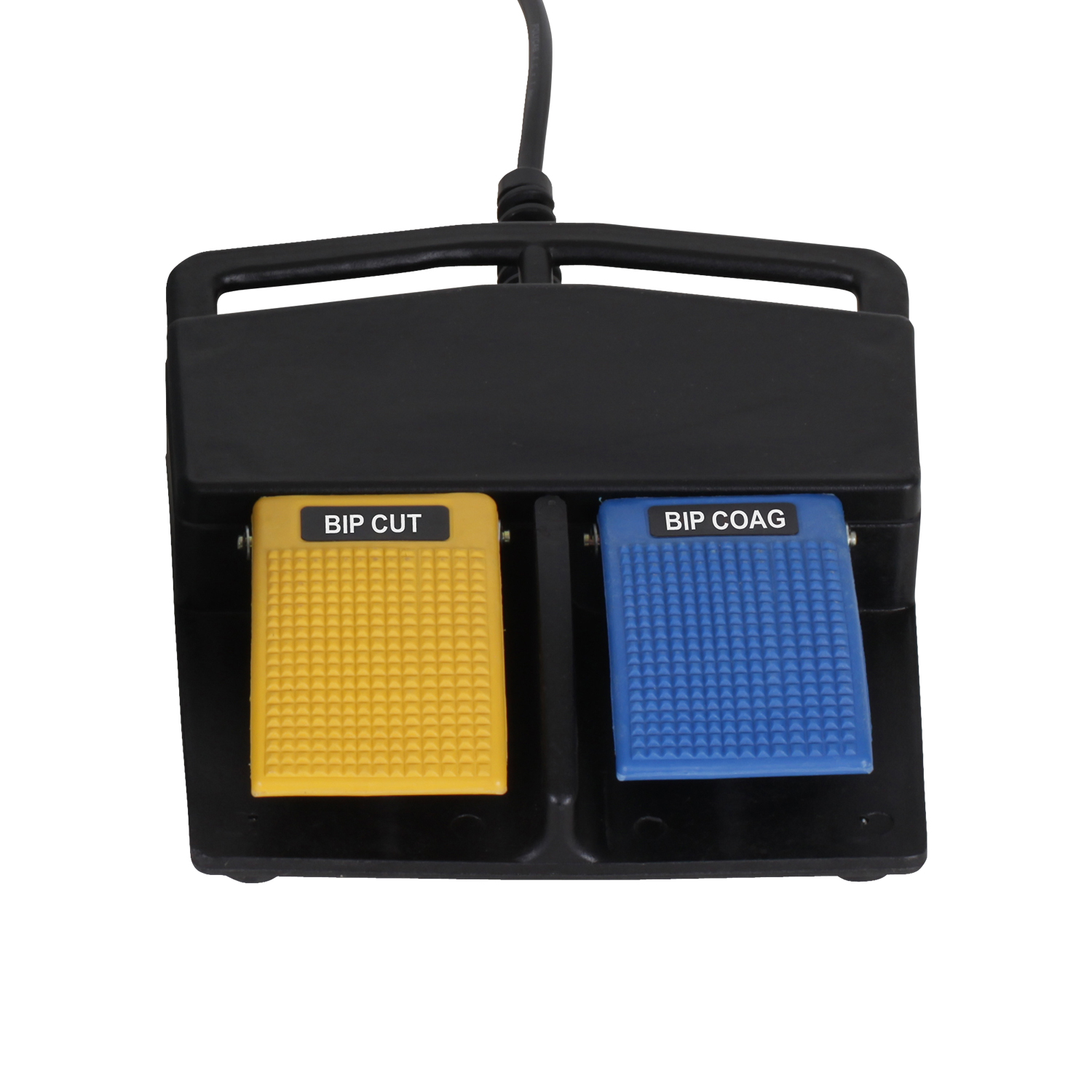

- Complete accessory options including footswitches, grounding pads, and sealing instruments
Specifications for DRE Citadel EVS Vessel Sealing System
Outputs
- Bipolar Micro: 95 W at 100 Ω, CF 1.5
- Vessel Sealer (Sealer): 150 W at 100 Ω, CF 1.5
Dimensions
- Length: 38 cm
- Width: 30.5 cm
- Height: 11.5 cm
Weight
- Weight: < 5.0 kg
Transport & Storage
- Temperature Range: -40°C to 70°C
- Relative Humidity: 10% to 100%, condensing
Operating Parameters
- Temperature Range: 10°C to 40°C
- Relative Humidity: 30% to 75%, non-condensing
Audio
- Activation Tone: Volume (adjustable): 50 to ≥ 65 dB
- Activation Tone: Frequency (Bipolar): 940 Hz
- Alarm Tone: Volume (not adjustable): ≥ 65 dB
- Alarm Tone: Frequency: 660 Hz
- Alarm Tone: Pulse: Two Pulse 1 sec ON time, 1 sec OFF time
Power
- Mains Nominal Voltage: 110 Volt
- Maximum VA at Nominal Line Voltage: Idle: 60 VA | Bipolar: 360 VA | Cut: 816 VA | Coag: 480 VA
- Input Mains Voltage, Full Regulation Range: 90-135 Vac
- Input Mains Voltage, Operating Range: 80-140 Vac
- Mains Current (Maximum): Idle: 0.4 A | Bipolar: 2.6 A | Cut: 6.4 A | Coag: 3.6 A
- Mains Line Frequency Range (Nominal): 50 to 60 Hz
- Fusing: 10 A
- Power Cord: 3-prong standard connector
General
- Warm-up Time: Allow one hour for the generator to reach room temperature before use if transported or stored outside the operating temperature range
- Internal Memory: Non-volatile
- High Frequency (RF) Leakage Current: Bipolar RF leakage current: < 60 mA RMS
Intended Use
- Settings: Operating Room; Ambulatory Surgery Center; Plastic Surgery; Oral Maxillofacial Surgery (OMS); Medical Practice; Dermatology; Urology; OBGYN; NGO
