DRE Avela Procedure Chair
Four independent motors control every adjustment on the Avela Procedure Chair, eliminating the manual cranking and positioning that slows down patient setup.
Quality Management
Facility & Processes
Biomedical Technicians
About the DRE Avela Procedure Chair
Four independent motors control every adjustment on the Avela Procedure Chair, eliminating the manual cranking and positioning that slows down patient setup. Unlike basic procedure chairs that require staff to physically adjust multiple components, the Avela’s motorized height, backrest, footrest, and incline systems respond instantly to hand or foot controls.
The 3-position memory function saves your most- configurations and recalls them with a single button press. Worth noting: dual foot pedals on both sides let you adjust height and positioning without taking your hands off the patient, while the 240° rotation radius gives you complete access for procedures or transfers without repositioning the entire chair.
The stirrup system removes completely when you don’t need it and adjusts to multiple angles when you do. Height range from 25.2″ to 38.6″ works for both staff ergonomics and patient transfers, while RESET buttons on the hand controller and backrest return the chair to upright from any position.
Key Features
- 4-motor independent control eliminates manual positioning effort
- 3-position memory saves and recalls preferred patient positions instantly

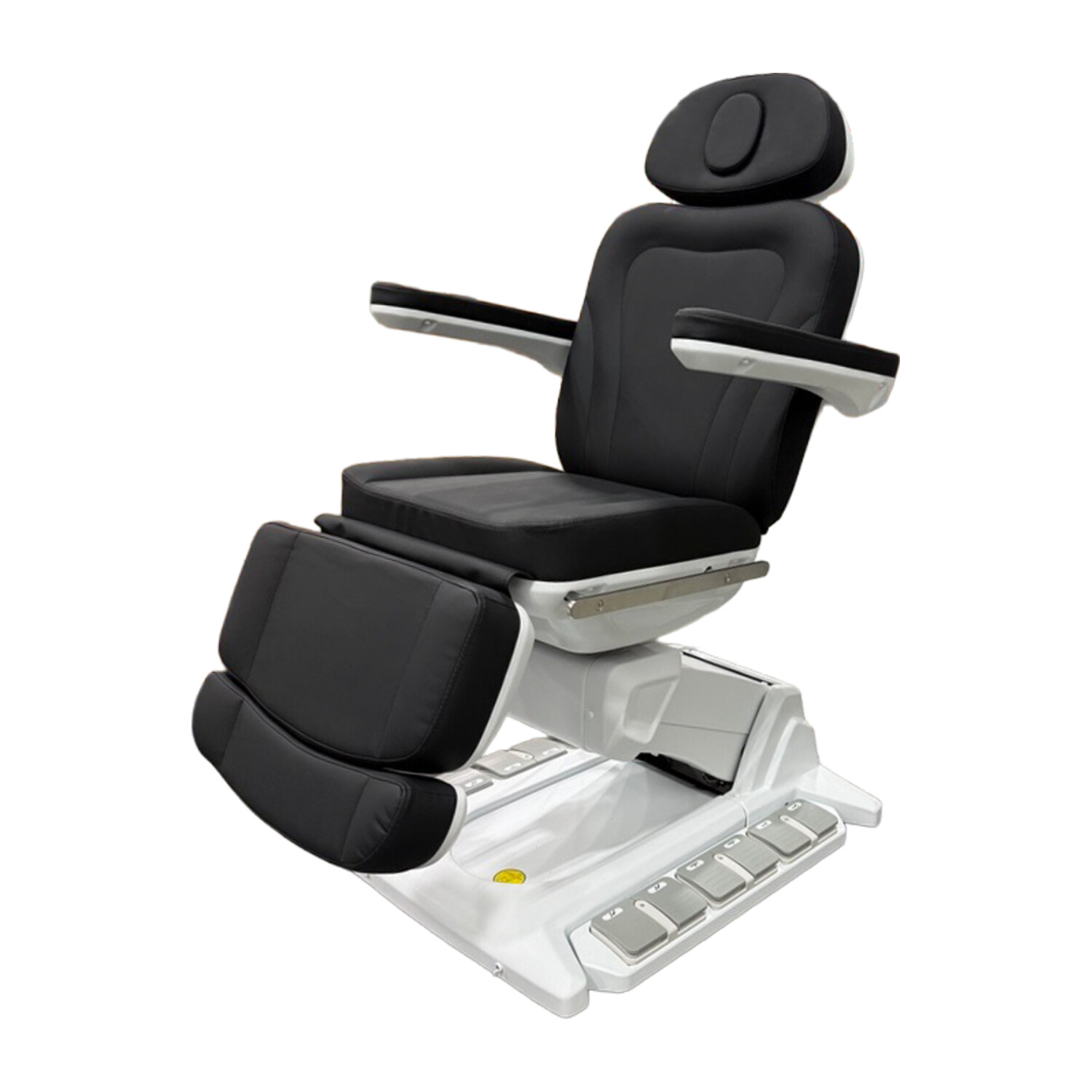

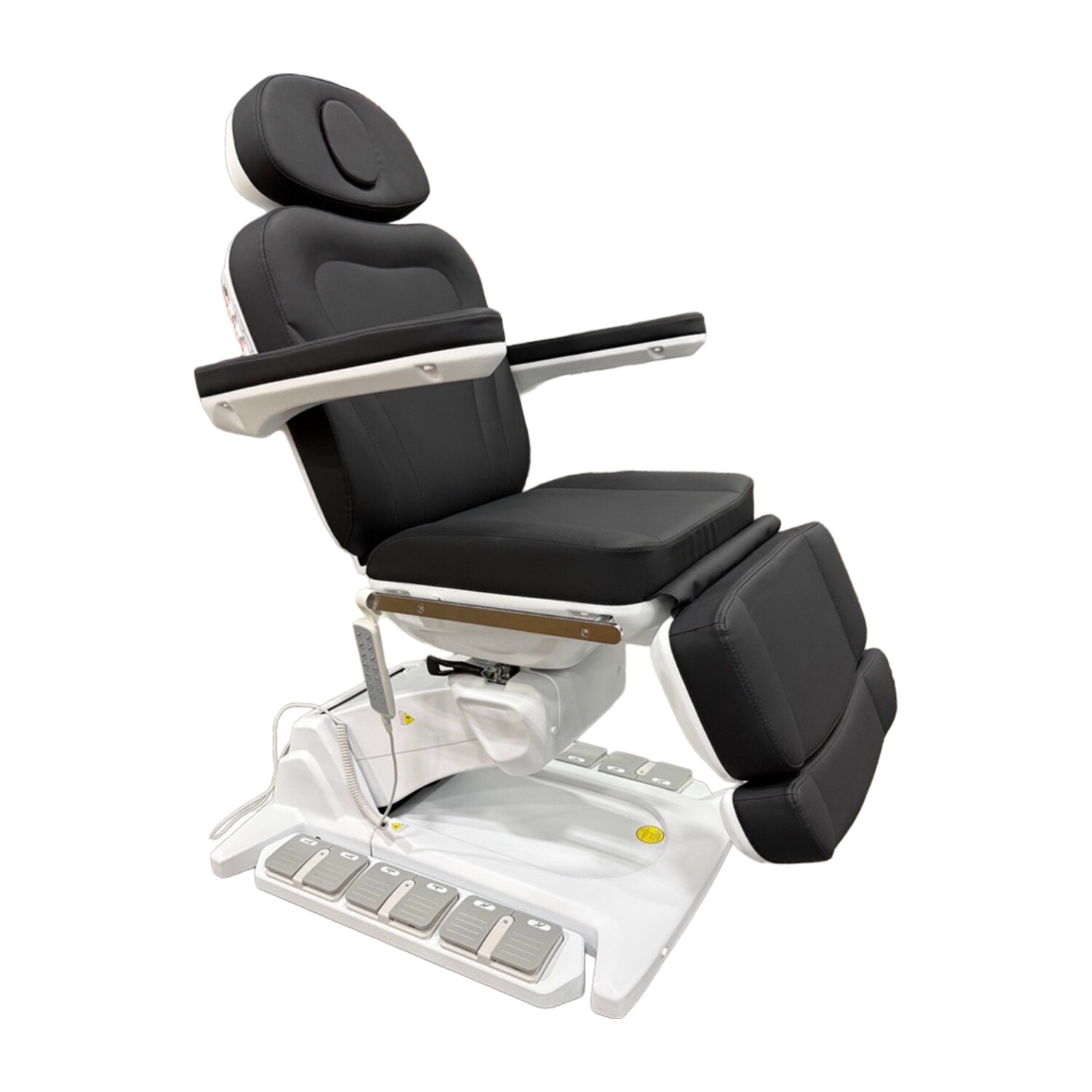

- Dual foot pedal controllers enable hands-free adjustments
- 240° manual rotation for complete procedure access
- Removable stirrup adjusts to multiple angles and positions
- RESET buttons on controller and backrest for quick upright return
- 25.2″ to 38.6″ height range accommodates staff and transfer needs
- Supports gynecological, urological, podiatric, and dermatological procedures
Specifications for DRE Avela Procedure Chair
Size
- Overall Dimensions: 74.4″ (L) × 33.5″ (W) × 25.2″–38.6″ (H)
Adjustments
- Height Adjustment Range: 25.2″ – 38.6″ (640–980 mm)
- Height Adjustment: Motor-driven
- Backrest Adjustment: Motor-driven
- Footrest Adjustment: Motor-driven
- Incline Adjustment: Motor-driven
Controls
- Motors: 4 (Height, Backrest, Footrest, Incline)
- Rotation Radius: 240° (manual)
- Hand Controller: 3-position memory, RESET & LOCK function
- Foot Pedal Controller: Dual-sided (both sides of chair)

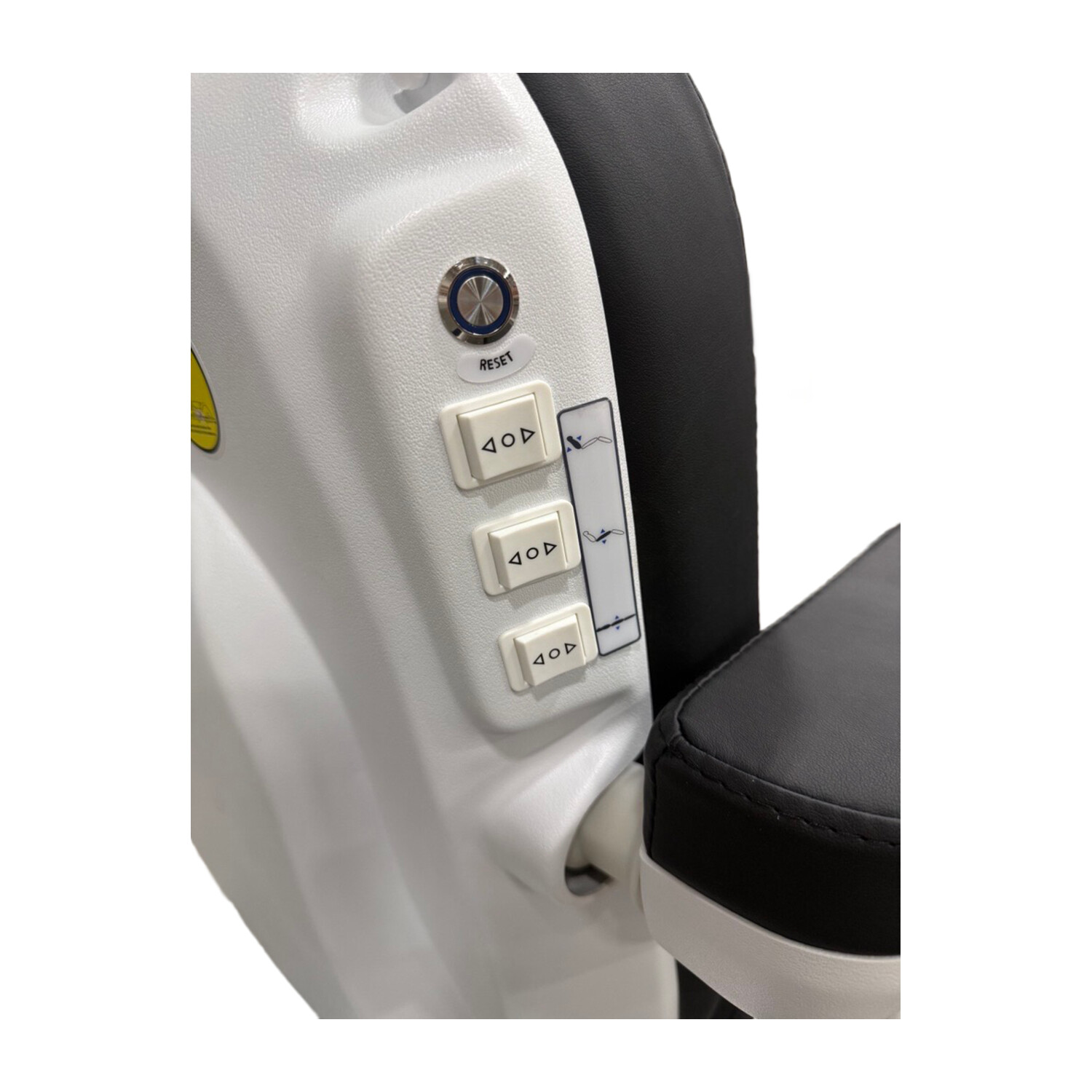

- RESET Button: Mounted on side of backrest
Accessories
- Stirrup: Removable and adjustable (up/down, multiple angles)
- Headrest: Adjustable
