Certified Refurbished

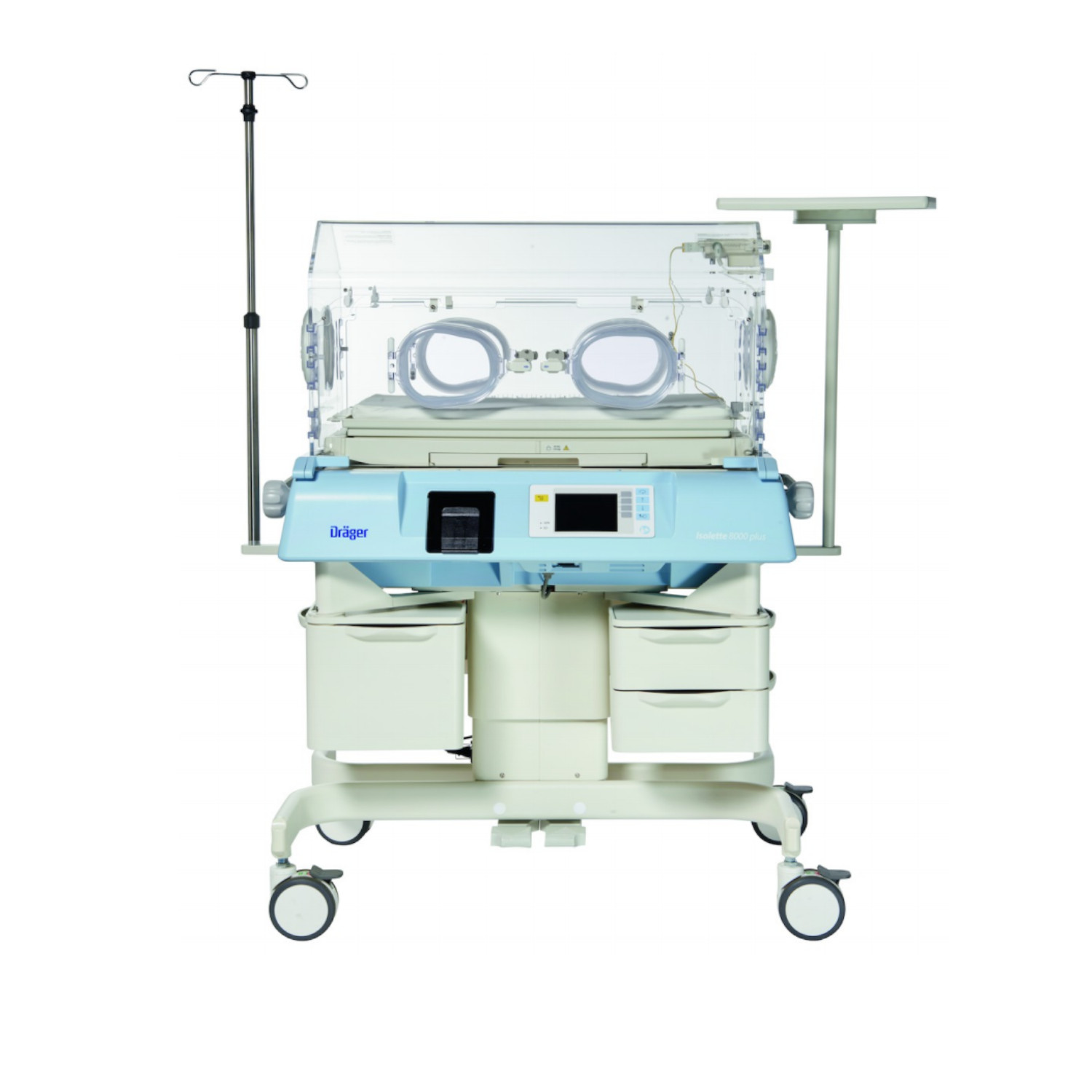

Drager 8000 IC Infant Incubator

The air curtain system keeps maintaining stable temperature and humidity even when you’re working through the hand ports.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The air curtain system keeps maintaining stable temperature and humidity even when you’re working through the hand ports. Unlike standard incubators that lose environmental control during access, the Drager 8000 IC delivers heated, humidified air over the front canopy to protect the thermal environment during routine care.

Automatic diagnostics run every 10 minutes during operation, catching issues before they become problems. The hierarchical alarm system lets you customize alerts for different staff levels, and the microprocessor tracks both temperature and humidity with continuous monitoring. Worth noting: the self-test sequence runs at startup to verify all systems are functioning properly.

Electric height adjustment saves your staff’s backs, and the rotating casters make positioning straightforward. The soft foam mattress has a film barrier to reduce conductive heat loss, while all patient-contact components come off easily for thorough disinfection between patients.

Key Features

  • Air curtain maintains thermal environment during hand port access
  • Microprocessor-controlled temperature and humidity regulation
  • Automatic diagnostics every 10 minutes with startup self-tests
  • Customizable hierarchical alarm system
  • Electric height adjustment with locking casters
  • Removable patient-contact parts for disinfection
  • Equipment rails and swivel storage cupboard

General

  • Dimensions (W x D): 37.8″ (960 mm) x 26.7″ (680 mm)
  • Height Adjustment: 52.2″ (1325 mm) – 60″ (1525 mm)
  • Weight: 196.2 lbs (89 kg)

Environmental

  • Operating Temperature: 68°F (20°C) to 86°F (30°C)
  • Operating Atmospheric Pressure: 900 to 1100 hPa
  • Operating Humidity: 15 to 95%
  • Storage Temperature: 32°F (0°C) to 158°F (70°C)

Operating Electrical

  • Power Source: 220 / 230 to 240 V AC, 50 / 60 Hz (as per order)
  • Heat Output (230 V, air): 400 W
  • Heat Output (230 V, water heater): 100 W
  • Current Consumption (230 V): 4.8 A
  • Fuse for Height Adjustment: 3.15 A IEC 127-2/III, 2 ea.

Performance

  • Warm Up Time: 35 min (from 68°F / 20°C to 86°F / 30°C)
  • Air Temperature Setting Range: 82.4°F (28°C) to 102.2°F (39°C)
  • Skin Temperature Setting Range: 95°F (35°C) to 98.6°F (37°C)
  • O2 Concentration Setting: 21 to 75 vol.%
  • Air Humidity Setting: 35 to 85% r.H.

Materials

  • Components: Plastic; Stainless Steel

Contents

  • Size Options: 0; 2; 3; 4; newborn; infant

Illumination

  • Type: Conventional; Fiber Optic

Intended Use

  • Settings: NICU and neonatal care environments
