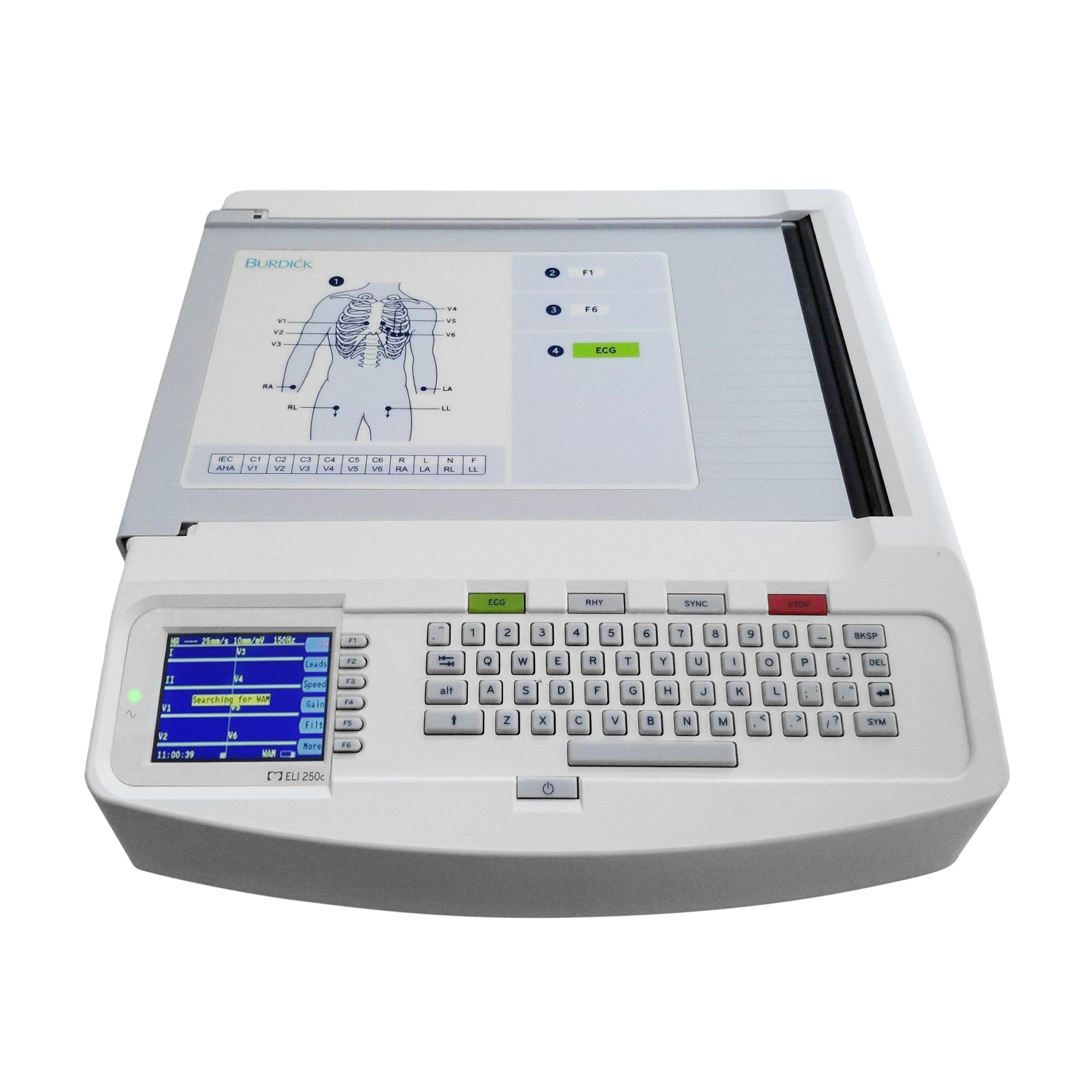

Burdick / Mortara ELI 250c EKG Machine

The ELI 250c automatically identifies and displays the best 10 seconds of ECG data from your acquisition, eliminating the need to repeat recordings due to.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The ELI 250c automatically identifies and displays the best 10 seconds of ECG data from your acquisition, eliminating the need to repeat recordings due to artifact or patient movement. That’s a significant time-saver in busy clinical environments where getting clean tracings on the first try matters.

The high-resolution color display shows lead reversals and lead failures in real-time, so you’ll catch connection issues before they compromise your recording. The wireless acquisition module option gives you flexibility for bedside use without dealing with tangled cables, while the 1,000 samples per second rate captures pacemaker spikes that lower-resolution systems might miss.

Worth noting: the remote control handles acquisition and rhythm printing from wherever you’re standing, which is practical when you’re working around patients or equipment. The backlit display stays readable in various lighting conditions.

Key Features

  • Best 10 automatic selection displays cleanest 10 seconds of ECG data
  • Real-time lead reversal and lead-fail indicators on color display
  • Wireless acquisition module option for cable-free operation
  • 1,000 s/sec sampling rate with pacemaker spike detection
  • Remote control for acquisition and rhythm printing
  • High-resolution backlit color LCD (320 x 240)

Contents

  • Instrument Type: 12-lead electrocardiograph
  • Included Modules: WAM wireless acquisition module or AM12 acquisition module (options)

Compatibility

  • Standard Leads Acquired: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6

Illumination

  • Display: Backlit 1/4 VGA color LCD (320 x 240)

Digital Sampling Rate

  • Recording and Analysis: 1,000 s/sec/channel
  • Pacemaker Spike Detection: 40,000 s/sec/channel

Printer

  • Paper: Perforated Z-fold thermal paper, A4 or 8.5 x 11″ wide, 250 sheets
  • Printer Type: Computer-controlled dot array
  • Print Resolution: 1 dot/ms horizontal, 8 dots/mm vertical
  • Report Print Formats: 3+1, 3+3, 6, 6+6, or 12 channel
  • Rhythm Print Formats: 3, 6, or 12 channel (configurable lead groups)

Filters and Frequency Response

  • Frequency Response: 0.05 to 300 Hz
  • Filters: Baseline filter; AC interference filter 50/60 Hz; low-pass filters 40 Hz, 150 Hz, or 300 Hz

A/D Conversion

  • Resolution: 20 bits (1.17 microvolt LSB)

Input and Safety

  • Patient Leakage Current: Meets or exceeds the requirements of ANSI/AAMI ES1
  • Common Mode Rejection / ECG Standard: Meets or exceeds the requirements of ANSI/AAMI EC11
  • Device Classification: Class I, Type CF defibrillation-proof applied parts

Storage

  • Internal Storage: Up to 40 ECGs (optional expansion up to 200 ECGs stated in specifications)

Physical

  • Weight: 11.25 lbs (5.1 kg) including battery (without paper)
  • Dimensions: 15.5 x 17 x 4 in (39.4 x 43.2 x 10.2 cm)

Power

  • Power Requirements: Universal AC power supply 100-240 VAC, 50/60 Hz; 110 VA; internal rechargeable battery

Optional Functions

  • Interpretation Algorithm: VERITAS resting ECG interpretation algorithm with age and gender specific criteria
