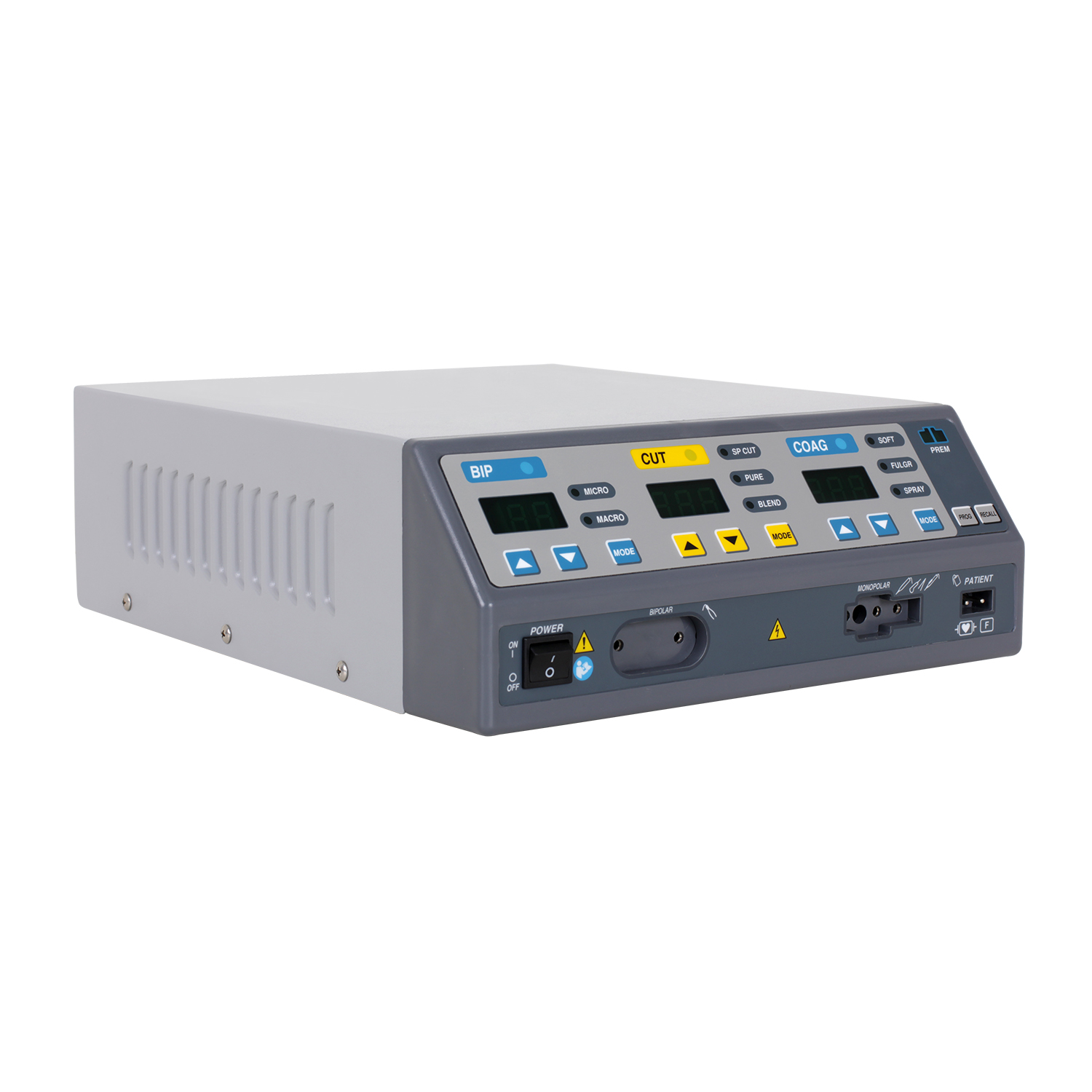

DRE Citadel 180 Electrosurgical Unit (ESU)

Citadel 180 ESU features tissue feedback technology for automatic power adjustment. 180-watt monopolar/bipolar with patient electrode monitoring.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The Citadel 180 delivers tissue feedback technology that automatically adjusts power output based on real-time impedance changes, reducing thermal damage and improving cut quality across different tissue types. Unlike basic ESUs that operate at fixed settings, this unit continuously monitors and modifies delivery to match what you’re actually cutting.

Patient return electrode monitoring adds a safety layer that’s worth noting for risk management, automatically detecting poor pad contact or detachment before burns occur. The self-diagnostic protocols run checks on both the unit and connected accessories, catching performance issues before they affect procedures. Bottom line: fewer surgical delays and better documentation for your biomedical team.

Waterproof foot pedals hold up in busy ORs, and the optional modules (argon beam, smoke evacuation, ultrasonic aspiration) let you build out capabilities without adding separate units to your equipment roster.

Key Features

  • 180-watt power with tissue feedback technology for automatic impedance adjustment
  • Monopolar and bipolar modes with spray coagulation and soft/desiccate options
  • Patient return electrode monitoring prevents electrode site burns
  • Self-diagnostic protocols verify unit and accessory function
  • Waterproof foot pedals for OR durability
  • Optional modules: argon beam, smoke evacuator, suction irrigation, ultrasonic aspirator

Dimensions

  • Length: 15 in (38 cm)
  • Width: 12 in (30.5 cm)
  • Height: 4.5 in (11.5 cm)

Weight

  • Weight: < 11 lbs (5 kg)

Power

  • Operating Voltage: 180-265 V AC
  • Max. Power Input: 1000 VA
  • Fuse: 4 A
  • UPS Backup: 1 KVA

Monopolar Modes

  • AutoCut: Pure Sine wave 390 kHz
  • Sp Cut: Programmable pulse or continuous output, 200 W at 300 Ω, CF 1.5
  • Pure: Continuous output, 200 W at 300 Ω, CF 1.5
  • Blend: Bursts repeating at 29 kHz 55% ON cycle, 120 W at 300 Ω, CF 2.5

Bipolar Modes

  • Pure: Pure Sine wave 390 kHz
  • Micro: Lower output voltage, 50 W at 100 Ω, CF 1.5
  • Macro: Higher output voltage, 50 W at 100 Ω, CF 1.5

Monopolar Coagulation

  • Waveform: Damped Sine wave 460 kHz
  • Soft: Repetition Frequency 62 kHz, 80 W at 500 Ω, CF 5.0
  • Fulgurate: Repetition Frequency 34 kHz, 80 W at 500 Ω, CF 7.0
  • Spray: Randomized Repetition Frequency 34 kHz < f < 50 kHz, 80 W at 500 Ω, CF 8.0

Leakage Currents

  • RF Leakage Current: Monopolar < 150 mA rms, Bipolar < 60 mA rms
  • Low Frequency Leakage Currents: Normal polarity, intact ground < 10 μA; Normal polarity, ground open < 50 μA

Feedback System

  • Control: 3 Microprocessor Controlled 6SENSE Technology
  • Sampling Rate: ~4000 sense/second
  • Maximum Output Power Deviation: < 15% or 5 watts, whichever is greater
  • Measuring Frequency: 85 kHz ± 10 kHz
  • Measuring Current: < 10 μA
  • Acceptable Resistance Range: Dual Area PREM Patient Return Electrode 10-35 Ω; Single Area Patient Return Electrode: < 10 Ω

Contents

  • Optional Accessories: Bipolar footswitch, Monopolar footswitch, ESU pens and pencils, Grounding pads

Intended Use

  • Suitable specialties/settings: Operating Room, Ambulatory Surgery Center, Plastic Surgery, Endoscopy, Laparoscopy, Gynecology, Dermatology, ENT, Ophthalmology, Urology
