Certified Refurbished

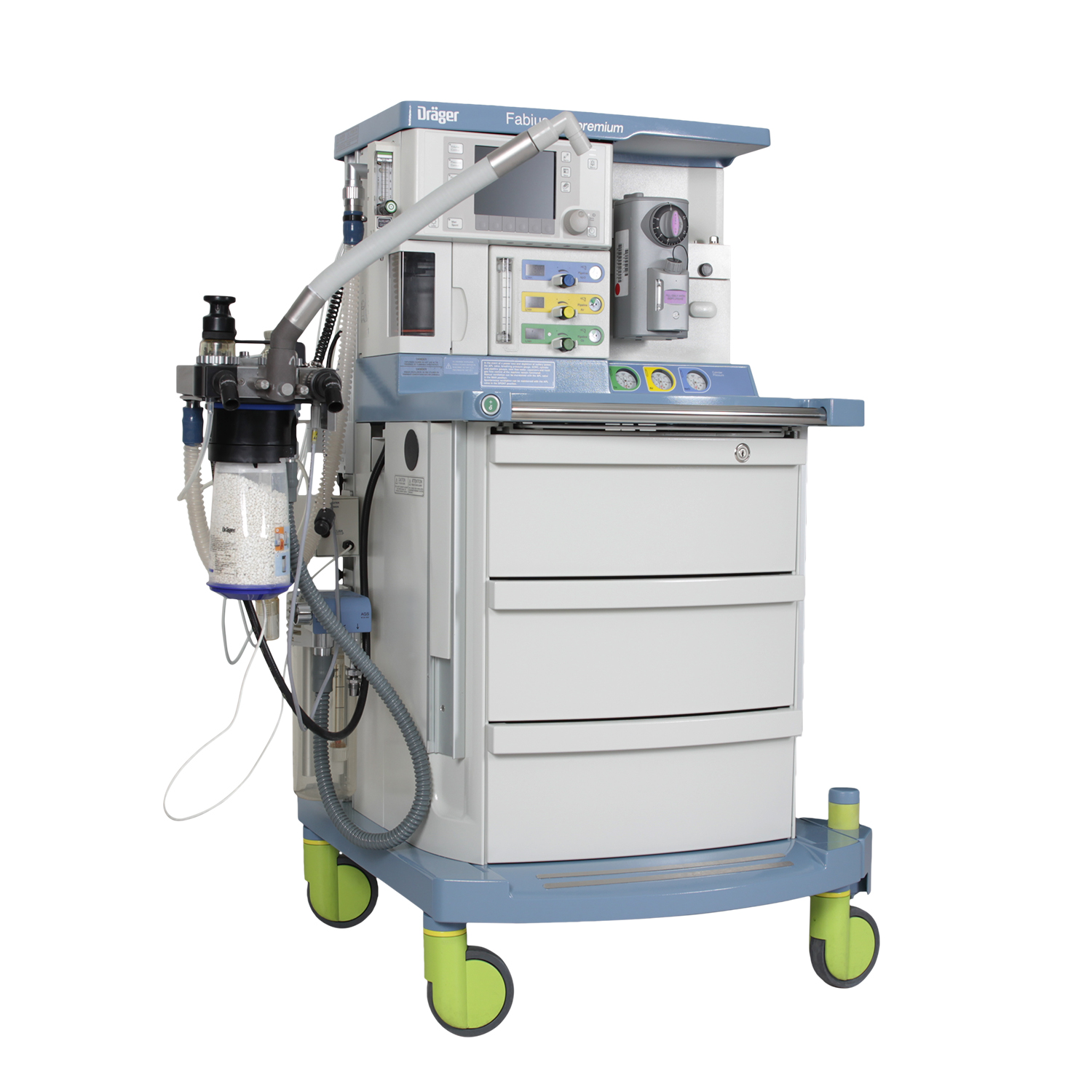

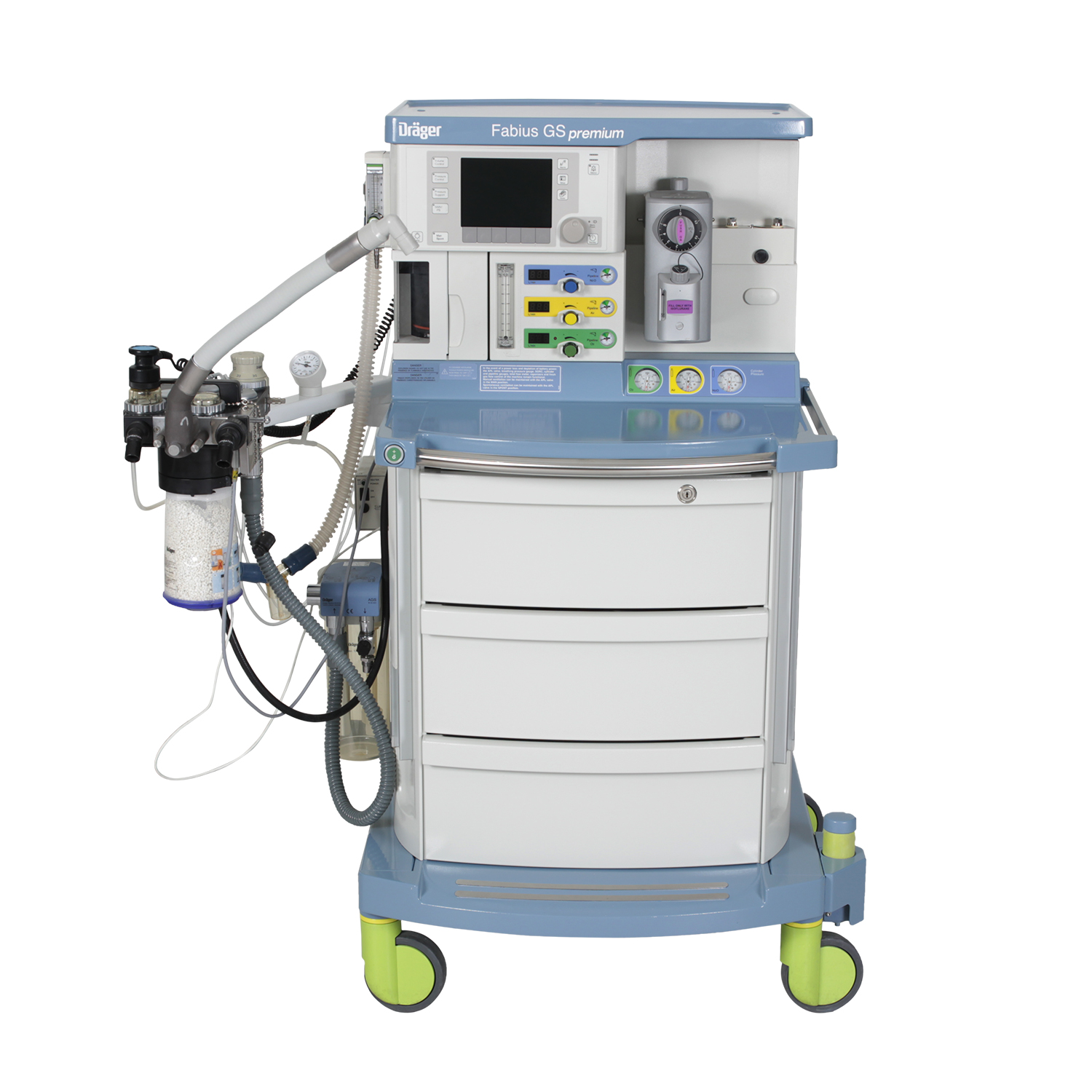

Drager Fabius GS Premium Anesthesia Machine

The E-vent piston ventilator runs entirely on electricity, which means you won’t burn through your oxygen supply for drive gas like pneumatic ventilators do.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The E-vent piston ventilator runs entirely on electricity, which means you won’t burn through your oxygen supply for drive gas like pneumatic ventilators do. That’s particularly useful during long cases or when oxygen reserves run low.

The integrated color monitor gives you fresh gas flow, ventilation parameters, and O2 data in one place, with export capability for your records. The vertical flow controls include electronic indicators that make flow adjustments more precise than mechanical flowmeters.

Worth noting: the COSY breathing system detaches completely for cleaning, and the new trolley design includes a central brake that locks all wheels at once. The workspace lighting is built right in.

Key Features

  • E-vent piston ventilator requires no drive gas, runs on electricity only
  • Integrated high-contrast color monitor with data export for ventilation and gas parameters
  • Vertical flow controls with electronic fresh gas flow indicators
  • Removable COSY breathing system for thorough cleaning
  • Maneuverable trolley with central brake and additional storage
  • Built-in LED workplace illumination
  • Compatible with CLIC CO2 absorbers

General

  • Weight: 296 lbs (134.2 kg) (base unit without vaporizers or cylinders)
  • Dimensions: W 30 in × H 52 in × D 33 in
  • Power Supply: 100-240 VAC, 50/60 Hz, 2.3 A max
  • Battery: > 45 min (supports ventilator and monitor)

Ventilator

  • Type: E-vent, electronically controlled, electrically driven
  • Breathing Frequency: 4 to 60 bpm
  • Max. Minute Volume: 99 L/min
  • Tidal Volume: 20-1400 mL (Volume Control); 20-1100 mL (SIMV/PS)
  • Inspiratory Time (Tinsp): 0.3-4.0 sec
  • Inspiratory Pause (Tip: Ti): 0-50%
  • Inspiration/Expiration Ratio (Ti: Te): 4:1 to 1:4
  • Inspiratory Flow: 10-75 L/min (Volume and Pressure Control); 10-85 L/min (Pressure Support)
  • Inspiratory Pressure (Pinsp): PEEP + 5 to 65 cmH2O
  • Pressure Limiting (Pmax): 15-70 cmH2O
  • Pressure Support Level (ΔPPS): PEEP + 3 to 20 cmH2O
  • PEEP Range: 0-20 cmH2O
  • Min. Frequency for Apnea-Ventilation: 3-20 bpm and OFF
  • Trigger: 2-15 L/min

Gas & Flow

  • Total Fresh Gas Flow Meter: 0 to 10 L/min (calibrated with 50% O2 / 50% N2O)
  • Range of Fresh Gas Flow Indicators: 0.00 to 12.0 L/min
  • O2 Flush: at 87 psi (6 bar) max 75 L/min; at 41 psi (2.8 bar) min 25 L/min

Breathing System & Absorber

  • Volume of CO2 Absorber: 1.5 Liter (option: CLIC absorber)
  • Volume of Entire Compact Breathing System: 2.8 Liter + bag

Interfaces & Data

  • Vaporizer Mount: 2 and 3 position auto exclusion mount
  • Serial Interface: 1 × RS232 (standard), 1 × RS232 (option)
  • Protocols: Vitalink and Medibus
  • Data Available for Export: All fresh gas flow, ventilation and O2 data
