Certified Refurbished

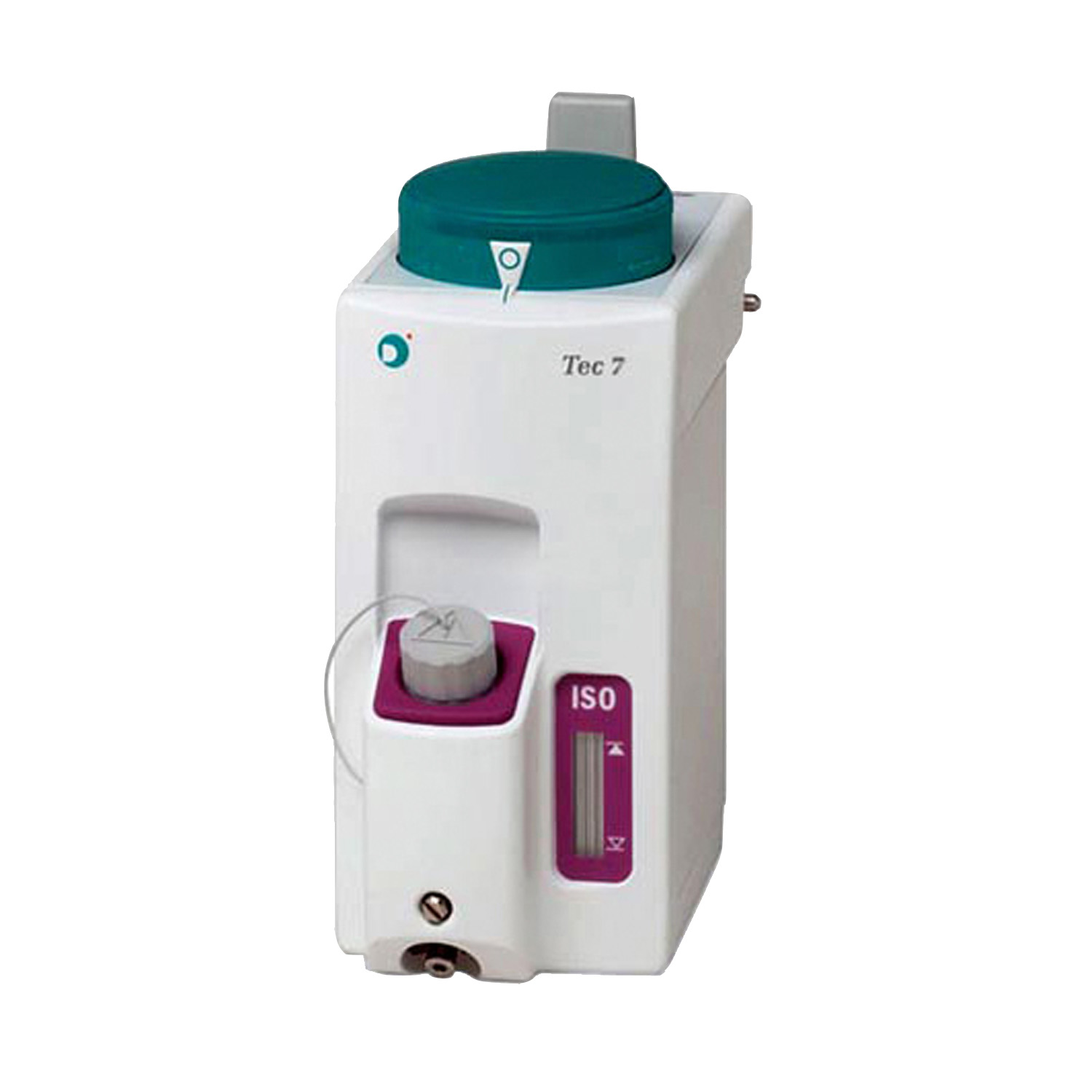

GE Datex Ohmeda Tec 7 Anesthetic Vaporizer

The GE Datex Ohmeda Tec 7 delivers consistent anesthetic agent concentrations across wide flow ranges, maintaining steady output whether you’re running.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The GE Datex Ohmeda Tec 7 delivers consistent anesthetic agent concentrations across wide flow ranges, maintaining steady output whether you’re running low-flow or high-flow cases. Unlike older vaporizer designs that drift at extreme flows, the Tec 7 holds its concentration settings reliably.

The large dial gives you fine control over concentration adjustments, with clear gradations that make precise titration straightforward during cases. The factory-service free design means fewer maintenance headaches for your biomed team.

Worth noting: the Easy-fil system reduces spillage during refilling, and sevoflurane units get the Quik-fil option for faster turnaround between cases.

Key Features

  • Available for isoflurane, sevoflurane, enflurane and halothane
  • Easy-fil filling system minimizes leak risk
  • Quik-fil option available for sevoflurane models
  • Large ergonomic dial with fine gradations
  • Factory-service free design
  • Consistent output across wide flow ranges

Capacity

  • Liquid Capacity (full, dry wicks): 300 ml (nominal)
  • Retained by wick system: 75 ml (nominal)
  • To fill from minimum to maximum mark: 5% Vaporizer: 170 ml (nominal)
  • To fill from minimum to maximum mark: 8% Vaporizer (Sevotec): 137 ml (nominal)

Weight

  • Empty: 15 lbs 6 oz (7 kg)

Dimensions

  • Depth: 8.25 in (210 mm)
  • Width: 4.375 in (110 mm)
  • Height (unlocked position): 9.875 in (250 mm)

Performance

  • Output Range: 200 mL/min to 15 L/min
  • Accuracy at 5 L/min O2, 21 ± 2 °C — Vaporizer 5%: ± 0.25% of delivered agent or ± 15% dial setting (whichever is greater)
  • Accuracy at 5 L/min O2, 21 ± 2 °C — Vaporizer 8%: ± 0.4% of delivered agent or ± 15% dial setting (whichever is greater)
  • Flow Resistance at 5 L/min O2, 21 ± 2 °C: 10 – 15 cm H2O with Vaporizer setting ON +0%

Operating Conditions

  • Operating Temperature Range: 18 °C to 35 °C (64 °F to 95 °F)
  • Storage Temperature Range: –40 °C to 65 °C (–40 °F to 149 °F)
  • Note: Protect the vaporizer packaging from condensation.

Materials

  • Components: Plastic

Illumination

  • Type: Conventional; Fiber Optic
