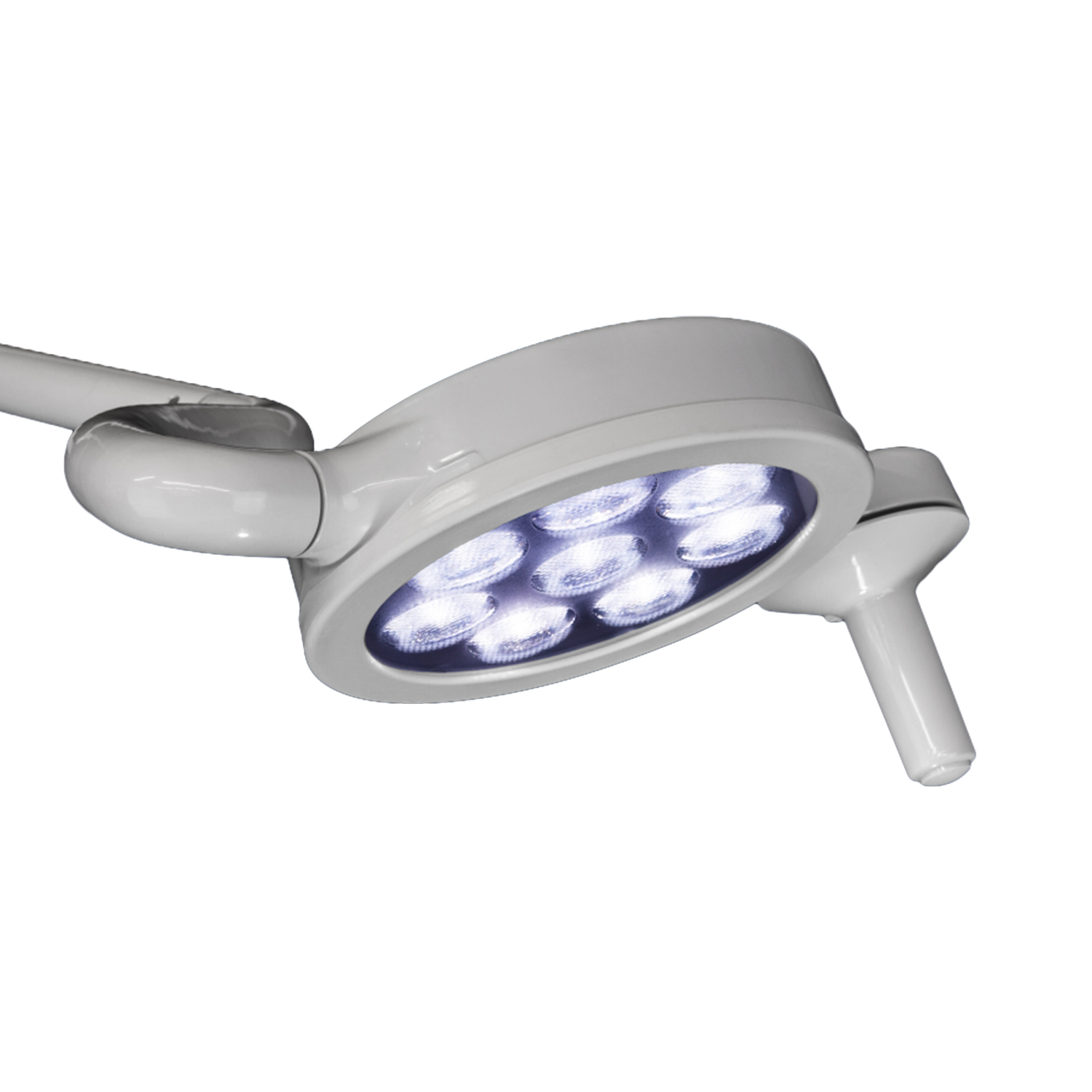

DRE Vista LED Examination Light

The Vista LED delivers 55,000 lux at 24 inches with virtually zero radiant heat, eliminating the hot spots that can make extended procedures uncomfortable.

New List Price $1.00
Your Savings
DRE Price $1.00

Our equipment specialists are here to help you with your questions.

Hours: Monday – Friday 8AM – 5PM ET

The Vista LED delivers 55,000 lux at 24 inches with virtually zero radiant heat, eliminating the hot spots that can make extended procedures uncomfortable for both clinicians and patients. Unlike traditional halogen exam lights that generate significant heat buildup, this LED array maintains consistent color temperature throughout dimming cycles.

Two-stage dimming gives you full intensity for detailed examinations and 50% output for patient comfort during consultations. The 97 CRI rating means you’re seeing true tissue colors, which is critical for accurate assessment. Worth noting: the 50,000-hour LED lifespan translates to roughly 25 years of typical clinical use.

The compact head design won’t crowd your workspace, and the smooth arm articulation lets you position light exactly where you need it. The short version: bright, cool, and stays out of your way.

Key Features

  • 55,000 lux output with virtually no radiant heat emission
  • 97 CRI for accurate color rendering in clinical assessments
  • Two-stage dimming: 100% and 50% intensity settings
  • 50,000-hour LED lifespan reduces maintenance requirements
  • Compact head with smooth articulating arm positioning

Optical Specifications

  • Number Of LEDs: 8
  • Output: 55,000 Lux @ 24 in (0.6 m)
  • CCT: 4,300° K
  • CRI: 97
  • Focal Length: 24 in (0.6 m)
  • Dimming Levels: 2
  • Dimming Percentages: 100%, 50%
  • Endo Mode: No
  • Light Field (d10): ≈Ø6.0 in (Ø152 mm)
  • Light Field (d50): ≈Ø3.5 in (Ø89 mm)
  • Irradiance: 71 W/m²

Electrical Specifications

  • Supply Circuit: 100 – 240 VAC, 50/60 Hz
  • Fuse Rating: 1.5 Amp/250 VAC
  • Power Supply: 65 W
  • Light Head Power Consumption: 16 W @ 24 VDC

Mechanical Specifications

  • Light Head Weight: 5.6 lbs (2.5 kg)
  • Light Head Dimensions: Ø9.2 in (234 mm) | 2.6 in (66 mm)
  • Arm Assembly Weight (Single): 48.3 lbs (22.0 kg)
  • Arm Assembly Weight (Dual): 77.1 lbs (35.0 kg)
  • Articulating Arm Vertical Movement: +15° Up, -60° Down
  • Articulating Arm Horizontal Movement: ≈540°
  • Articulating Arm/Yoke Interface: ≈540°
  • Yoke/Light Head Interface: ≈300°

Environment Specifications

  • Ambient/Operating Temperature: 41°F to 104°F (5°C to 40°C)
  • Storage Temperature: -4°F to 122°F (-20°C to 50°C)
  • Humidity: 10 – 90% relative humidity
  • Pressure: 100 kPA (@ <2k meters)

Compatibility

  • Intended Use: Exam room and clinical examination lighting
